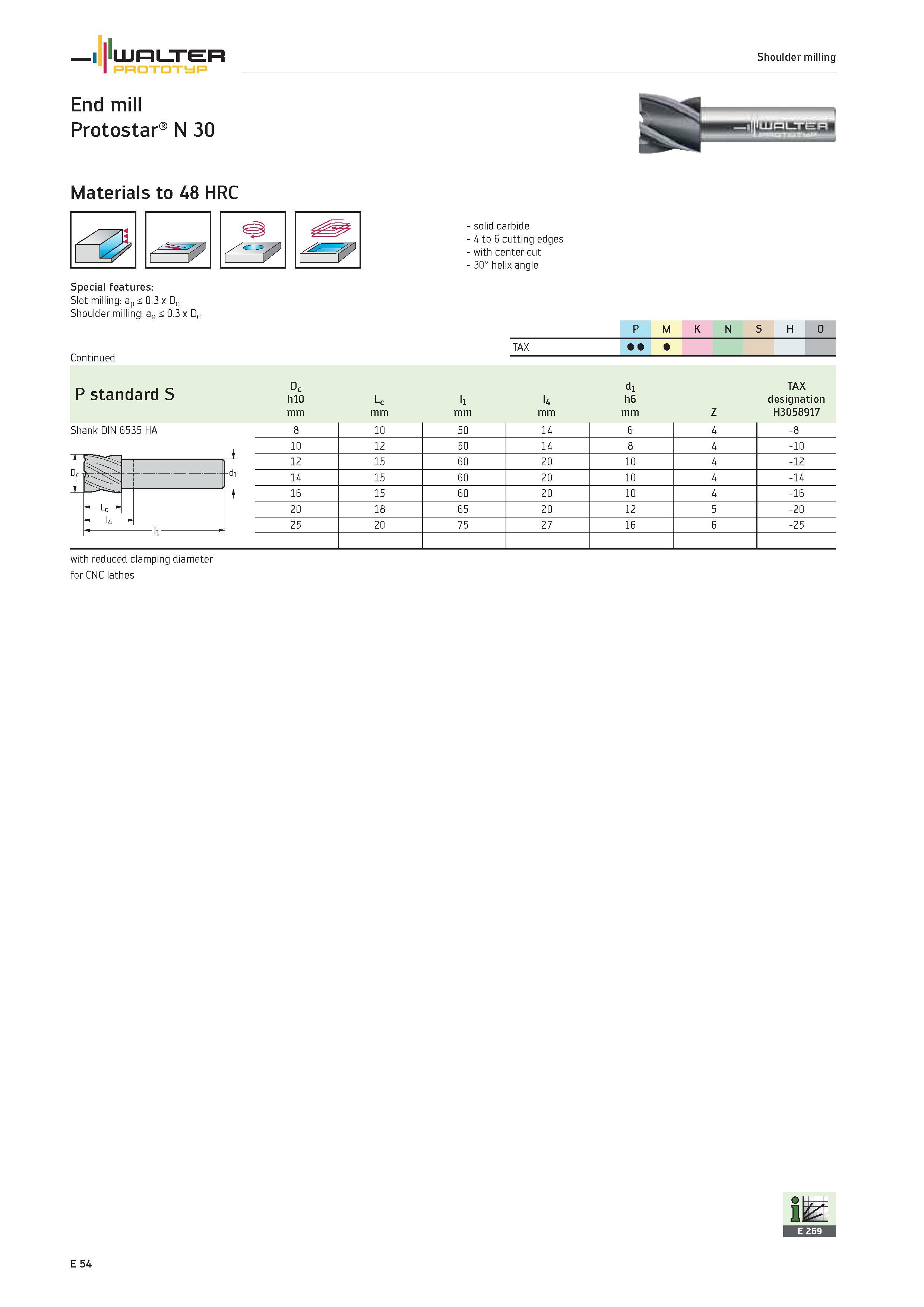

WALTER PROTOTYP Shoulder milling End mill Protostar N 30 Materials to 48 HRC Special features Slot milling ap < 0.3 x Dc Shoulder milling ae < 0.3 x Dc solid carbide 4 to 6 cutting edges with center cut 30° helix angle 1 P M K N S H O TAX 1 P standard S Dc h10 mm Lc mm l1 mm l4 mm d1 h6 mm Z TAX designation H3058917 Shank DIN 6535 HA 8 10 50 14 6 4 -8 10 12 50 14 8 4 -10 12 15 60 20 10 4 -12 Dc -di 14 15 60 20 10 4 -14 T 16 15 60 20 10 4 -16 Lc- 20 18 65 20 12 5 -20 14 25 20 75 27 16 6 -25 with reduced clamping diameter for CNC lathes E 54
