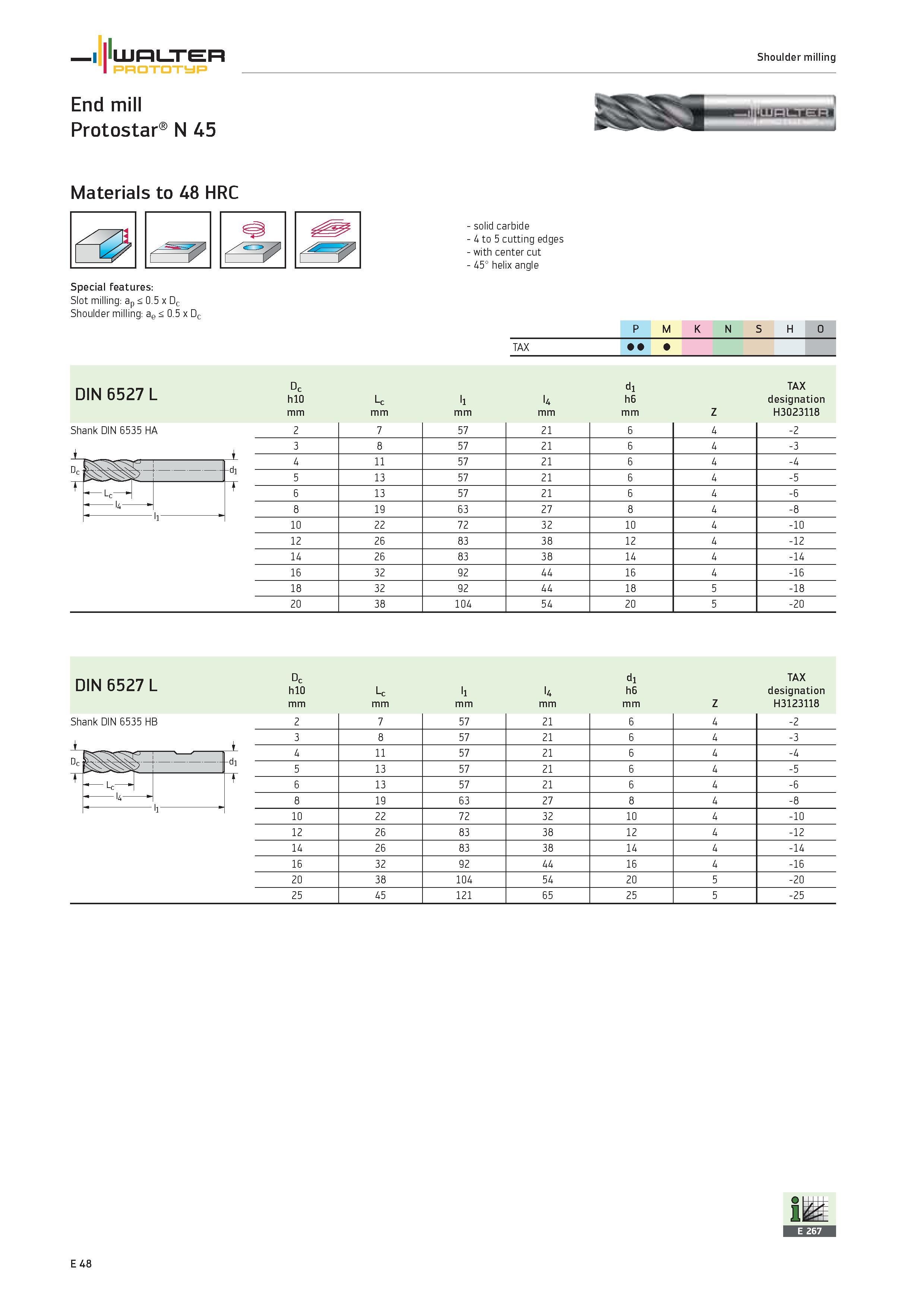

WALTER PROTOTYP Shoulder milling End mill Protostar N 45 Materials to 48 HRC Special features Slot milling ap < 0.5 x Dc Shoulder milling ae < 0.5 x Dc Shank DIN 6535 HA solid carbide 4 to 5 cutting edges with center cut 45° helix angle 1 P M K N S H O TAX 1 DIN 6527 L Dc h10 Lc li U di h6 TAX designation mm Z H3023118 2 7 57 21 6 4 -2 3 8 57 21 6 4 -3 4 11 57 21 6 4 -4 5 13 57 21 6 4 -5 6 13 57 21 6 4 -6 8 19 63 27 8 4 -8 10 22 72 32 10 4 -10 12 26 83 38 12 4 -12 14 26 83 38 14 4 -14 16 32 92 44 16 4 -16 18 32 92 44 18 5 -18 20 38 104 54 20 5 -20 DIN 6527 L Dc h10 Lc ll U di h6 TAX designation mm Z H3i23ii8 Shank DIN 6535 HB 2 7 57 21 6 4 -2 3 8 57 21 6 4 -3 4 11 57 21 6 4 -4 5 13 57 21 6 4 -5 6 13 57 21 6 4 -6 8 19 63 27 8 4 -8 10 22 72 32 10 4 -10 12 26 83 38 12 4 -12 14 26 83 38 14 4 -14 16 32 92 44 16 4 -16 20 38 104 54 20 5 -20 25 45 121 65 25 5 -25
