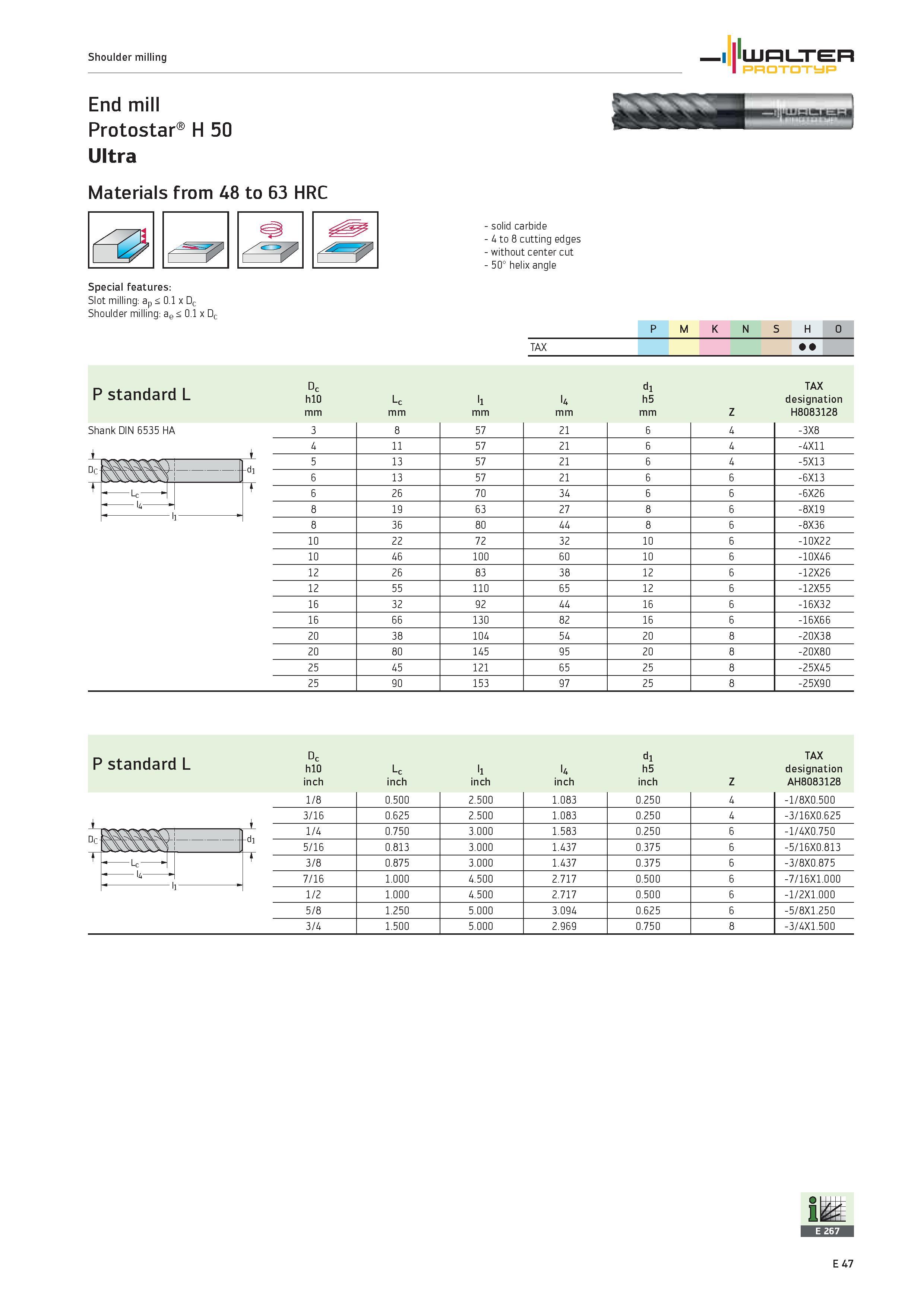

Shoulder milling WALTER PROTOTYP End mill Protostar H 50 Ultra Materials from 48 to 63 HRC solid carbide 4 to 8 cutting edges without center cut 50° helix angle Special features Slot milling ap < 0.1 x Dc Shoulder milling ae < 0.1 x Dc 1 P M K N S H 0 TAX P standard L h10 Lc li U h5 designat ion mm Z H8083128 Shank DIN 6535 HA 3 8 57 21 6 4 -3X8 i 4 11 57 21 6 4 -4X11 J r 13 57 21 6 4 -5X13 n 5 d1 6 13 57 21 6 6 -6X13 T 6 26 70 34 6 6 -6X26 8 19 63 27 8 6 -8X19 8 36 80 44 8 6 -8X36 10 22 72 32 10 6 -10X22 10 46 100 60 10 6 -10X46 12 26 83 38 12 6 -12X26 12 55 110 65 12 6 -12X55 16 32 92 44 16 6 -16X32 16 66 130 82 16 6 -16X66 20 38 104 54 20 8 -20X38 20 80 145 95 20 8 -20X80 25 45 121 65 25 8 -25X45 25 90 153 97 25 8 -25X90 P standard L c10 a Lc li U di h5 TAX designation inch inch inch inch inch Z AH8083128 1/8 0.500 2.500 1.083 0.250 4 -1/8X0.500 3/16 0.625 2.500 1.083 0.250 4 -3/16X0.625 1/4 0.750 3.000 1.583 0.250 6 -1/4X0.750 5/16 0.813 3.000 1.437 0.375 6 -5/16X0.813 3/8 0.875 3.000 1.437 0.375 6 -3/8X0.875 7/16 1.000 4.500 2.717 0.500 6 -7/16X1.000 1/2 1.000 4.500 2.717 0.500 6 -1/2X1.000 5/8 1.250 5.000 3.094 0.625 6 -5/8X1.250 3/4 1.500 5.000 2.969 0.750 8 -3/4X1.500
