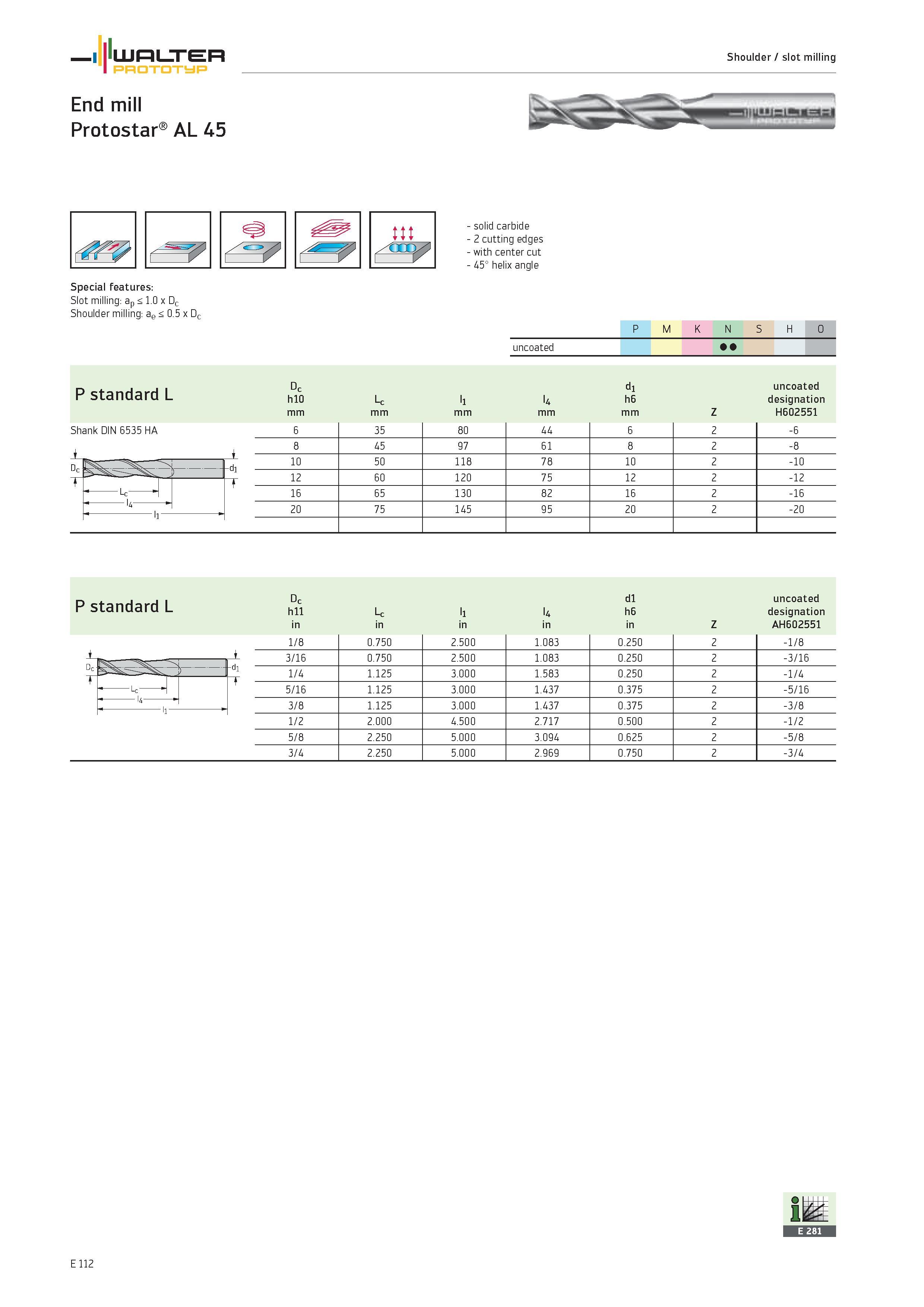

WALTER PROTOTYP Shoulder / slot milling End mill Protostar AL 45 Special features Slot milling ap < 1.0 x Dc Shoulder milling ae < 0.5 x Dc P standard L Shank DIN 6535 HA solid carbide 2 cutting edges with center cut 45° helix angle 1 P M K N S H O uncoated Dc hl0 mm Lc mm ll mm U mm dl h6 mm Z uncoated designation H60255l 6 35 80 44 6 2 -6 8 45 97 61 8 2 -8 10 50 118 78 10 2 -10 12 60 120 75 12 2 -12 16 65 130 82 16 2 -16 20 75 145 95 20 2 -20 P standard L Dc hll Lc ll l4 dl h6 uncoated designation in Z AH60255l 1/8 0.750 2.500 1.083 0.250 2 -1/8 3/16 0.750 2.500 1.083 0.250 2 -3/16 1/4 1.125 3.000 1.583 0.250 2 -1/4 5/16 1.125 3.000 1.437 0.375 2 -5/16 3/8 1.125 3.000 1.437 0.375 2 -3/8 1/2 2.000 4.500 2.717 0.500 2 -1/2 5/8 2.250 5.000 3.094 0.625 2 -5/8 3/4 2.250 5.000 2.969 0.750 2 -3/4
