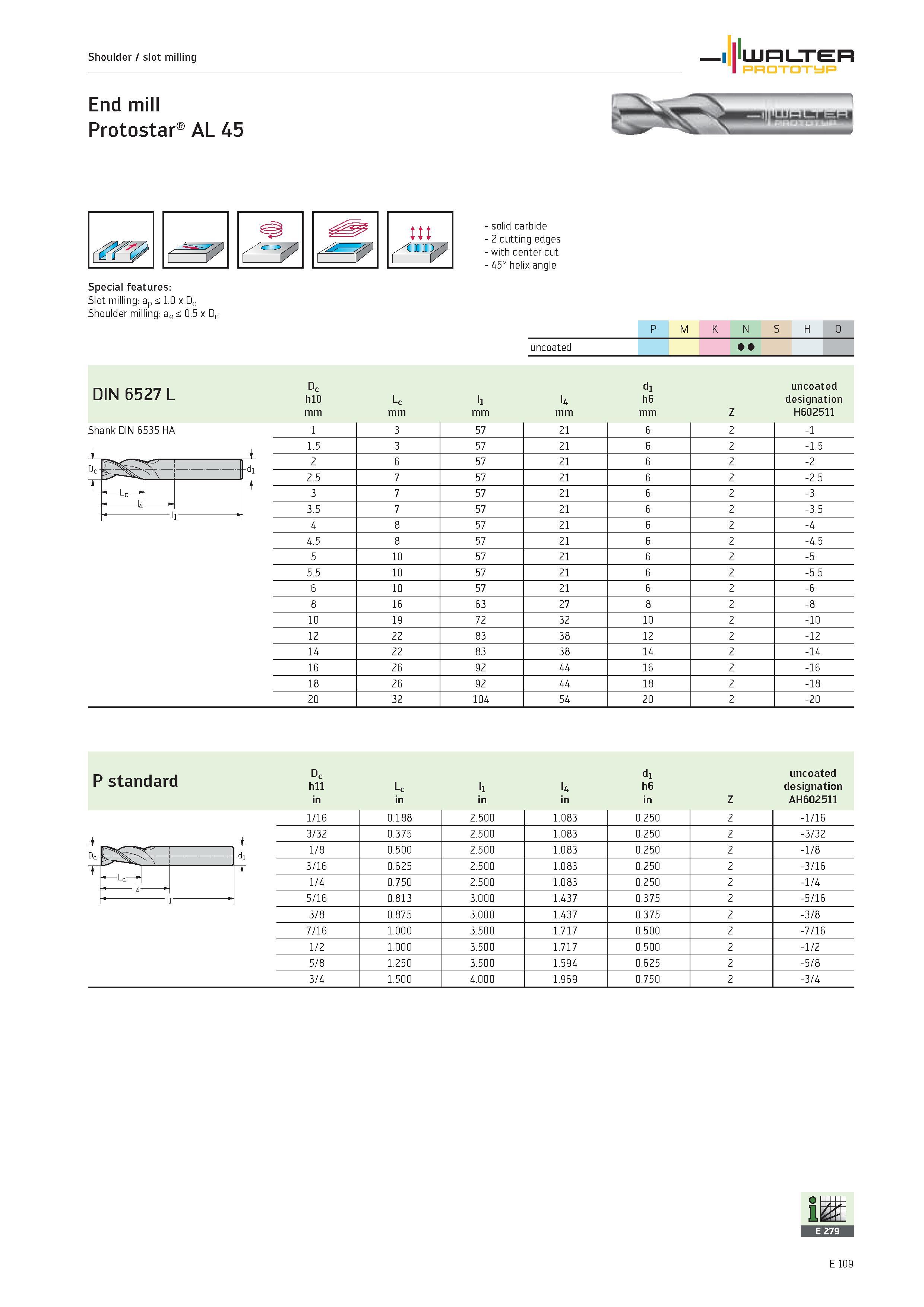

WALTER PROTOTYP Shoulder / slot milling End mill Protostar AL 45 Special features Slot milling ap < 1.0 x Dc Shoulder milling ae < 0.5 x Dc Shank DIN 6535 HA in solid carbide 2 cutting edges with center cut 45° helix angle 1 P M K N S H O uncoated DIN 6527 L Dc h10 Lc ll U dl h6 uncoated designation mm Z H602511 1 3 57 21 6 2 -1 1.5 3 57 21 6 2 -1.5 2 6 57 21 6 2 -2 2.5 7 57 21 6 2 -2.5 3 7 57 21 6 2 -3 3.5 7 57 21 6 2 -3.5 4 8 57 21 6 2 -4 4.5 8 57 21 6 2 -4.5 5 10 57 21 6 2 -5 5.5 10 57 21 6 2 -5.5 6 10 57 21 6 2 -6 8 16 63 27 8 2 -8 10 19 72 32 10 2 -10 12 22 83 38 12 2 -12 14 22 83 38 14 2 -14 16 26 92 44 16 2 -16 18 26 92 44 18 2 -18 20 32 104 54 20 2 -20 P standard Dc hll in Lc in ll in l4 in dl h6 in Z uncoated designation AH602511 1/16 0.188 2.500 1.083 0.250 2 -1/16 3/32 0.375 2.500 1.083 0.250 2 -3/32 1/8 0.500 2.500 1.083 0.250 2 -1/8 n T 3/16 0.625 2.500 1.083 0.250 2 -3/16 Lc l4 1/4 0.750 2.500 1.083 0.250 2 -1/4 5/16 0.813 3.000 1.437 0.375 2 -5/16 3/8 0.875 3.000 1.437 0.375 2 -3/8 7/16 1.000 3.500 1.717 0.500 2 -7/16 1/2 1.000 3.500 1.717 0.500 2 -1/2 5/8 1.250 3.500 1.594 0.625 2 -5/8 3/4 1.500 4.000 1.969 0.750 2 -3/4 E 109
