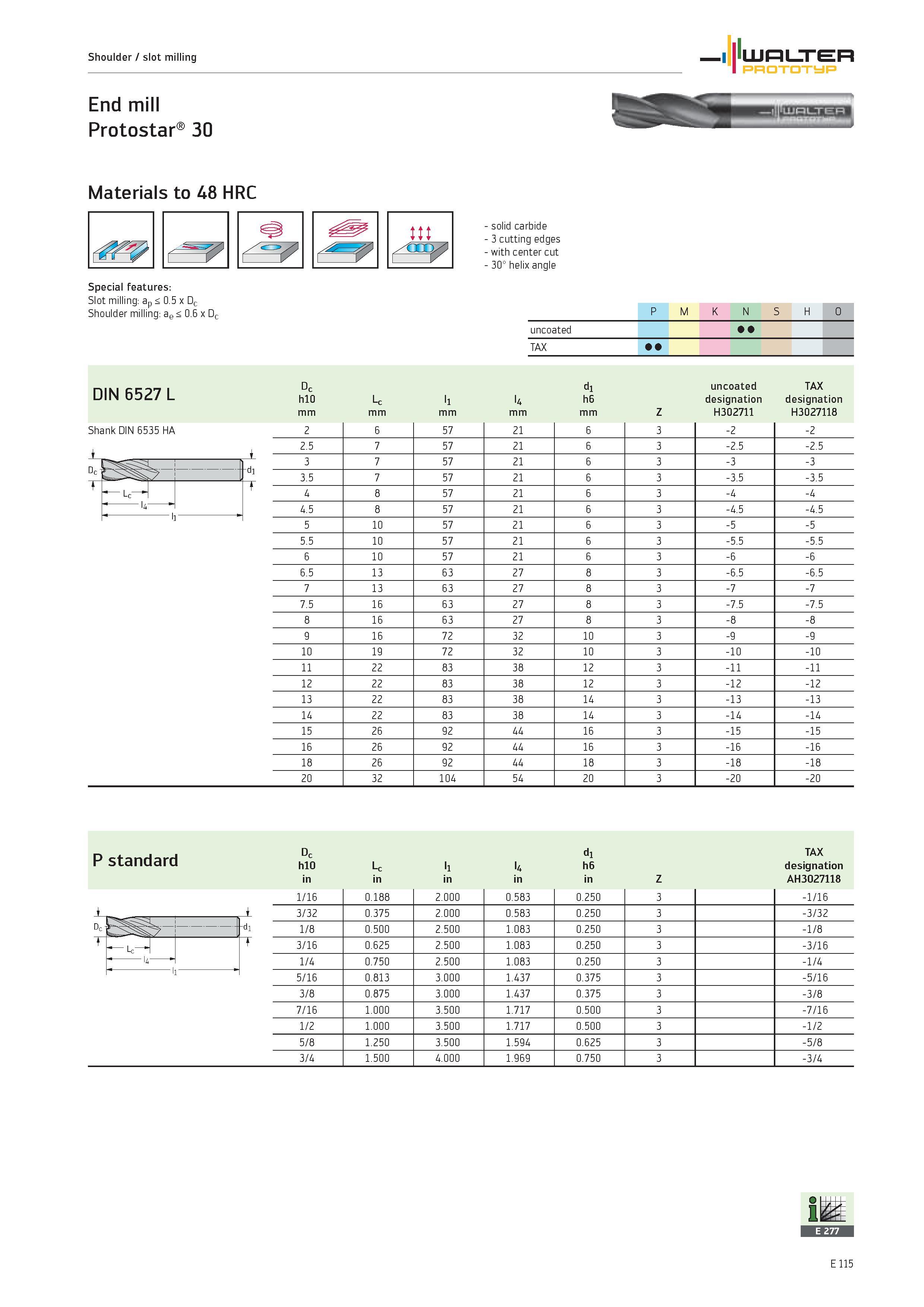

Shoulder / slot milling End mill Protostar 30 Materials to 48 HRC Special features Slot milling ap < 0.5 x Dc Shoulder milling ae < 0.6 x Dc UJnLTER PROTOTYP solid carbide 3 cutting edges with center cut 30° helix angle 1P M K N S H O uncoated TAX DIN 6527 L Dc hl0 mm c mm ll mm U mm dl h6 uncoated designation H3027ll TAX designation H3027ll8 Shank DIN 6535 HA 2 6 57 21 6 3 -2 -2 25 7 57 21 6 3 -2.5 -2.5 Dc 7 57 21 6 3 -3 -3 -T 3.5 7 57 21 6 3 -3.5 -3.5 Lc T 4 8 57 21 6 3 -4 -4 l4 4.5 8 57 21 6 3 -4.5 -4.5 5 10 57 21 6 3 -5 -5 5.5 10 57 21 6 3 -5.5 -5.5 6 10 57 21 6 3 -6 -6 6.5 13 63 27 8 3 -6.5 -6.5 7 13 63 27 8 3 -7 -7 7.5 16 63 27 8 3 -7.5 -7.5 8 16 63 27 8 3 -8 -8 9 16 72 32 10 3 -9 -9 10 19 72 32 10 3 -10 -10 11 22 83 38 12 3 -11 -11 12 22 83 38 12 3 -12 -12 13 22 83 38 14 3 -13 -13 14 22 83 38 14 3 -14 -14 15 26 92 44 16 3 -15 -15 16 26 92 44 16 3 -16 -16 18 26 92 44 18 3 -18 -18 20 32 104 54 20 3 -20 -20 Z mm P standard hl0 Lc ll l4 h6 designation in Z AH3027ll8 1/16 0.188 2.000 0.583 0.250 3 -1/16 3/32 0.375 2.000 0.583 0.250 3 -3/32 Dc di 1/8 0.500 2.500 1.083 0.250 3 -1/8 Lc f 3/16 0.625 2.500 1.083 0.250 3 -3/16 l4 1/4 0.750 2.500 1.083 0.250 3 -1/4 ll 5/16 0.813 3.000 1.437 0.375 3 -5/16 3/8 0.875 3.000 1.437 0.375 3 -3/8 7/16 1.000 3.500 1.717 0.500 3 -7/16 1/2 1.000 3.500 1.717 0.500 3 -1/2 5/8 1.250 3.500 1.594 0.625 3 -5/8 3/4 1.500 4.000 1.969 0.750 3 -3/4 E 115
