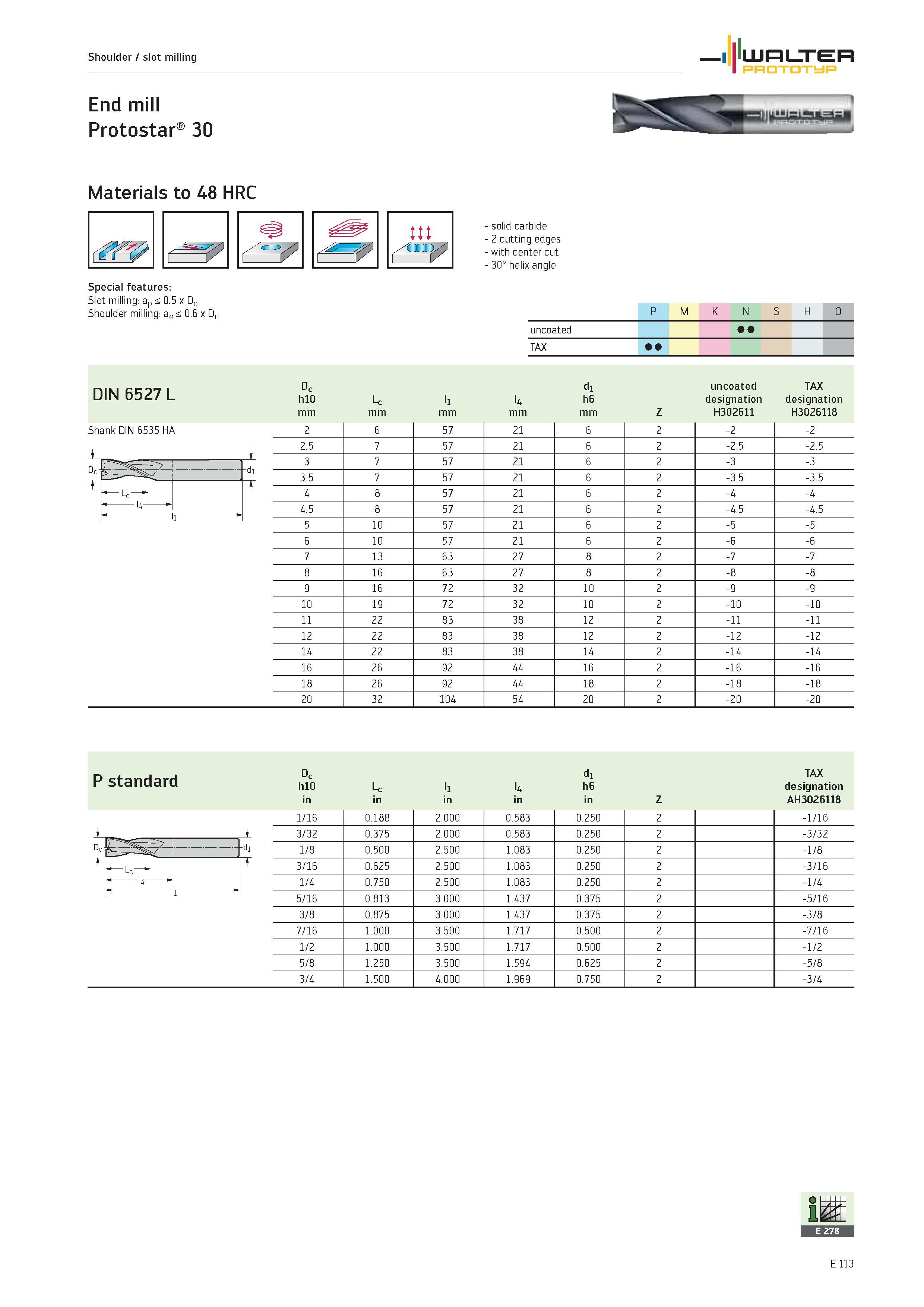

Shoulder / slot milling WALTER PROTOTYP End mill Protostar 30 solid carbide 2 cutting edges with center cut 30° helix angle Special features Slot milling ap < 0.5 x Dc Shoulder milling ae < 0.6 x Dc P M K N S H 0 uncoated TAX Dc d1 uncoated TAX h10 Lc l1 l4 h6 designation designation mm Z H302611 H3026118 2 6 57 21 6 2 -2 -2 2.5 7 57 21 6 2 -2.5 -2.5 3 7 57 21 6 2 -3 -3 3.5 7 57 21 6 2 -3.5 -3.5 4 8 57 21 6 2 -4 -4 4.5 8 57 21 6 2 -4.5 -4.5 5 10 57 21 6 2 -5 -5 6 10 57 21 6 2 -6 -6 7 13 63 27 8 2 -7 -7 8 16 63 27 8 2 -8 -8 9 16 72 32 10 2 -9 -9 10 19 72 32 10 2 -10 -10 11 22 83 38 12 2 -11 -11 12 22 83 38 12 2 -12 -12 14 22 83 38 14 2 -14 -14 16 26 92 44 16 2 -16 -16 18 26 92 44 18 2 -18 -18 20 32 104 54 20 2 -20 -20 DIN 6527 L Shank DIN 6535 HA t “ Lc 1 Materials to 48 HRC P standard Dc h10 Lc l1 l4 d1 h6 TAX designation in Z AH3026118 1/16 0.188 2.000 0.583 0.250 2 -1/16 3/32 0.375 2.000 0.583 0.250 2 -3/32 1/8 0.500 2.500 1.083 0.250 2 -1/8 3/16 0.625 2.500 1.083 0.250 2 -3/16 1/4 0.750 2.500 1.083 0.250 2 -1/4 5/16 0.813 3.000 1.437 0.375 2 -5/16 3/8 0.875 3.000 1.437 0.375 2 -3/8 7/16 1.000 3.500 1.717 0.500 2 -7/16 1/2 1.000 3.500 1.717 0.500 2 -1/2 5/8 1.250 3.500 1.594 0.625 2 -5/8 3/4 1.500 4.000 1.969 0.750 2 -3/4
