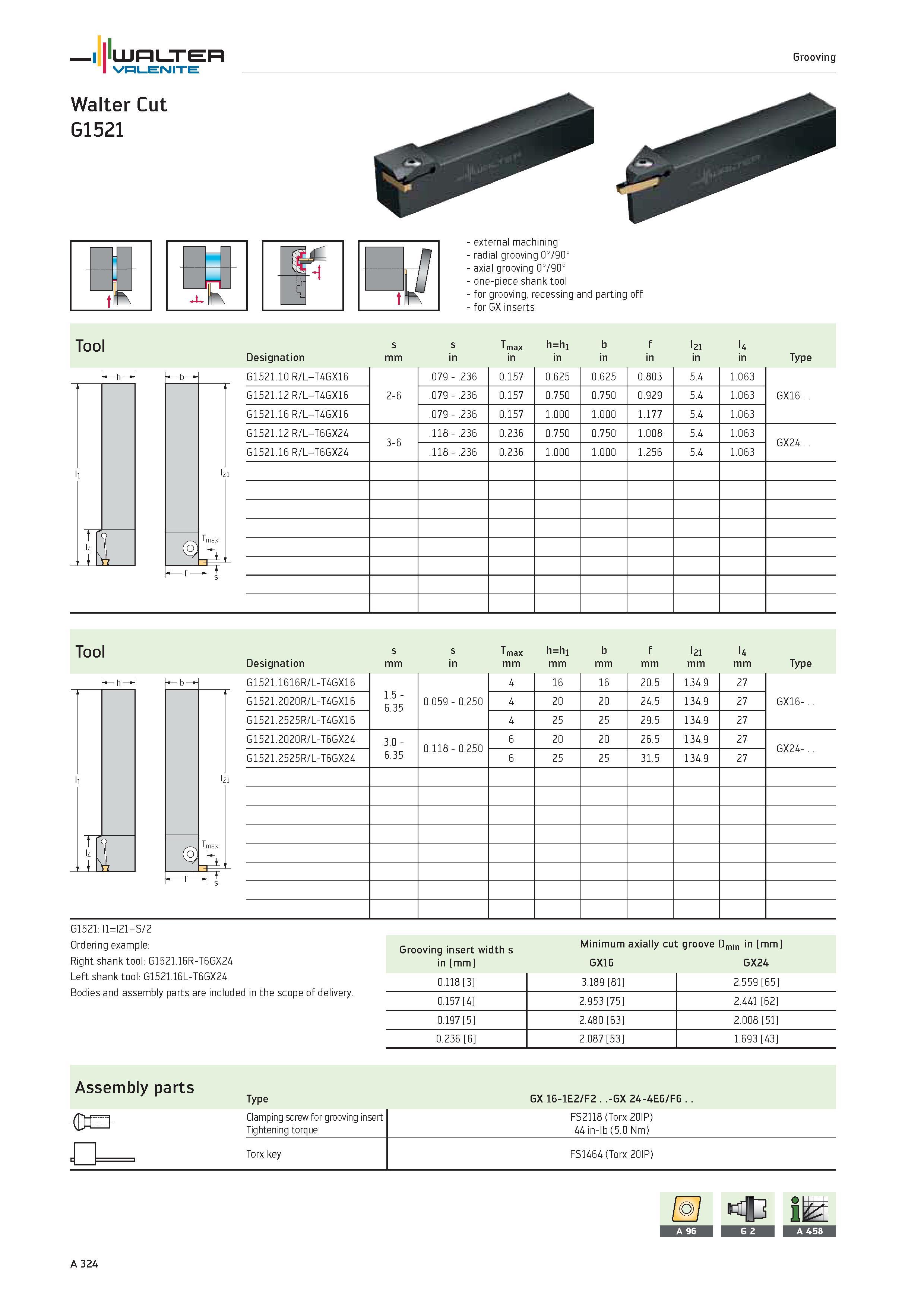

WALTER Valenite Grooving Walter Cut G1521 external machining radial grooving 0°/90° axial grooving 0°/90° one-piece shank tool for grooving, recessing and parting off for GX inserts Tool s s Tmax h h1 b f l21 l4 Designation mm in Type G1521.10 R/L-T4GX16 2-6 .079 .236 0.157 0.625 0.625 0.803 5.4 1.063 GX16.. G1521.12 R/L-T4GX16 .079 .236 0.157 0.750 0.750 0.929 5.4 1.063 G1521.16 R/L-T4GX16 .079 .236 0.157 1.000 1.000 1.177 5.4 1.063 G1521.12 R/L-T6GX24 3-6 .118 .236 0.236 0.750 0.750 1.008 5.4 1.063 GX24. G1521.16 R/L-T6GX24 .118 .236 0.236 1.000 1.000 1.256 5.4 1.063 h b T max Tool s s h1 h ax E T b f l21 l4 Designation mm in mm Type G1521.1616R/L-T4GX16 1.5 -6.35 0.059 0.250 4 16 16 20.5 134.9 27 GX16- G1521.2020R/L-T4GX16 4 20 20 24.5 134.9 27 G1521.2525R/L-T4GX16 4 25 25 29.5 134.9 27 G1521.2020R/L-T6GX24 3.0 -6.35 0.118 0.250 6 20 20 26.5 134.9 27 GX24- G1521.2525R/L-T6GX24 6 25 25 31.5 134.9 27 h b T G1521 l1=l21+S/2 Ordering example Right shank tool G1521.16R-T6GX24 Left shank tool G1521.16L-T6GX24 Bodies and assembly parts are included in the scope of delivery. Grooving insert width s Minimum axially cut groove Dmin in mm GX16 GX24 0.118 3 3.189 81 2.559 65 0.157 4 2.953 75 2.441 62 0.197 5 2.480 63 2.008 51 0.236 6 2.087 53 1.693 43 Assembly parts Type GX 16-1E2/F2 .-GX 24-4E6/F6 Co Clamping screw for grooving insert FS2118 (Torx 20IP) Tightening torque 44 in-lb (5.0 Nm) q Torx key FS1464 (Torx 20IP) A 324
