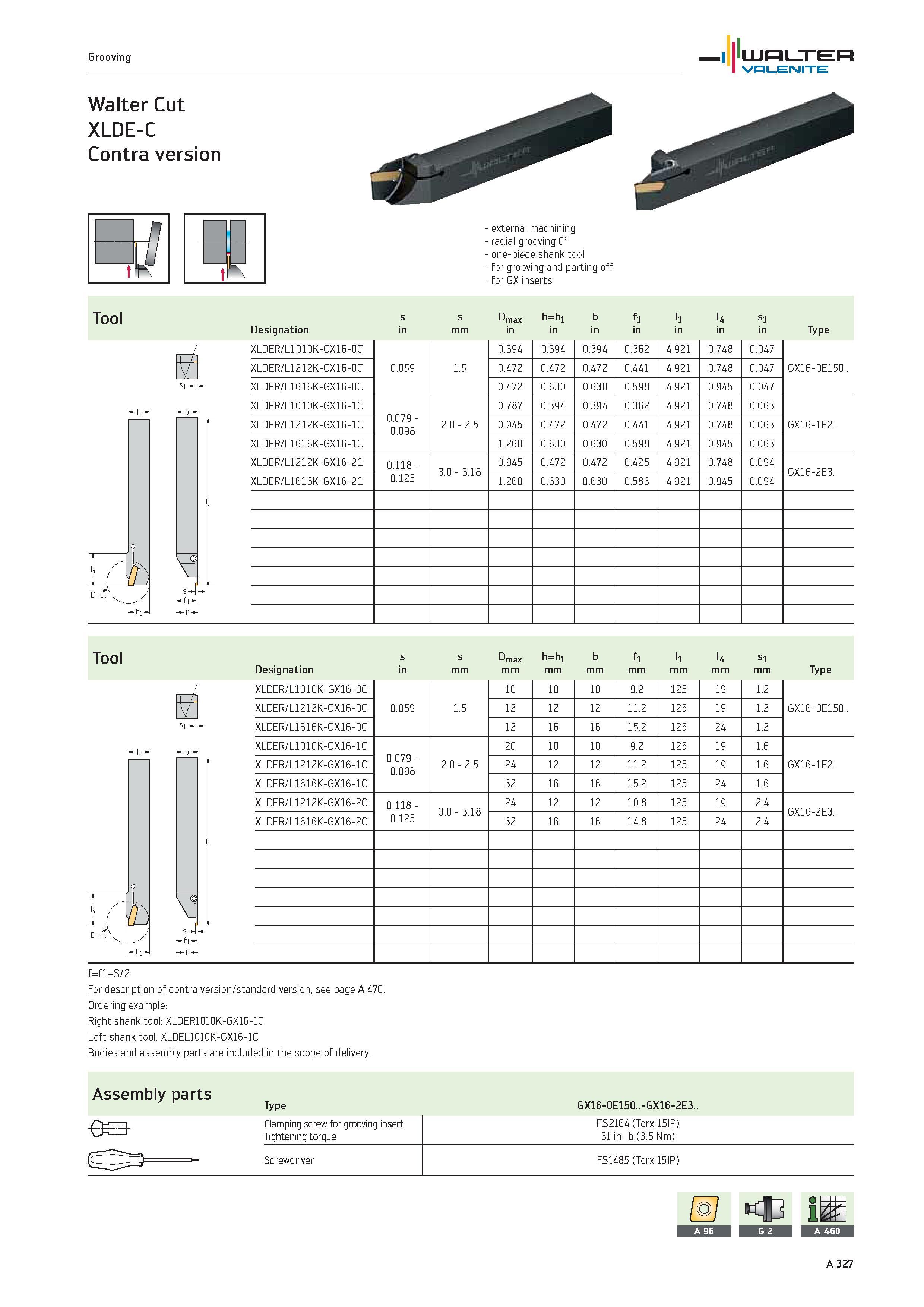

Grooving WALTER Valenite Walter Cut XLDE-C Contra version U-h external machining radial grooving 0° one-piece shank tool for grooving and parting off for GX inserts Tool s s Dmax h=h1 b f1 l1 l4 s1 Designation in mm in Type h h-b XLDER/L1010K-GX16-0C 0.059 1.5 0.394 0.394 0.394 0.362 4.921 0.748 0.047 GX16-0E150.. XLDER/L1212K-GX16-0C 0.472 0.472 0.472 0.441 4.921 0.748 0.047 XLDER/L1616K-GX16-0C 0.472 0.630 0.630 0.598 4.921 0.945 0.047 XLDER/L1010K-GX16-1C 0.079 -0.098 2.0 2.5 0.787 0.394 0.394 0.362 4.921 0.748 0.063 GX16-1E2.. XLDER/L1212K-GX16-1C 0.945 0.472 0.472 0.441 4.921 0.748 0.063 XLDER/L1616K-GX16-1C 1.260 0.630 0.630 0.598 4.921 0.945 0.063 XLDER/L1212K-GX16-2C 0.118 -0.125 3.0 3.18 0.945 0.472 0.472 0.425 4.921 0.748 0.094 GX16-2E3.. XLDER/L1616K-GX16-2C 1.260 0.630 0.630 0.583 4.921 0.945 0.094 Tool s s Dmax h=h1 b f1 l1 l4 s1 Designation in mm Type DmAx -h h l h-b XLDER/L1010K-GX16-0C 0.059 1.5 10 10 10 9.2 125 19 1.2 GX16-0E150.. XLDER/L1212K-GX16-0C 12 12 12 11.2 125 19 1.2 XLDER/L1616K-GX16-0C 12 16 16 15.2 125 24 1.2 XLDER/L1010K-GX16-1C 0.079 -0.098 2.0 2.5 20 10 10 9.2 125 19 1.6 GX16-1E2.. XLDER/L1212K-GX16-1C 24 12 12 11.2 125 19 1.6 XLDER/L1616K-GX16-1C 32 16 16 15.2 125 24 1.6 XLDER/L1212K-GX16-2C 0.118 -0.125 3.0 3.18 24 12 12 10.8 125 19 2.4 GX16-2E3.. XLDER/L1616K-GX16-2C 32 16 16 14.8 125 24 2.4 f=f1+S/2 For description of contra version/standard version, see page A 470. Ordering example Right shank tool XLDER1010K-GX16-1C Left shank tool XLDEL1010K-GX16-1C Bodies and assembly parts are included in the scope of delivery. Assembly parts Type GX16-0E150..-GX16-2E3.. Clamping screw for grooving insert Tightening torque FS2164 (Torx 15IP) 31 in-lb (3.5 Nm) Screwdriver FS1485 (Torx 15IP) O b n A 327 D
