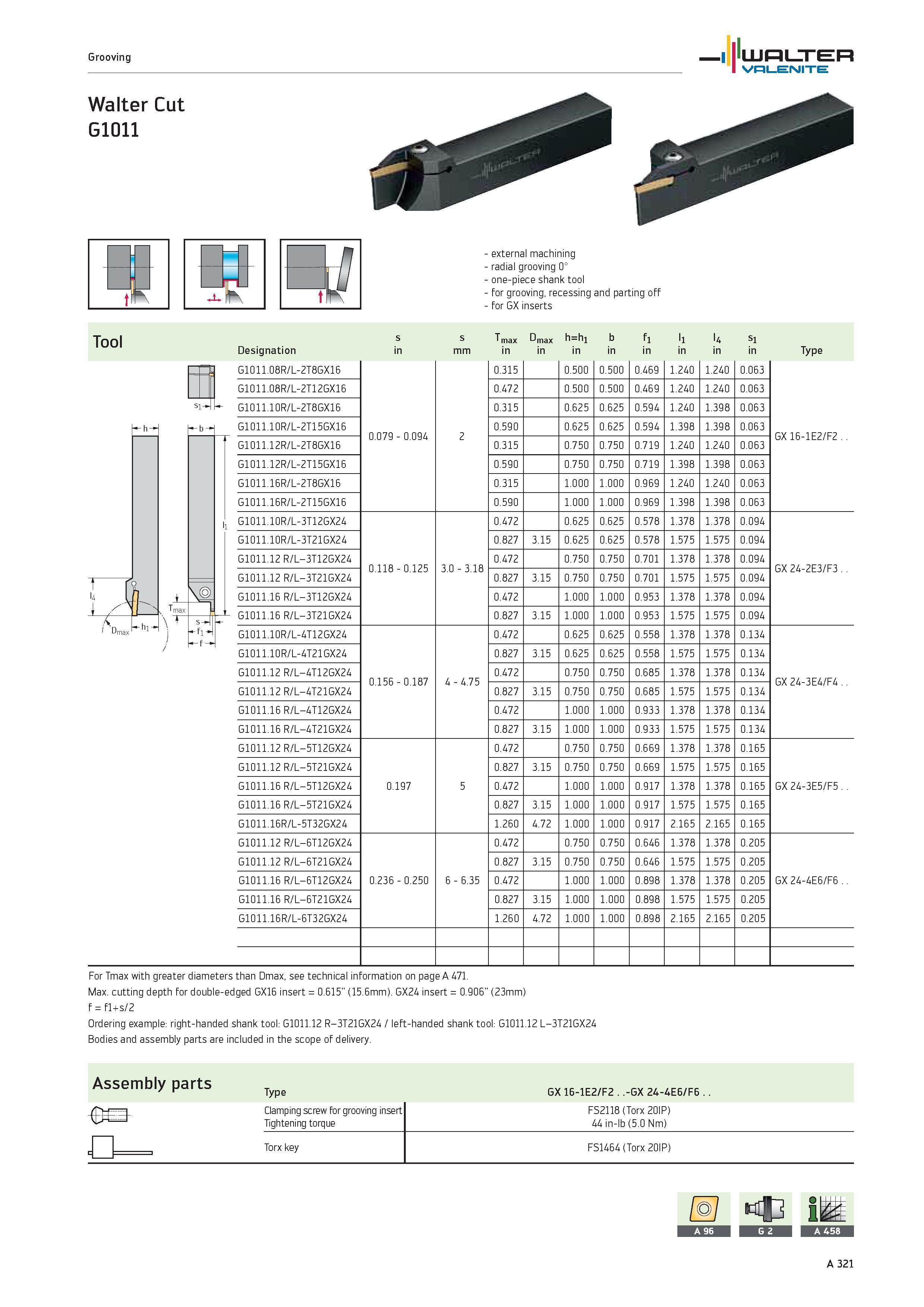

Grooving WALTER Valenite Walter Cut G1011 external machining radial grooving 0° one-piece shank tool for grooving, recessing and parting off for GX inserts Tool s s Tmax Dmax h h1 b f1 l1 l4 s1 Designation in mm in Type 1, Sl 1 \r s fl -f G1011.08R/L-2T8GX16 0.079 0.094 2 0.315 0.500 0.500 0.469 1.240 1.240 0.063 GX 16-1E2/F2.. G1011.08R/L-2T12GX16 0.472 0.500 0.500 0.469 1.240 1.240 0.063 G1011.10R/L-2T8GX16 0.315 0.625 0.625 0.594 1.240 1.398 0.063 G1011.10R/L-2T15GX16 0.590 0.625 0.625 0.594 1.398 1.398 0.063 G1011.12R/L-2T8GX16 0.315 0.750 0.750 0.719 1.240 1.240 0.063 G1011.12R/L-2T15GX16 0.590 0.750 0.750 0.719 1.398 1.398 0.063 G1011.16R/L-2T8GX16 0.315 1.000 1.000 0.969 1.240 1.240 0.063 G1011.16R/L-2T15GX16 0.590 1.000 1.000 0.969 1.398 1.398 0.063 G1011.10R/L-3T12GX24 0.118 0.125 3.0 3.18 0.472 0.625 0.625 0.578 1.378 1.378 0.094 GX 24-2E3/F3.. G1011.10R/L-3T21GX24 0.827 3.15 0.625 0.625 0.578 1.575 1.575 0.094 G1011.12 R/L-3T12GX24 0.472 0.750 0.750 0.701 1.378 1.378 0.094 G1011.12 R/L-3T21GX24 0.827 3.15 0.750 0.750 0.701 1.575 1.575 0.094 G1011.16 R/L-3T12GX24 0.472 1.000 1.000 0.953 1.378 1.378 0.094 G1011.16 R/L-3T21GX24 0.827 3.15 1.000 1.000 0.953 1.575 1.575 0.094 G1011.10R/L-4T12GX24 0.156 0.187 4 4.75 0.472 0.625 0.625 0.558 1.378 1.378 0.134 GX 24-3E4/F4 G1011.10R/L-4T21GX24 0.827 3.15 0.625 0.625 0.558 1.575 1.575 0.134 G1011.12 R/L-4T12GX24 0.472 0.750 0.750 0.685 1.378 1.378 0.134 G1011.12 R/L-4T21GX24 0.827 3.15 0.750 0.750 0.685 1.575 1.575 0.134 G1011.16 R/L-4T12GX24 0.472 1.000 1.000 0.933 1.378 1.378 0.134 G1011.16 R/L-4T21GX24 0.827 3.15 1.000 1.000 0.933 1.575 1.575 0.134 G1011.12 R/L-5T12GX24 0.197 5 0.472 0.750 0.750 0.669 1.378 1.378 0.165 GX 24-3E5/F5.. G1011.12 R/L-5T21GX24 0.827 3.15 0.750 0.750 0.669 1.575 1.575 0.165 G1011.16 R/L-5T12GX24 0.472 1.000 1.000 0.917 1.378 1.378 0.165 G1011.16 R/L-5T21GX24 0.827 3.15 1.000 1.000 0.917 1.575 1.575 0.165 G1011.16R/L-5T32GX24 1.260 4.72 1.000 1.000 0.917 2.165 2.165 0.165 G1011.12 R/L-6T12GX24 0.236 0.250 6 6.35 0.472 0.750 0.750 0.646 1.378 1.378 0.205 GX 24-4E6/F6 G1011.12 R/L-6T21GX24 0.827 3.15 0.750 0.750 0.646 1.575 1.575 0.205 G1011.16 R/L-6T12GX24 0.472 1.000 1.000 0.898 1.378 1.378 0.205 G1011.16 R/L-6T21GX24 0.827 3.15 1.000 1.000 0.898 1.575 1.575 0.205 G1011.16R/L-6T32GX24 1.260 4.72 1.000 1.000 0.898 2.165 2.165 0.205 h b T max For Tmax with greater diameters than Dmax, see technical information on page A 471. Max. cutting depth for double-edged GX16 insert 0.615 (15.6mm). GX24 insert 0.906 (23mm) f f1+s/2 Ordering example right-handed shank tool G1011.12 R-3T21GX24 / left-handed shank tool G1011.12 L-3T21GX24 Bodies and assembly parts are included in the scope of delivery. Assembly parts Type GX 16-1E2/F2 .-GX 24-4E6/F6 Clamping screw for grooving insert FS2118 (Torx 20IP) Tightening torque 44 in-lb (5.0 Nm) q Torx key FS1464 (Torx 20IP) A 321
