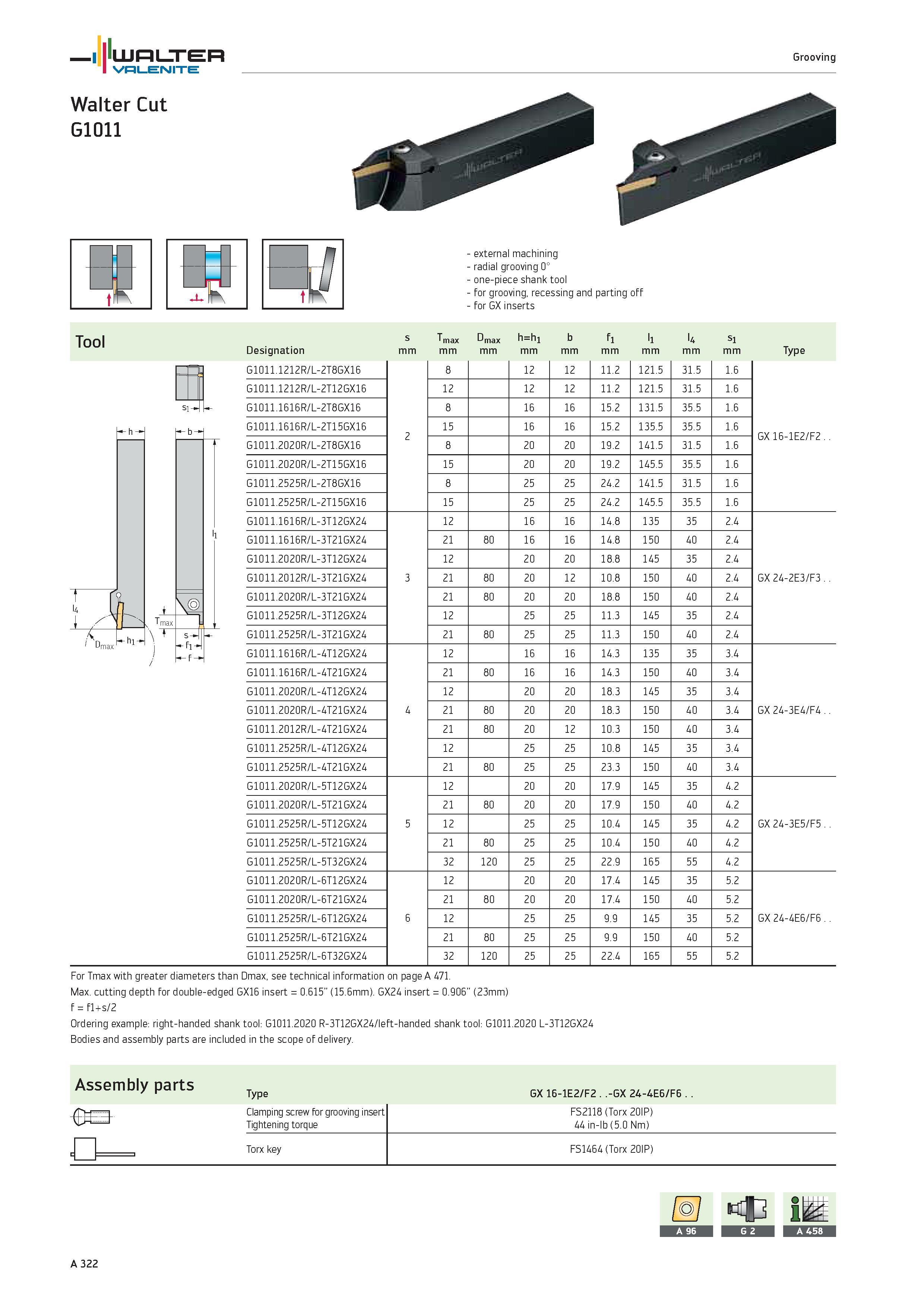

WALTER Valenite Grooving Walter Cut G1011 II 1 tf p Tool n external machining radial grooving 0° one-piece shank tool for grooving, recessing and parting off for GX inserts Designation s mm Tmax mm Dmax mm h=h1 mm b mm f1 mm l1 mm U mm s1 mm Type G1011.1212R/L-2T8GX16 8 12 12 11.2 121.5 31.5 1.6 G1011.1212R/L-2T12GX16 12 12 12 11.2 121.5 31.5 1.6 G1011.1616R/L-2T8GX16 8 16 16 15.2 131.5 35.5 1.6 G1011.1616R/L-2T15GX16 2 15 16 16 15.2 135.5 35.5 1.6 GX 16-1E2/F2.. G1011.2020R/L-2T8GX16 8 20 20 19.2 141.5 31.5 1.6 G1011.2020R/L-2T15GX16 15 20 20 19.2 145.5 35.5 1.6 G1011.2525R/L-2T8GX16 8 25 25 24.2 141.5 31.5 1.6 G1011.2525R/L-2T15GX16 15 25 25 24.2 145.5 35.5 1.6 G1011.1616R/L-3T12GX24 12 16 16 14.8 135 35 2.4 G1011.1616R/L-3T21GX24 21 80 16 16 14.8 150 40 2.4 G1011.2020R/L-3T12GX24 12 20 20 18.8 145 35 2.4 G1011.2012R/L-3T21GX24 3 21 80 20 12 10.8 150 40 2.4 GX 24-2E3/F3 G1011.2020R/L-3T21GX24 21 80 20 20 18.8 150 40 2.4 G1011.2525R/L-3T12GX24 12 25 25 11.3 145 35 2.4 G1011.2525R/L-3T21GX24 21 80 25 25 11.3 150 40 2.4 G1011.1616R/L-4T12GX24 12 16 16 14.3 135 35 3.4 G1011.1616R/L-4T21GX24 21 80 16 16 14.3 150 40 3.4 G1011.2020R/L-4T12GX24 12 20 20 18.3 145 35 3.4 G1011.2020R/L-4T21GX24 4 21 80 20 20 18.3 150 40 3.4 GX 24-3E4/F4 G1011.2012R/L-4T21GX24 21 80 20 12 10.3 150 40 3.4 G1011.2525R/L-4T12GX24 12 25 25 10.8 145 35 3.4 G1011.2525R/L-4T21GX24 21 80 25 25 23.3 150 40 3.4 G1011.2020R/L-5T12GX24 12 20 20 17.9 145 35 4.2 G1011.2020R/L-5T21GX24 21 80 20 20 17.9 150 40 4.2 G1011.2525R/L-5T12GX24 5 12 25 25 10.4 145 35 4.2 GX 24-3E5/F5 G1011.2525R/L-5T21GX24 21 80 25 25 10.4 150 40 4.2 G1011.2525R/L-5T32GX24 32 120 25 25 22.9 165 55 4.2 G1011.2020R/L-6T12GX24 12 20 20 17.4 145 35 5.2 G1011.2020R/L-6T21GX24 21 80 20 20 17.4 150 40 5.2 G1011.2525R/L-6T12GX24 6 12 25 25 9.9 145 35 5.2 GX 24-4E6/F6 G1011.2525R/L-6T21GX24 21 80 25 25 9.9 150 40 5.2 G1011.2525R/L-6T32GX24 32 120 25 25 22.4 165 55 5.2 For Tmax with greater diameters than Dmax, see technical information on page A 471. Max. cutting depth for double-edged GX16 insert 0.615 (15.6mm). GX24 insert 0.906 (23mm) f f1+s/2 Ordering example right-handed shank tool G1011.2020 R-3T12GX24/left-handed shank tool G1011.2020 L-3T12GX24 Bodies and assembly parts are included in the scope of delivery. Assembly parts Type GX 16-1E2/F2 .-GX 24-4E6/F6 Clamping screw for grooving insert FS2118 (Torx 20IP) Tightening torque 44 in-lb (5.0 Nm) Torx key FS1464 (Torx 20IP) A 322
