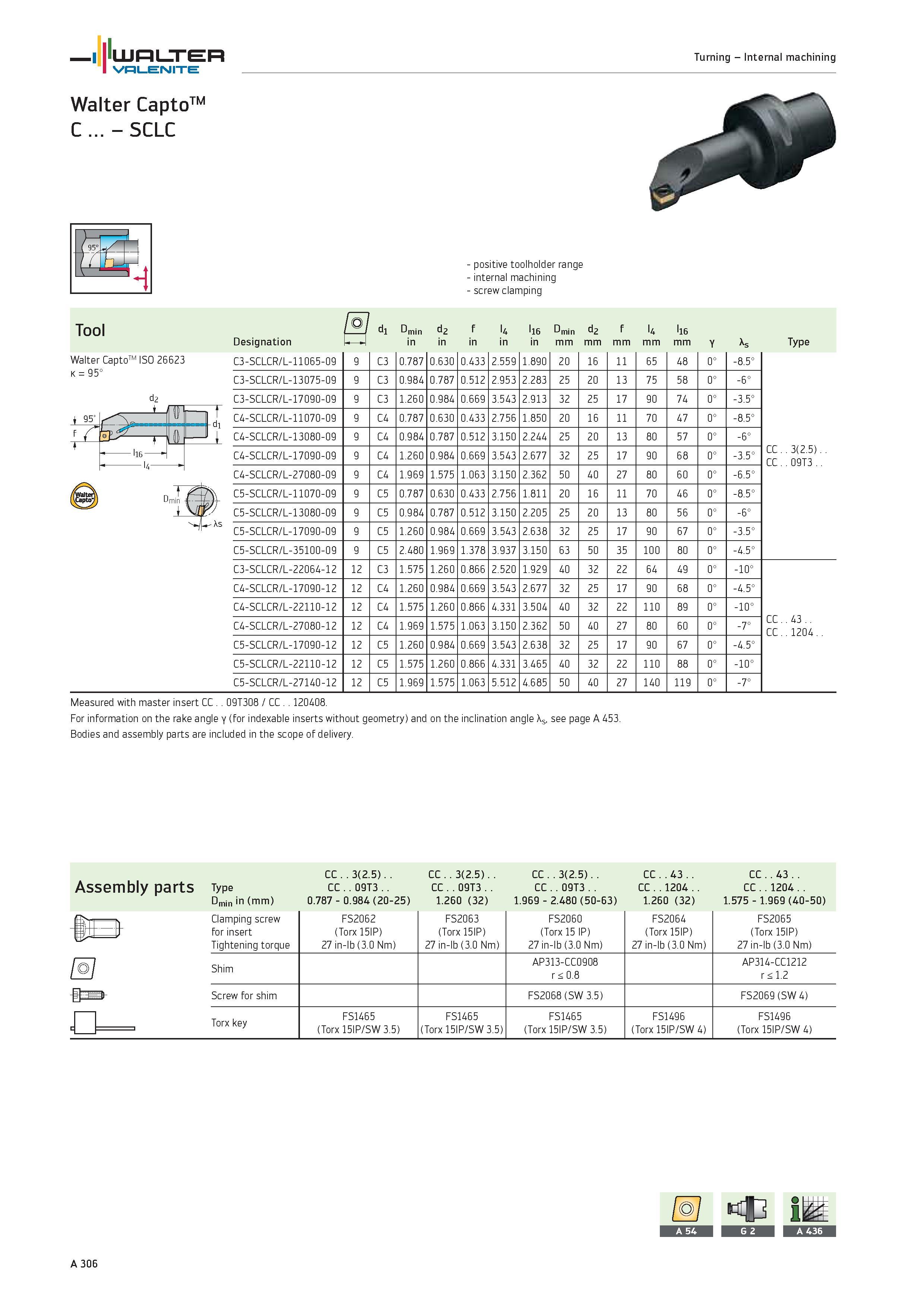

WALTER Valenite Turning Internal machining Walter CaptoTM C SCLC Tool Walter CaptoTM ISO 26623 K 95° positive toolholder range internal machining screw clamping / 7 d1 Dmin d2 f l4 l16 Dmin d2 f l4 l16 Designation in mm Y As Type C3-SCLCR/L-11065-09 9 C3 0.787 0.630 0.433 2.559 1.890 20 16 11 65 48 0° -8.5° C3-SCLCR/L-13075-09 9 C3 0.984 0.787 0.512 2.953 2.283 25 20 13 75 58 0° -6° C3-SCLCR/L-17090-09 9 C3 1.260 0.984 0.669 3.543 2.913 32 25 17 90 74 0° -3.5° C4-SCLCR/L-11070-09 9 C4 0.787 0.630 0.433 2.756 1.850 20 16 11 70 47 0° -8.5° C4-SCLCR/L-13080-09 9 C4 0.984 0.787 0.512 3.150 2.244 25 20 13 80 57 0° -6° C4-SCLCR/L-17090-09 9 C4 1.260 0.984 0.669 3.543 2.677 32 25 17 90 68 0° -3.5° CC 3(2.5) CC 09T3 C4-SCLCR/L-27080-09 9 C4 1.969 1.575 1.063 3.150 2.362 50 40 27 80 60 0° -6.5° C5-SCLCR/L-11070-09 9 C5 0.787 0.630 0.433 2.756 1.811 20 16 11 70 46 0° -8.5° C5-SCLCR/L-13080-09 9 C5 0.984 0.787 0.512 3.150 2.205 25 20 13 80 56 0° -6° C5-SCLCR/L-17090-09 9 C5 1.260 0.984 0.669 3.543 2.638 32 25 17 90 67 0° -3.5° C5-SCLCR/L-35100-09 9 C5 2.480 1.969 1.378 3.937 3.150 63 50 35 100 80 0° -4.5° C3-SCLCR/L-22064-12 12 C3 1.575 1.260 0.866 2.520 1.929 40 32 22 64 49 0° -10° C4-SCLCR/L-17090-12 12 C4 1.260 0.984 0.669 3.543 2.677 32 25 17 90 68 0° -4.5° C4-SCLCR/L-22110-12 12 C4 1.575 1.260 0.866 4.331 3.504 40 32 22 110 89 0° -10° C4-SCLCR/L-27080-12 12 C4 1.969 1.575 1.063 3.150 2.362 50 40 27 80 60 0° -7° CC..43 CC 1204 C5-SCLCR/L-17090-12 12 C5 1.260 0.984 0.669 3.543 2.638 32 25 17 90 67 0° -4.5° C5-SCLCR/L-22110-12 12 C5 1.575 1.260 0.866 4.331 3.465 40 32 22 110 88 0° -10° C5-SCLCR/L-27140-12 12 C5 1.969 1.575 1.063 5.512 4.685 50 40 27 140 119 0° -7° Measured with master insert CC 09T308 / CC 120408. For information on the rake angle y (for indexable inserts without geometry) and on the inclination angle Xs, see page A 453. Bodies and assembly parts are included in the scope of delivery. Assembly parts CC 3(2.5) CC 3(2.5) CC 3(2.5) CC 43 CC 43 Type CC 09T3 CC 09T3 CC 09T3 CC 1204 CC 1204 Dmin in (mm) 0.787 0.984 (20-25) 1.260 (32) 1.969 2.480 (50-63) 1.260 (32) 1.575 1.969 (40-50) Clamping screw for insert Tightening torque FS2062 (Torx 15IP) 27 in-lb (3.0 Nm) FS2063 (Torx 15IP) 27 in-lb (3.0 Nm) FS2060 (Torx 15 IP) 27 in-lb (3.0 Nm) FS2064 (Torx 15IP) 27 in-lb (3.0 Nm) FS2065 (Torx 15IP) 27 in-lb (3.0 Nm) Shim AP313-CC0908 r < 0.8 AP314-CC1212 r < 1.2 Screw for shim FS2068 (SW 3.5) FS2069 (SW 4) Torx key FS1465 (Torx 15IP/SW 3.5) FS1465 (Torx 15IP/SW 3.5) FS1465 (Torx 15IP/SW 3.5) FS1496 (Torx 15IP/SW 4) FS1496 (Torx 15IP/SW 4) O L n A 306 D
