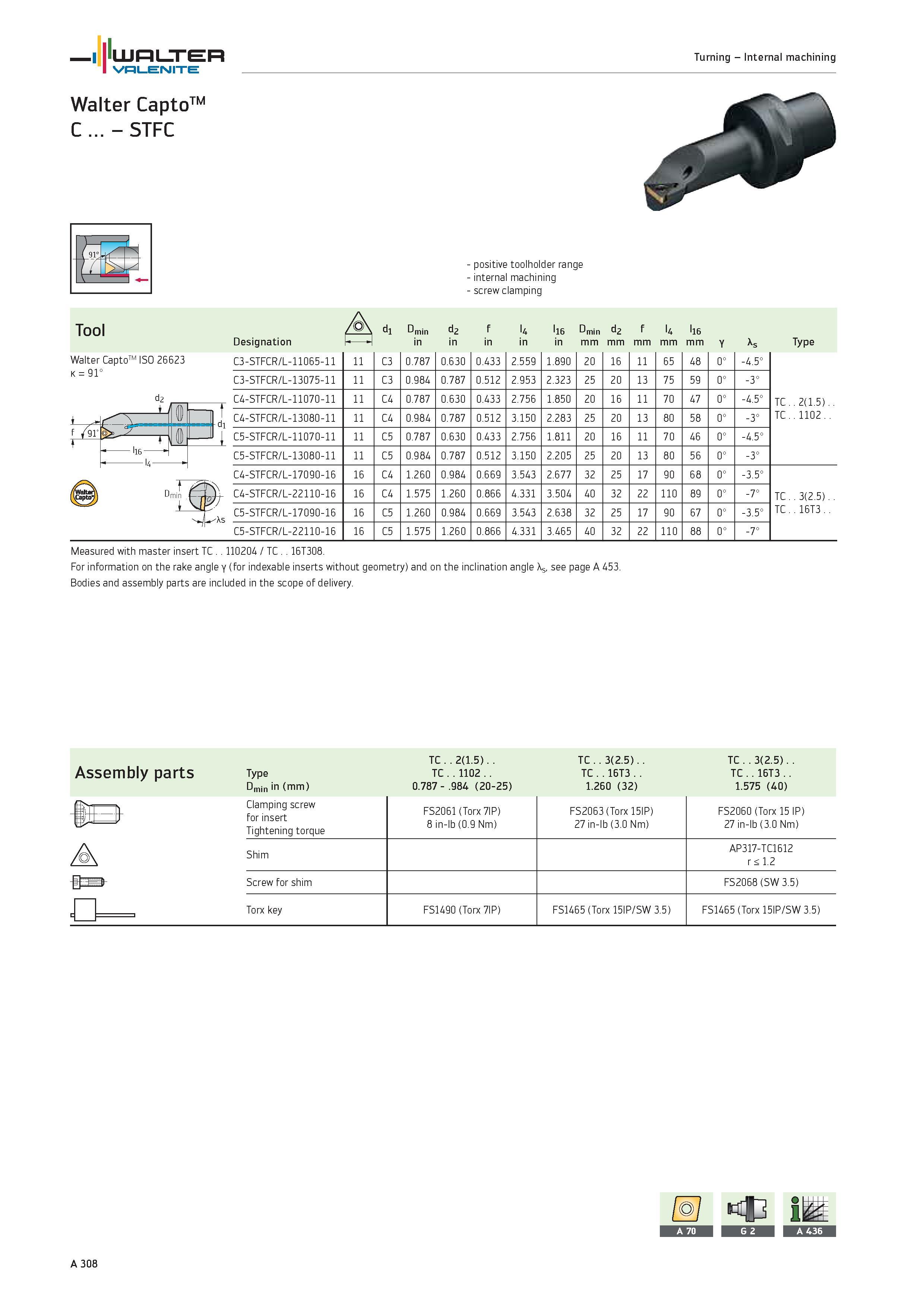

312 Каталог WALTER 2012 Металлорежущий инструмент и оснастка Valenite для станков Стр.A308

Каталог WALTER 2012 Инструмент и оснастка Valenite Стр. A308 0312 ENG Lab2u

WALTER Valenite Turning Internal machining Walter CaptoTM C STFC Tool Walter CaptoTM ISO 26623 k 91° II t H r" > f /91° mil i ( l16 14 positive toolholder range internal machining screw clamping Xs A d1 Dmin d2 f l4 l16 Dmin d2 f l4 l16 Designation f- in mm Y As Type C3-STFCR/L-11065-11 11 C3 0.787 0.630 0.433 2.559 1.890 20 16 11 65 48 0° -4.5° C3-STFCR/L-13075-11 11 C3 0.984 0.787 0.512 2.953 2.323 25 20 13 75 59 0° -3° C4-STFCR/L-11070-11 11 C4 0.787 0.630 0.433 2.756 1.850 20 16 11 70 47 0° -4.5° TC 2(1.5) C4-STFCR/L-13080-11 11 C4 0.984 0.787 0.512 3.150 2.283 25 20 13 80 58 0° -3° TC..1102 C5-STFCR/L-11070-11 11 C5 0.787 0.630 0.433 2.756 1.811 20 16 11 70 46 0° -4.5° C5-STFCR/L-13080-11 11 C5 0.984 0.787 0.512 3.150 2.205 25 20 13 80 56 0° -3° C4-STFCR/L-17090-16 16 C4 1.260 0.984 0.669 3.543 2.677 32 25 17 90 68 0° -3.5° C4-STFCR/L-22110-16 16 C4 1.575 1.260 0.866 4.331 3.504 40 32 22 110 89 0° -7° TC 3(2.5) C5-STFCR/L-17090-16 16 C5 1.260 0.984 0.669 3.543 2.638 32 25 17 90 67 0° -3.5° TC..16T3.. C5-STFCR/L-22110-16 16 C5 1.575 1.260 0.866 4.331 3.465 40 32 22 110 88 0° -7° Measured with master insert TC 110204 / TC 16T308. For information on the rake angle y (for indexable inserts without geometry) and on the inclination angle Xs, see page A 453. Bodies and assembly parts are included in the scope of delivery. D TC 2(1.5) TC 3(2.5) TC 3(2.5) Assembly parts Type TC .1102 TC 16T3 TC 16T3 Dmin in (mm) 0.787 .984 (20-25) 1.260 (32) 1.575 (40) Clamping screw for insert Tightening torque FS2061 (Torx 7IP) 8 in-lb (0.9 Nm) FS2063 (Torx 15IP) 27 in-lb (3.0 Nm) FS2060 (Torx 15 IP) 27 in-lb (3.0 Nm) Shim AP317-TC1612 r < 1.2 Screw for shim FS2068 (SW 3.5) Torx key FS1490 (Torx 7IP) FS1465 (Torx 15IP/SW 3.5) FS1465 (Torx 15IP/SW 3.5) A 308
