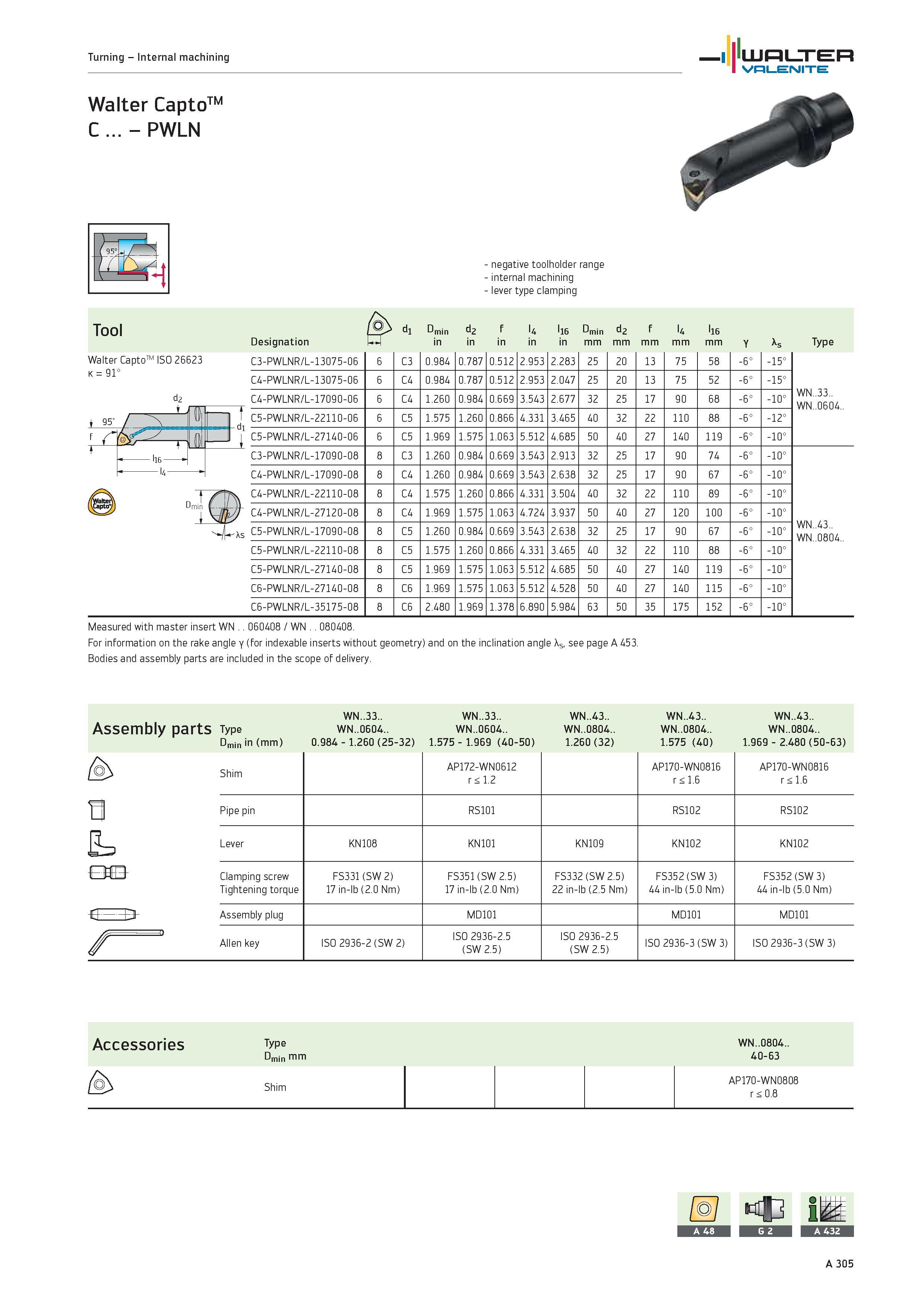

309 Каталог WALTER 2012 Металлорежущий инструмент и оснастка Valenite для станков Стр.A305

Каталог WALTER 2012 Инструмент и оснастка Valenite Стр. A305 0309 ENG Lab2u

Turning Internal machining WALTER Valenite Walter CaptoTM C PWLN Tool Walter CaptoTM ISO 26623 k 91° negative toolholder range internal machining lever type clamping t 3 5- / .A di f r a 1 14 / > dl Dmin d2 f l4 l16 Dmin d2 f U l16 Designation tr in mm Y As Type C3-PWLNR/L-13075-06 6 C3 0.984 0.787 0.512 2.953 2.283 25 20 13 75 58 -6° -15° C4-PWLNR/L-13075-06 6 C4 0.984 0.787 0.512 2.953 2.047 25 20 13 75 52 -6° -15° C4-PWLNR/L-17090-06 6 C4 1.260 0.984 0.669 3.543 2.677 32 25 17 90 68 -6° -10° WN..33.. WN 0604 C5-PWLNR/L-22110-06 6 C5 1.575 1.260 0.866 4.331 3.465 40 32 22 110 88 -6° -12° C5-PWLNR/L-27140-06 6 C5 1.969 1.575 1.063 5.512 4.685 50 40 27 140 119 -6° -10° C3-PWLNR/L-17090-08 8 C3 1.260 0.984 0.669 3.543 2.913 32 25 17 90 74 -6° -10° C4-PWLNR/L-17090-08 8 C4 1.260 0.984 0.669 3.543 2.638 32 25 17 90 67 -6° -10° C4-PWLNR/L-22110-08 8 C4 1.575 1.260 0.866 4.331 3.504 40 32 22 110 89 -6° -10° C4-PWLNR/L-27120-08 8 C4 1.969 1.575 1.063 4.724 3.937 50 40 27 120 100 -6° -10° C5-PWLNR/L-17090-08 8 C5 1.260 0.984 0.669 3.543 2.638 32 25 17 90 67 -6° -10° WN..43.. WN 0804 C5-PWLNR/L-22110-08 8 C5 1.575 1.260 0.866 4.331 3.465 40 32 22 110 88 -6° -10° C5-PWLNR/L-27140-08 8 C5 1.969 1.575 1.063 5.512 4.685 50 40 27 140 119 -6° -10° C6-PWLNR/L-27140-08 8 C6 1.969 1.575 1.063 5.512 4.528 50 40 27 140 115 -6° -10° C6-PWLNR/L-35175-08 8 C6 2.480 1.969 1.378 6.890 5.984 63 50 35 175 152 -6° -10° Measured with master insert WN 060408 / WN 080408. For information on the rake angle y (for indexable inserts without geometry) and on the inclination angle Xs. see page A 453. Bodies and assembly parts are included in the scope of delivery. u Assembly parts Type Dmin in (mm) WN..33.. WN..0604.. 0.984 1.260 (25-32) WN..33.. WN..0604.. 1.575 1.969 (40-50) WN..43.. WN..0804.. 1.260 (32) WN..43.. WN..0804.. 1.575 (40) WN..43.. WN..0804.. 1.969 2.480 (50-63) (k> Shim AP172-WN0612 r < 1.2 AP170-WN0816 r < 1.6 AP170-WN0816 r < 1.6 n Pipe pin RS101 RS102 RS102 1L Lever KN108 KN101 KN109 KN102 KN102 Clamping screw Tightening torque FS331 (SW 2) 17 in-lb (2.0 Nm) FS351 (SW 2.5) 17 in-lb (2.0 Nm) FS332 (SW 2.5) 22 in-lb (2.5 Nm) FS352 (SW 3) 44 in-lb (5.0 Nm) FS352 (SW 3) 44 in-lb (5.0 Nm) h> Assembly plug MD101 MD101 MD101 Allen key ISO 2936-2 (SW 2) ISO 2936-2.5 (SW 2.5) ISO 2936-2.5 (SW 2.5) ISO 2936-3 (SW 3) ISO 2936-3 (SW 3) Accessories Type WN..0804.. Dmin mm 40-63 AP170-WN0808
