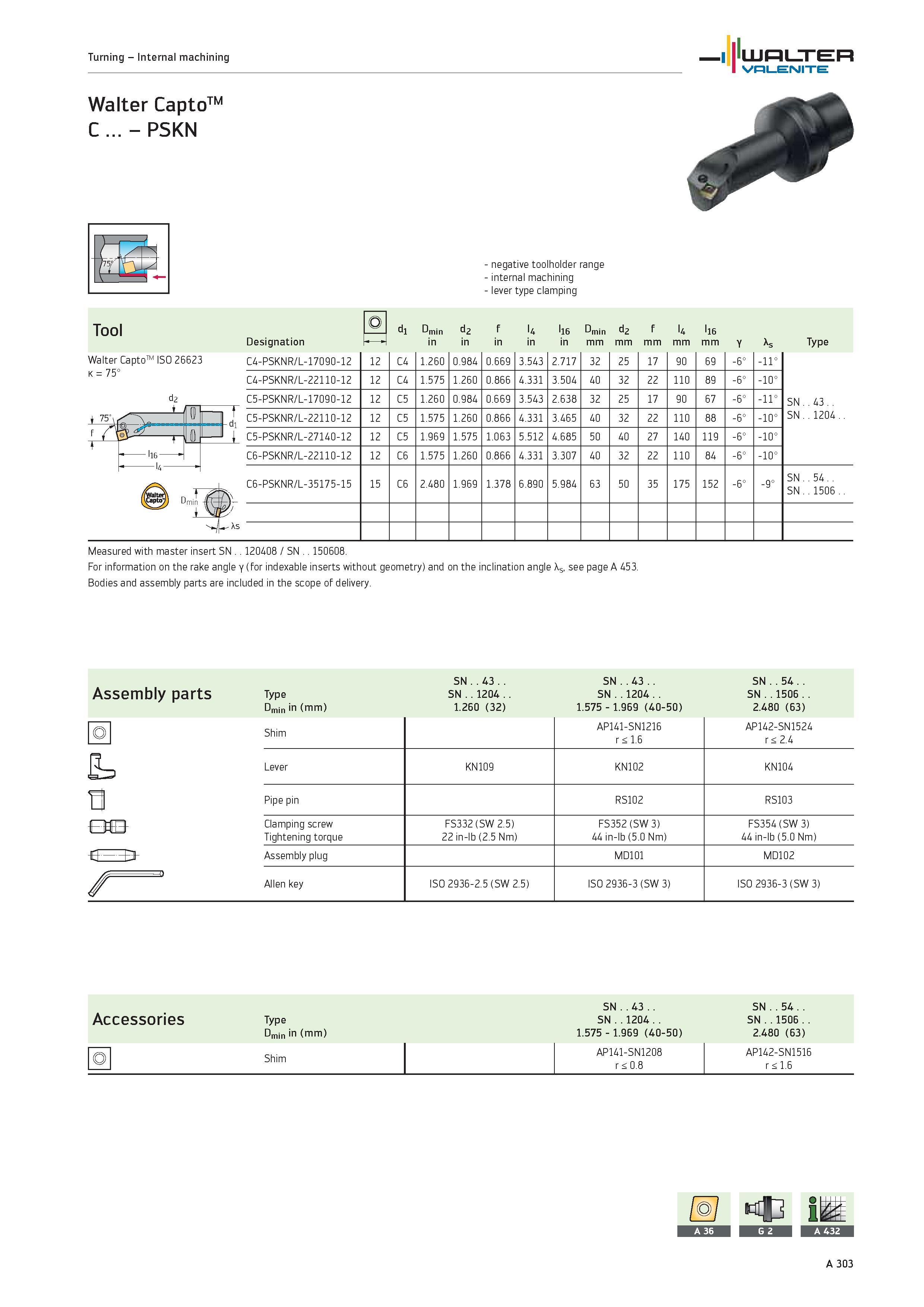

Turning Internal machining WALTER Valenite Tool Designation u d1 Dmin d2 f T4 T16 Dmin d2 f T4 T16 in mm y Xs Type Walter CaptoTM ISO 26623 K 75° C4-PSKNR/L-17090-12 12 C4 1.260 0.984 0.669 3.543 2.717 32 25 17 90 69 -6° -11° SN 43 SN .1204. C4-PSKNR/L-22110-12 12 C4 1.575 1.260 0.866 4.331 3.504 40 32 22 110 89 -6° -10° d2 C5-PSKNR/L-17090-12 12 C5 1.260 0.984 0.669 3.543 2.638 32 25 17 90 67 -6° -11° (IK C5-PSKNR/L-22110-12 12 C5 1.575 1.260 0.866 4.331 3.465 40 32 22 110 88 -6° -10° dl i C5-PSKNR/L-27140-12 12 C5 1.969 1.575 1.063 5.512 4.685 50 40 27 140 119 -6° -10° l16 C6-PSKNR/L-22110-12 12 C6 1.575 1.260 0.866 4.331 3.307 40 32 22 110 84 -6° -10° 14 C6-PSKNR/L-35175-15 7 15 C6 2.480 1.969 1.378 6.890 5.984 63 50 35 175 152 -6° -9° SN 54 SN .1506. id min -fH 1 M Wj 'A Xs Measured with master insert SN 120408 / SN 150608. For information on the rake angle y (for indexable inserts without geometry) and on the inclination angle Xs, see page A 453. Bodies and assembly parts are included in the scope of delivery. SN 43 SN 43 SN 54 Assembly parts Type sn 1204 sn 1204 sn 1506 Dmin in (mm) 1.260 (32) 1.575 1.969 (40-50) 2.480 (63) Shim AP141-SN1216 r < 1.6 AP142-SN1524 r < 2.4 Lever KN109 KN102 KN104 Pipe pin RS102 RS103 Clamping screw Tightening torque FS332 (SW 2.5) 22 in-lb (2.5 Nm) FS352 (SW 3) 44 in-lb (5.0 Nm) FS354 (SW 3) 44 in-lb (5.0 Nm) HR- Rh Assembly plug MD101 MD102 Allen key ISO 2936-2.5 (SW 2.5) ISO 2936-3 (SW 3) ISO 2936-3 (SW 3) Accessories Type Dmin in (mm) Shim SN 43 SN 1204 1.575 1.969 (40-50) AP141-SN1208 r < 0.8 SN 54 SN 1506 2.480 (63) AP142-SN1516 r < 1.6
