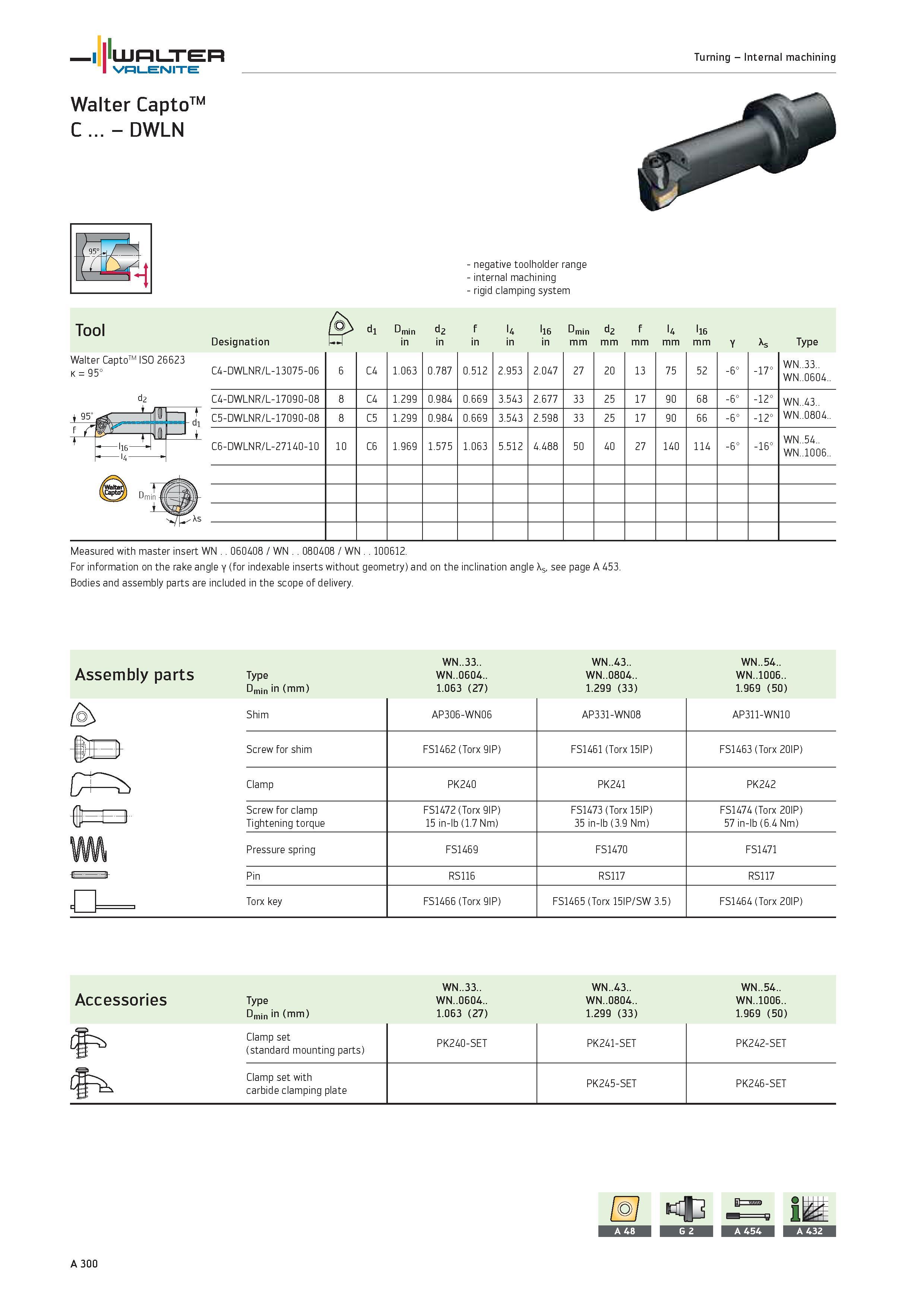

WALTER Valenite Turning Internal machining Walter CaptoTM C DWLN negative toolholder range internal machining rigid clamping system Tool d D n d rv f l4 l16 Dmin d2 f l4 l16 Designation l l in mm y As Type Walter CaptoTM ISO 26623 k 95° jS-A C4-DWLNR/L-13075-06 6 C4 1.063 0.787 0.512 2.953 2.047 27 20 13 75 52 -6° -17° WN..33.. WN..0604.. C4-DWLNR/L-17090-08 8 C4 1.299 0.984 0.669 3.543 2.677 33 25 17 90 68 -6° -12° WN..43.. WN..0804.. C5-DWLNR/L-17090-08 8 C5 1.299 0.984 0.669 3.543 2.598 33 25 17 90 66 -6° -12° C6-DWLNR/L-27140-10 10 C6 1.969 1.575 1.063 5.512 4.488 50 40 27 140 114 -6° -16° WN..54.. WN..1006.. Measured with master insert WN 060408 / WN 080408 / WN 100612. For information on the rake angle y (for indexable inserts without geometry) and on the inclination angle Xs. see page A 453. Bodies and assembly parts are included in the scope of delivery. u WN..33.. WN..43.. WN..54.. Assembly parts Type WN..0604.. WN..0804.. WN..1006.. Dmin in (mm) 1.063 (27) 1.299 (33) 1.969 (50) Shim AP306-WN06 AP331-WN08 AP311-WN10 FS1462 (Torx 9IP) FS1461 (Torx 15IP) FS1463 (Torx 20IP) Screw for shim Clamp PK240 PK241 PK242 P 1 Screw for clamp Tightening torque FS1472 (Torx 9IP) 15 in-lb (1.7 Nm) FS1473 (Torx 15IP) 35 in-lb (3.9 Nm) FS1474 (Torx 20IP) 57 in-lb (6.4 Nm) m Pressure spring FS1469 FS1470 FS1471 Pin RS116 RS117 RS117 c Torx key FS1466 (Torx 9IP) FS1465 (Torx 15IP/SW 3.5) FS1464 (Torx 20IP) Accessories m) (m in e n yp min WN..33.. WN..0604.. 1.063 (27) WN..43.. WN..0804.. 1.299 (33) WN..54.. WN..1006.. 1.969 (50) Clamp set (standard mounting parts) fln PK240-SET PK241-SET PK242-SET Clamp set with PK245-SET PK246-SET carbide clamping plate A 300
