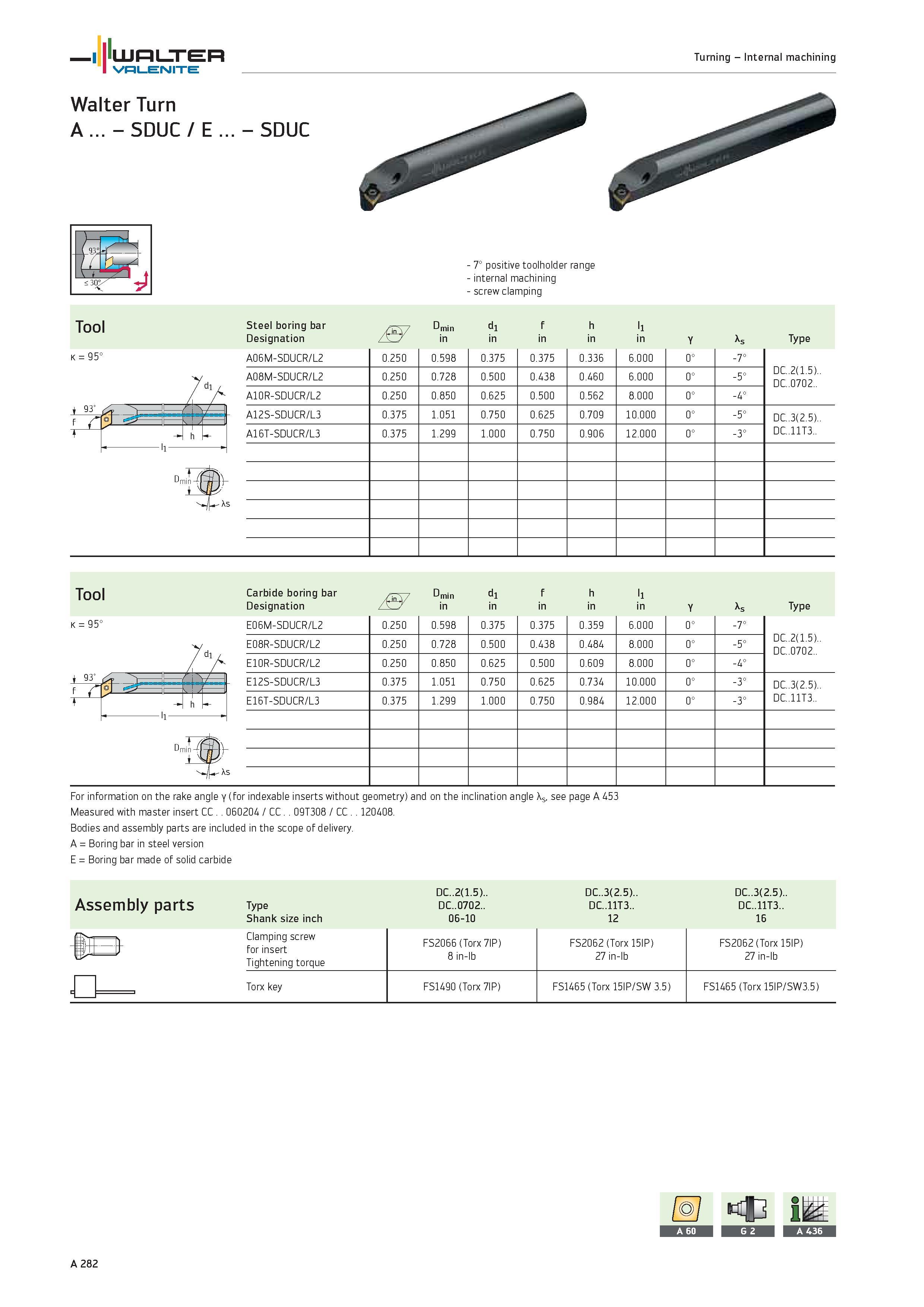

WALTER Valenite Turning Internal machining Walter Turn A SDUC / E SDUC 7° positive toolholder range internal machining screw clamping Tool Steel boring bar Dmin di f h li Designation in Y As Type A06M-SDUCR/L2 0.250 0.598 0.375 0.375 0.336 6.000 0° -7° DC..2(1.5).. DC..0702.. A08M-SDUCR/L2 0.250 0.728 0.500 0.438 0.460 6.000 0° -5° A10R-SDUCR/L2 0.250 0.850 0.625 0.500 0.562 8.000 0° -4° A12S-SDUCR/L3 0.375 1.051 0.750 0.625 0.709 10.000 0° -5° DC..3(2.5).. DC..11T3.. A16T-SDUCR/L3 0.375 1.299 1.000 0.750 0.906 12.000 0° -3° Tool Carbide boring bar Designation di Type E06M-SDUCR/L2 0.250 0.598 0.375 0.375 0.359 6.000 0° -7° DC..2(1.5).. DC..0702.. E08R-SDUCR/L2 0.250 0.728 0.500 0.438 0.484 8.000 0° -5° E10R-SDUCR/L2 0.250 0.850 0.625 0.500 0.609 8.000 0° -4° E12S-SDUCR/L3 0.375 1.051 0.750 0.625 0.734 10.000 0° -3° DC..3(2.5).. DC..11T3.. E16T-SDUCR/L3 0.375 1.299 1.000 0.750 0.984 12.000 0° -3° D D f h A Y s D For information on the rake angle y (for indexable inserts without geometry) and on the inclination angle Xs, see page A 453 Measured with master insert CC 060204 / CC 09T308 / CC 120408. Bodies and assembly parts are included in the scope of delivery. A Boring bar in steel version E Boring bar made of solid carbide DC..2(1.5).. DC..3(2.5).. DC..3(2.5).. Assembly parts Type DC..0702.. DC..11T3.. DC..11T3.. Shank size inch 06-10 12 16 =tf FS2066 (Torx 7IP) 8 in-lb FS2062 (Torx 15IP) 27 in-lb FS2062 (Torx 15IP) 27 in-lb for insert Tightening torque Torx key FS1490 (Torx 7IP) FS1465 (Torx 15IP/SW 3.5) FS1465 (Torx 15IP/SW3.5) A 282
