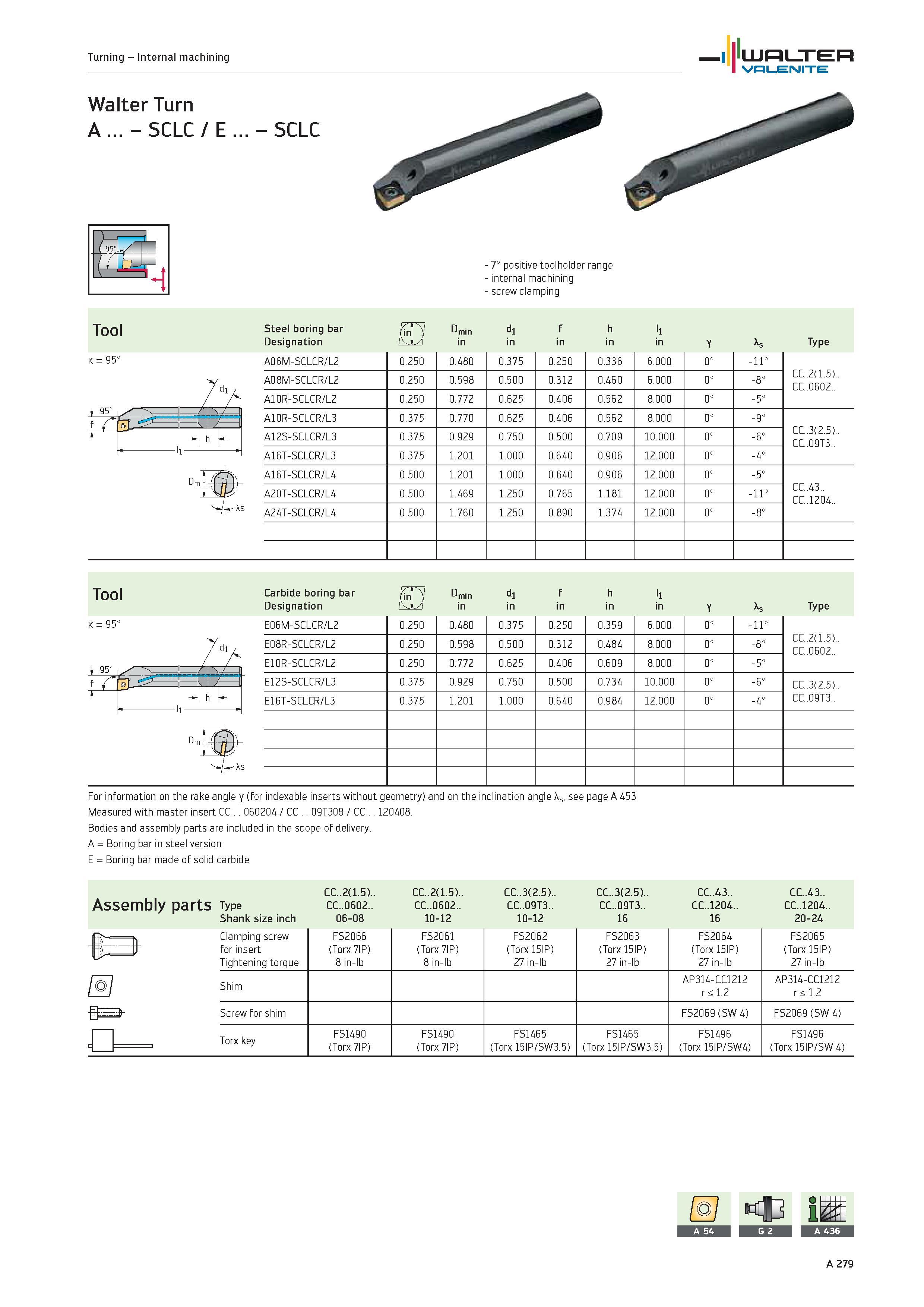

Turning Internal machining WALTER Valenite Walter Turn A SCLC / E SCLC 7° positive toolholder range internal machining screw clamping Tool Steel boring bar Dmin dl f h ll Designation in Y As Type k 95° f / nUrf / ll h A06M-SCLCR/L2 0.250 0.480 0.375 0.250 0.336 6.000 0° -11° CC..2(1.5).. CC..0602.. A08M-SCLCR/L2 0.250 0.598 0.500 0.312 0.460 6.000 0° -8° A10R-SCLCR/L2 0.250 0.772 0.625 0.406 0.562 8.000 0° -5° A10R-SCLCR/L3 0.375 0.770 0.625 0.406 0.562 8.000 0° -9° CC..3(2.5).. CC..09T3.. A12S-SCLCR/L3 0.375 0.929 0.750 0.500 0.709 10.000 0° -6° A16T-SCLCR/L3 0.375 1.201 1.000 0.640 0.906 12.000 0° -4° A16T-SCLCR/L4 0.500 1.201 1.000 0.640 0.906 12.000 0° -5° CC..43.. CC..1204.. A20T-SCLCR/L4 0.500 1.469 1.250 0.765 1.181 12.000 0° -11° A24T-SCLCR/L4 0.500 1.760 1.250 0.890 1.374 12.000 0° -8° Tool Carbide boring bar Ml Dmin dl f h ll Designation tsU in Y As Type k 95° -951 a E06M-SCLCR/L2 0.250 0.480 0.375 0.250 0.359 6.000 0° -11° CC..2(1.5).. CC..0602.. E08R-SCLCR/L2 0.250 0.598 0.500 0.312 0.484 8.000 0° -8° E10R-SCLCR/L2 0.250 0.772 0.625 0.406 0.609 8.000 0° -5° E12S-SCLCR/L3 0.375 0.929 0.750 0.500 0.734 10.000 0° -6° CC..3(2.5).. CC..09T3.. E16T-SCLCR/L3 0.375 1.201 1.000 0.640 0.984 12.000 0° -4° U U For information on the rake angle y (for indexable inserts without geometry) and on the inclination angle Xs. see page A 453 Measured with master insert CC 060204 / CC 09T308 / CC 120408. Bodies and assembly parts are included in the scope of delivery. A Boring bar in steel version E Boring bar made of solid carbide CC..2(1.5).. CC..2(l.5).. CC..3(2.5).. CC..3(2.5).. CC..43.. CC..43.. Assembly parts Type CC..0602.. CC..0602.. CC..09T3.. CC..09T3.. CC..1204.. CC..1204.. Shank size inch 06-08 10-12 10-12 16 16 20-24 Clamping screw FS2066 FS2061 FS2062 FS2063 FS2064 FS2065 for insert (Torx 7IP) (Torx 7IP) (Torx 15IP) (Torx 15IP) (Torx 15IP) (Torx 15IP) Tightening torque 8 in-lb 8 in-lb 27 in-lb 27 in-lb 27 in-lb 27 in-lb Shim AP314-CC1212 r < 1.2 AP314-CC1212 r < 1.2 Screw for shim FS2069 (SW 4) FS2069 (SW 4) Torx key FS1490 FS1490 FS1465 FS1465 FS1496 FS1496 (Torx 7IP) (Torx 7IP) (Torx 15IP/SW3.5) (Torx 15IP/SW3.5) (Torx 15IP/SW4) (Torx 15IP/SW 4)
