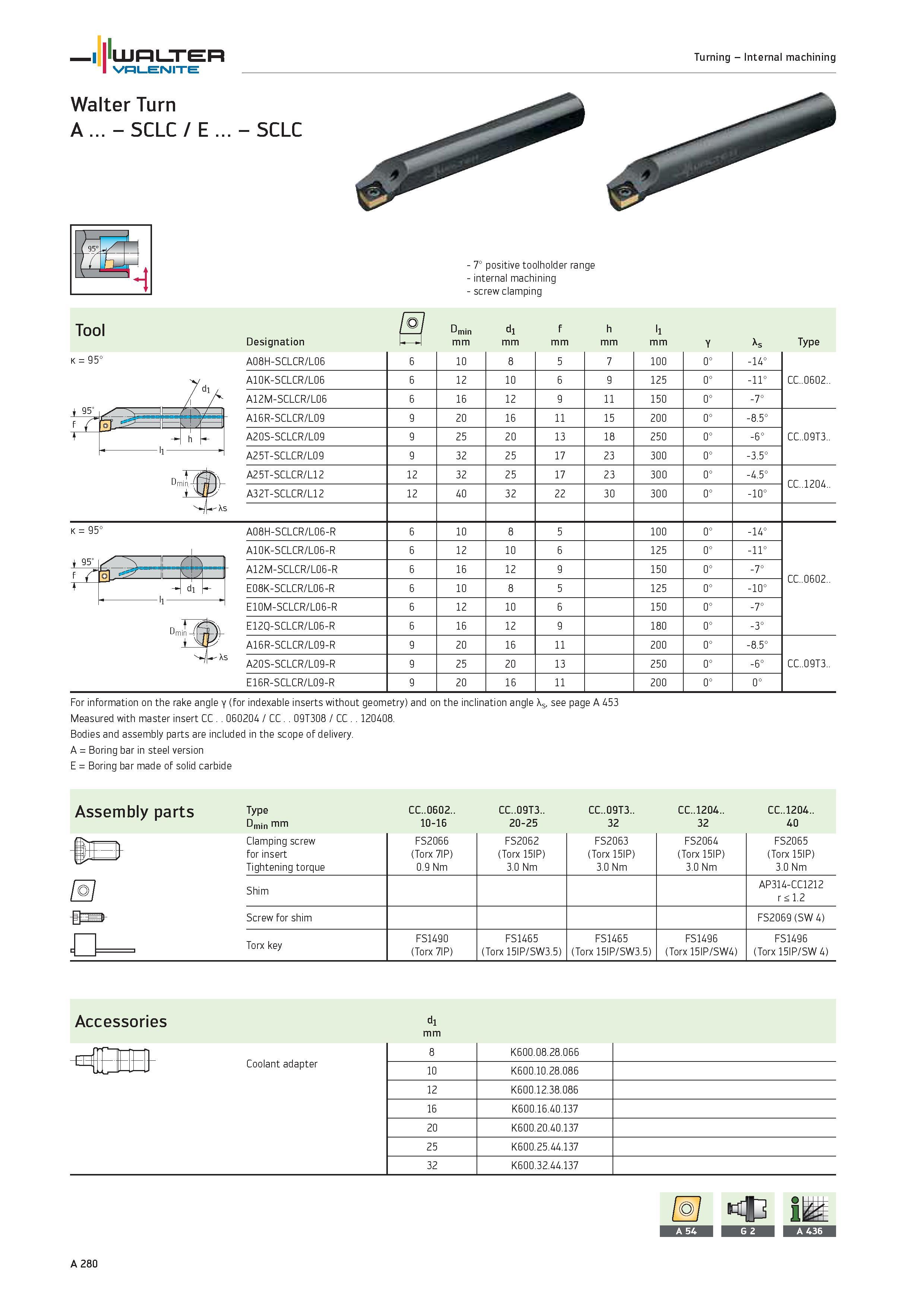

WALTER Valenite Turning Internal machining Walter Turn A SCLC / E SCLC K 95° 7° positive toolholder range internal machining screw clamping Tool / 1 Dmin di f h l1 Designation U -1 mm Y As Type A08H-SCLCR/L06 6 10 8 5 7 100 0° -14° CC..0602.. A10K-SCLCR/L06 6 12 10 6 9 125 0° -11° A12M-SCLCR/L06 6 16 12 9 11 150 0° -7° A16R-SCLCR/L09 9 20 16 11 15 200 0° -8.5° CC..09T3.. A20S-SCLCR/L09 9 25 20 13 18 250 0° -6° A25T-SCLCR/L09 9 32 25 17 23 300 0° -3.5° A25T-SCLCR/L12 12 32 25 17 23 300 0° -4.5° CC..1204.. A32T-SCLCR/L12 12 40 32 22 30 300 0° -10° A08H-SCLCR/L06-R 6 10 8 5 100 0° -14° CC..0602.. A10K-SCLCR/L06-R 6 12 10 6 125 0° -11° A12M-SCLCR/L06-R 6 16 12 9 150 0° -7° E08K-SCLCR/L06-R 6 10 8 5 125 0° -10° E10M-SCLCR/L06-R 6 12 10 6 150 0° -7° E12Q-SCLCR/L06-R 6 16 12 9 180 0° -3° A16R-SCLCR/L09-R 9 20 16 11 200 0° -8.5° CC..09T3.. A20S-SCLCR/L09-R 9 25 20 13 250 0° -6° E16R-SCLCR/L09-R 9 20 16 11 200 0° 0° k 95° For information on the rake angle y (for indexable inserts without geometry) and on the inclination angle Xs, see page A 453 Measured with master insert CC 060204 / CC 09T308 / CC 120408. Bodies and assembly parts are included in the scope of delivery. A Boring bar in steel version E Boring bar made of solid carbide h D D Assembly parts Type CC..0602.. CC..09T3.. CC..09T3.. CC..1204.. CC..1204.. Dmin mm 10-16 20-25 32 32 40 FS2066 FS2062 FS2063 FS2064 FS2065 IM'T 1 F y 1 for insert (Torx 7IP) (Torx 15IP) (Torx 15IP) (Torx 15IP) (Torx 15IP) Tightening torque 0.9 Nm 3.0 Nm 3.0 Nm 3.0 Nm 3.0 Nm j Shim AP314-CC1212 r < 1.2 Screw for shim FS2069 (SW 4) Torx key FS1490 (Torx 7IP) FS1465 (Torx 15IP/SW3.5) FS1465 (Torx 15IP/SW3.5) FS1496 (Torx 15IP/SW4) FS1496 (Torx 15IP/SW 4) Accessories d1 mm 8 K600.08.28.066 Coolant adapter 10 K600.10.28.086 12 K600.12.38.086 16 K600.16.40.137 20 K600.20.40.137 25 K600.25.44.137 32 K600.32.44.137 A 280
