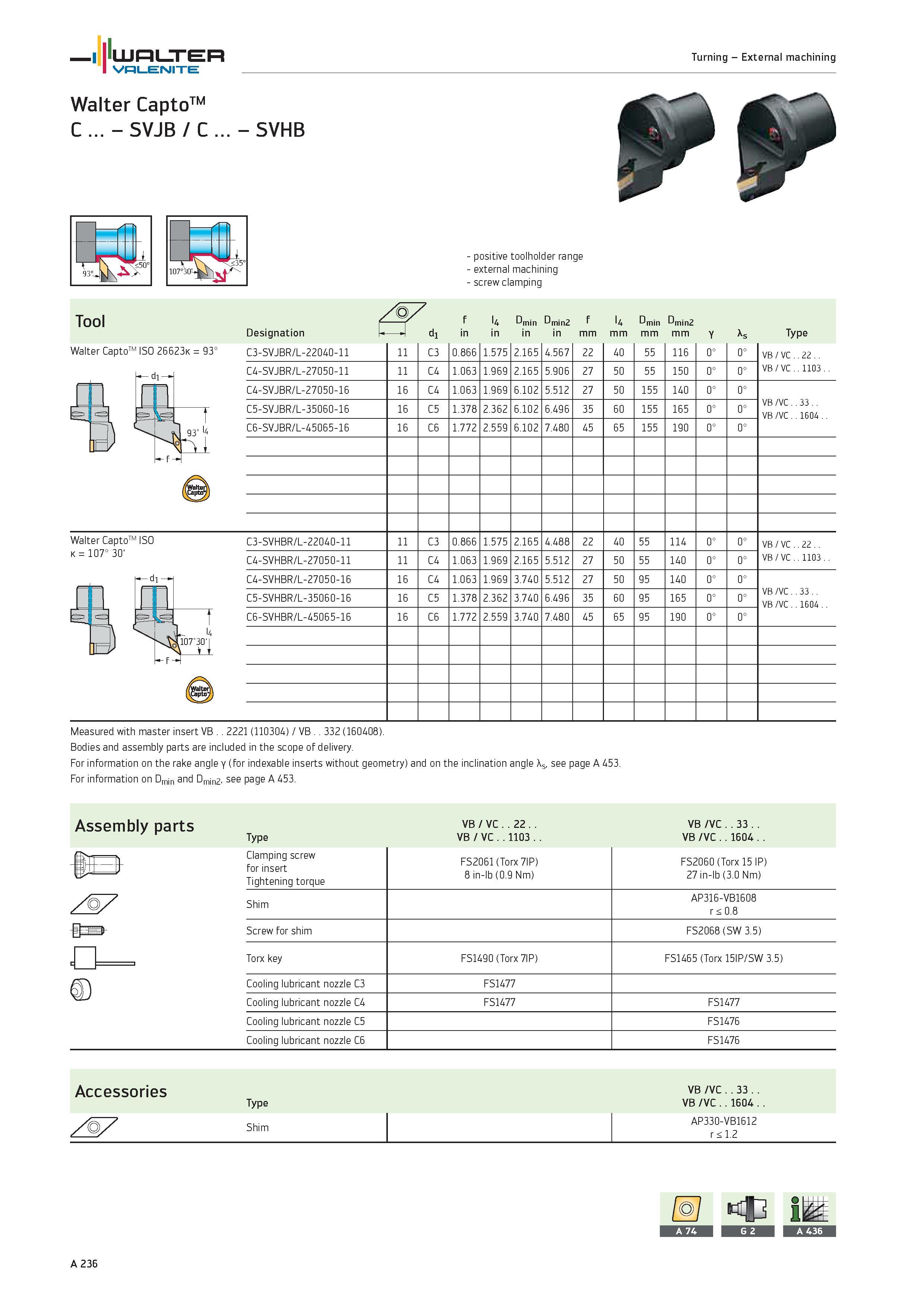

WALTER Valenite Turning External machining Walter CaptoTM C SVJB / C SVHB 107°30L positive toolholder range external machining screw clamping Tool Walter CaptoTM ISO 26623k 93° di- Dmin2 SB C3-SVJBR/L-22040-11 11 C3 0.866 1.575 2.165 4.567 22 40 55 116 0° 0° VB / VC 22 VB /VC .1103.. C4-SVJBR/L-27050-11 11 C4 1.063 1.969 2.165 5.906 27 50 55 150 0° 0° C4-SVJBR/L-27050-16 16 C4 1.063 1.969 6.102 5.512 27 50 155 140 0° 0° VB /VC 33 VB /VC..1604 C5-SVJBR/L-35060-16 16 C5 1.378 2.362 6.102 6.496 35 60 155 165 0° 0° C6-SVJBR/L-45065-16 16 C6 1.772 2.559 6.102 7.480 45 65 155 190 0° 0° C3-SVHBR/L-22040-11 11 C3 0.866 1.575 2.165 4.488 22 40 55 114 0° 0° VB / VC 22 VB /VC .1103.. C4-SVHBR/L-27050-11 11 C4 1.063 1.969 2.165 5.512 27 50 55 140 0° 0° C4-SVHBR/L-27050-16 16 C4 1.063 1.969 3.740 5.512 27 50 95 140 0° 0° VB /VC 33 VB /VC..1604 C5-SVHBR/L-35060-16 16 C5 1.378 2.362 3.740 6.496 35 60 95 165 0° 0° C6-SVHBR/L-45065-16 16 C6 1.772 2.559 3.740 7.480 45 65 95 190 0° 0° Walter CaptoTM ISO k 107° 30' Measured with master insert VB 2221 (110304) / VB 332 (160408). Bodies and assembly parts are included in the scope of delivery. For information on the rake angle y (for indexable inserts without geometry) and on the inclination angle Xs, see page A 453. For information on Dmin and Dmin2, see page A 453. f D D f mmZ 4 Assembly parts 3 Type Clamping screw for insert Tightening torque Shim Screw for shim Torx key Cooling lubricant nozzle C3 Cooling lubricant nozzle C4 Cooling lubricant nozzle C5 Cooling lubricant nozzle C6 VB / VC 22 VB / VC 1103 FS2061 (Torx 7IP) 8 in-lb (0.9 Nm) FS1490 (Torx 7IP) FS1477 FS1477 VB /VC 33 VB /VC 1604 FS2060 (Torx 15 IP) 27 in-lb (3.0 Nm) AP316-VB1608 r < 0.8 FS2068 (SW 3.5) FS1465 (Torx 15IP/SW 3.5) FS1477 FS1476 FS1476 Accessories VB /VC 33 Type VB /VC 1604 Shim AP330-VB1612 r < 1.2 A 236
