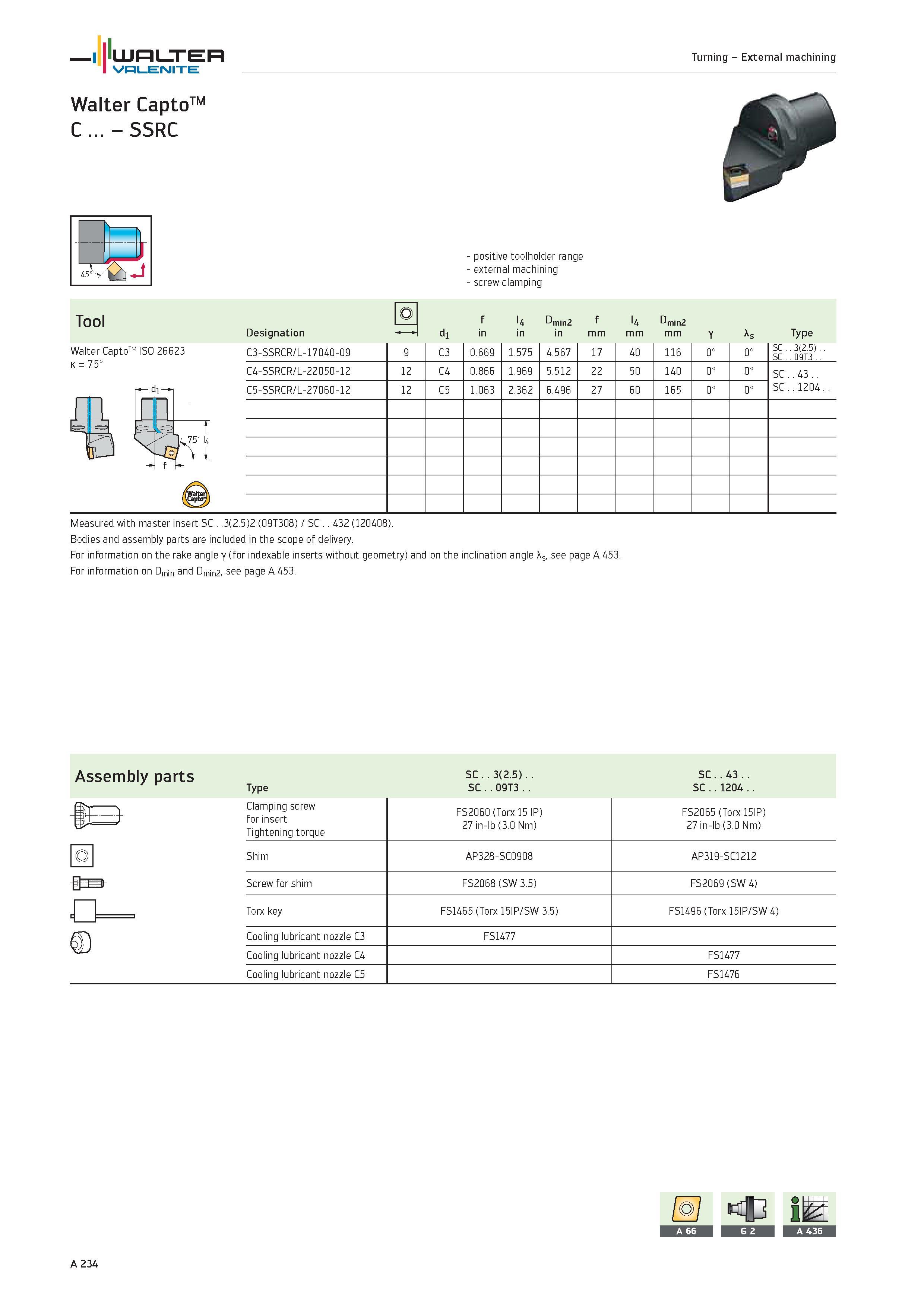

WALTER Valenite Turning External machining Walter CaptoTM C SSRC Walter CaptoTM ISO 26623 K 75° EL positive toolholder range external machining screw clamping Tool o f l4 Dmin2 f l4 Dmin2 Designation 1 d1 in mm Y As Type C3-SSRCR/L-17040-09 9 C3 0.669 1.575 4.567 17 40 116 0° 0° SC 3(2.5) SC 09T3 C4-SSRCR/L-22050-12 12 C4 0.866 1.969 5.512 22 50 140 0° 0° SC .43 SC .1204.. C5-SSRCR/L-27060-12 12 C5 1.063 2.362 6.496 27 60 165 0° 0° Measured with master insert SC .3(2.5)2 (09T308) / SC 432 (120408). Bodies and assembly parts are included in the scope of delivery. For information on the rake angle y (for indexable inserts without geometry) and on the inclination angle Xs, see page A 453. For information on Dmin and Dmin2, see page A 453. Assembly parts SC 3<25) SC 43 Type SC 09T3 SC 1204 A 234
