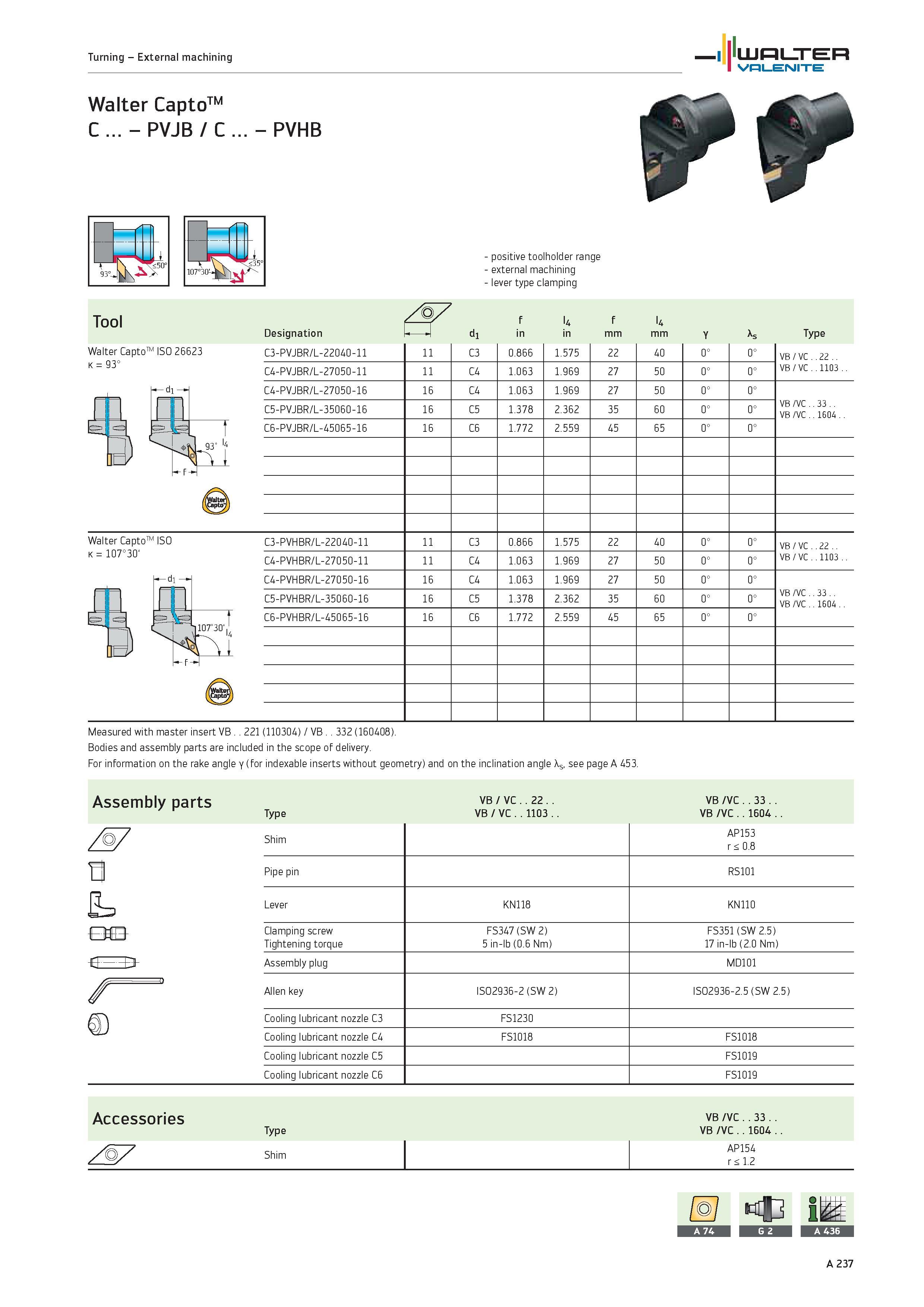

Turning External machining WALTER Valenite Walter CaptoTM C PVJB / C PVHB positive toolholder range external machining lever type clamping Measured with master insert VB 221 (110304) / VB 332 (160408). Bodies and assembly parts are included in the scope of delivery. For information on the rake angle y (for indexable inserts without geometry) and on the inclination angle Xs, see page A 453. Assembly parts VB / VC 22 VB /VC 33 Type VB / VC 1103 VB /VC 1604 // Shim AP153 r < 0.8 Pipe pin RS101 J L j Lever KN118 KN110 Clamping screw Tightening torque FS347 (SW 2) 5 in-lb (0.6 Nm) FS351 (SW 2.5) 17 in-lb (2.0 Nm) -ff hi- Assembly plug MD101 Allen key ISO2936-2 (SW 2) ISO2936-2.5 (SW 2.5) Cooling lubricant nozzle C3 FS1230 QJJ Cooling lubricant nozzle C4 FS1018 FS1018 Cooling lubricant nozzle C5 FS1019 Cooling lubricant nozzle C6 FS1019 Accessories VB /VC 33 Type VB /VC 1604 Shim AP154 r < 1.2 O b n A 237
