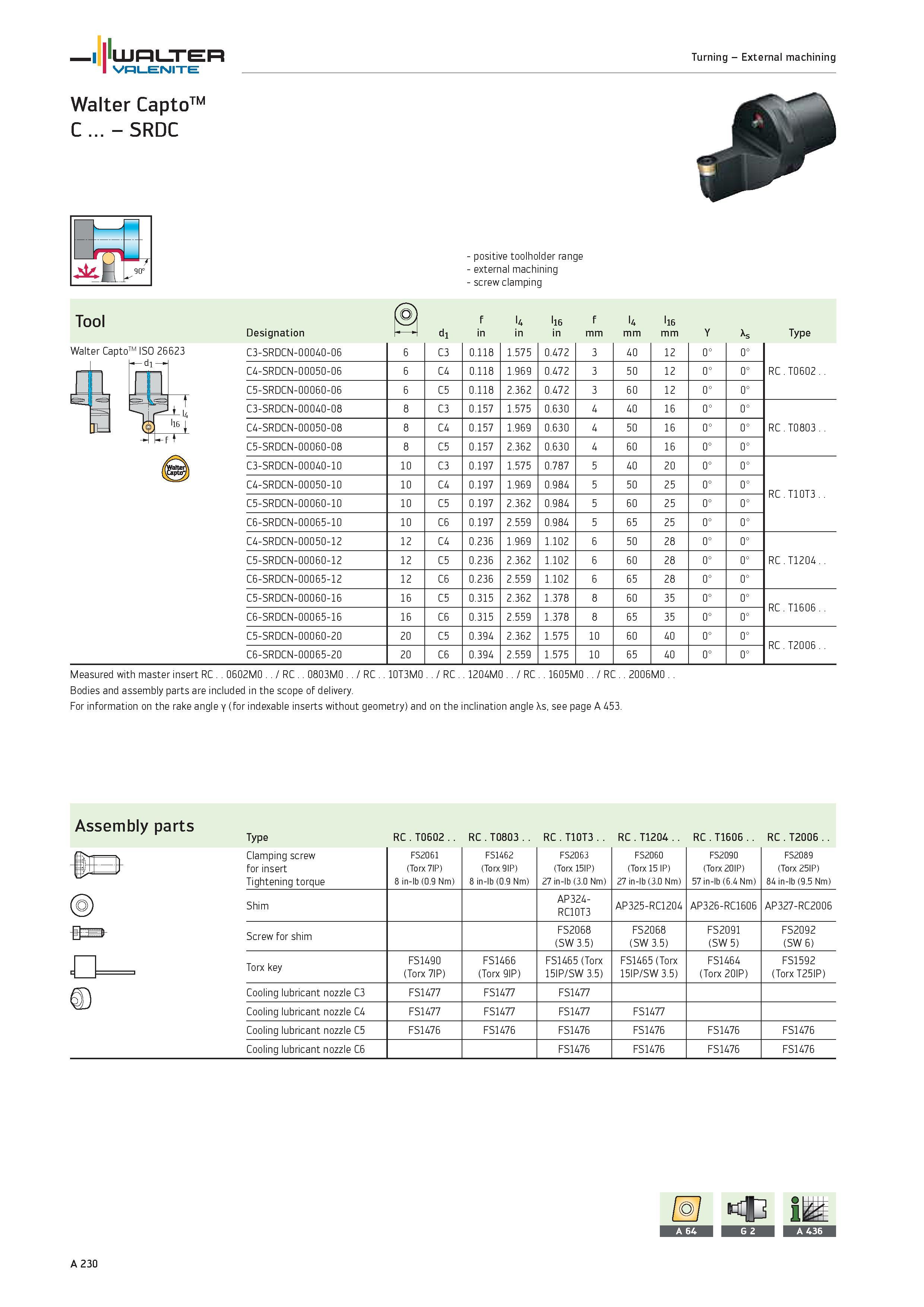

WALTER Valenite Turning External machining Walter CaptoTM C SRDC 4 7 Walter CaptoTM ISO 26623 positive toolholder range external machining screw clamping Tool f l4 l16 f l4 l16 Designation di in mm Y As Type C3-SRDCN-00040-06 6 C3 0.118 1.575 0.472 3 40 12 0° 0° RC.T0602. C4-SRDCN-00050-06 6 C4 0.118 1.969 0.472 3 50 12 0° 0° C5-SRDCN-00060-06 6 C5 0.118 2.362 0.472 3 60 12 0° 0° C3-SRDCN-00040-08 8 C3 0.157 1.575 0.630 4 40 16 0° 0° RC.T0803. C4-SRDCN-00050-08 8 C4 0.157 1.969 0.630 4 50 16 0° 0° C5-SRDCN-00060-08 8 C5 0.157 2.362 0.630 4 60 16 0° 0° C3-SRDCN-00040-10 10 C3 0.197 1.575 0.787 5 40 20 0° 0° RC.T10T3. C4-SRDCN-00050-10 10 C4 0.197 1.969 0.984 5 50 25 0° 0° C5-SRDCN-00060-10 10 C5 0.197 2.362 0.984 5 60 25 0° 0° C6-SRDCN-00065-10 10 C6 0.197 2.559 0.984 5 65 25 0° 0° C4-SRDCN-00050-12 12 C4 0.236 1.969 1.102 6 50 28 0° 0° RC.T1204.. C5-SRDCN-00060-12 12 C5 0.236 2.362 1.102 6 60 28 0° 0° C6-SRDCN-00065-12 12 C6 0.236 2.559 1.102 6 65 28 0° 0° C5-SRDCN-00060-16 16 C5 0.315 2.362 1.378 8 60 35 0° 0° RC.T1606. C6-SRDCN-00065-16 16 C6 0.315 2.559 1.378 8 65 35 0° 0° C5-SRDCN-00060-20 20 C5 0.394 2.362 1.575 10 60 40 0° 0° RC.T2006. C6-SRDCN-00065-20 20 C6 0.394 2.559 1.575 10 65 40 0° 0° Measured with master insert RC 0602M0 / RC 0803M0 / RC 10T3M0 / RC 1204M0 / RC 1605M0 / RC 2006M0 Bodies and assembly parts are included in the scope of delivery. For information on the rake angle y (for indexable inserts without geometry) and on the inclination angle Xs, see page A 453. Assembly parts Type RC T0602 RC T0803 RC T10T3 RC T1204 RC T1606 RC T2006 Clamping screw FS2061 FS1462 FS2063 FS2060 FS2090 FS2089 :AT T for insert (Torx 7IP) (Torx 9IP) (Torx 15IP) (Torx 15 IP) (Torx 20IP) (Torx 25IP) Tightening torque 8 in-lb (0.9 Nm) 8 in-lb (0.9 Nm) 27 in-lb (3.0 Nm) 27 in-lb (3.0 Nm) 57 in-lb (6.4 Nm) 84 in-lb (9.5 Nm) D Shim AP324- RC10T3 AP325-RC1204 AP326-RC1606 AP327-RC2006 Screw for shim FS2068 FS2068 FS2091 FS2092 (SW 3.5) (SW 3.5) (SW 5) (SW 6) Torx key FS1490 (Torx 7IP) FS1466 (Torx 9IP) FS1465 (Torx 15IP/SW 3.5) FS1465 (Torx 15IP/SW 3.5) FS1464 (Torx 20IP) FS1592 (Torx T25IP) Cooling lubricant nozzle C3 FS1477 FS1477 FS1477 Cooling lubricant nozzle C4 FS1477 FS1477 FS1477 FS1477 Cooling lubricant nozzle C5 FS1476 FS1476 FS1476 FS1476 FS1476 FS1476 Cooling lubricant nozzle C6 FS1476 FS1476 FS1476 FS1476 A 230
