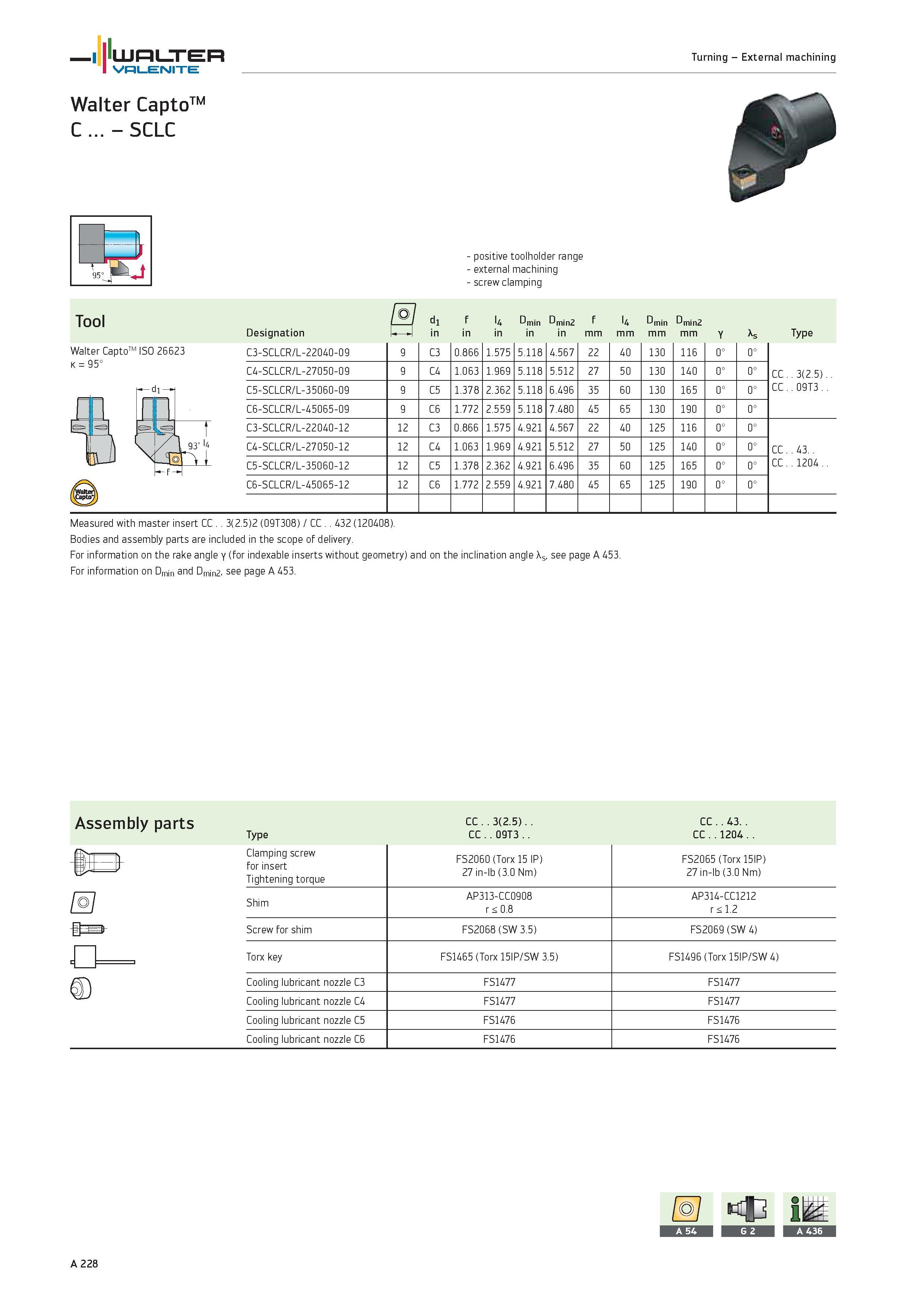

WALTER Valenite Turning External machining Walter CaptoTM C SCLC Tool Walter CaptoTM ISO 26623 K 95° positive toolholder range external machining screw clamping di f l4 Dmin Dmin2 f l4 Dmin Dmin2 Designation in mm Y As Type C3-SCLCR/L-22040-09 9 C3 0.866 1.575 5.118 4.567 22 40 130 116 0° 0° C4-SCLCR/L-27050-09 9 C4 1.063 1.969 5.118 5.512 27 50 130 140 0° 0° CC 3(2.5) C5-SCLCR/L-35060-09 9 C5 1.378 2.362 5.118 6.496 35 60 130 165 0° 0° CC..09T3.. C6-SCLCR/L-45065-09 9 C6 1.772 2.559 5.118 7.480 45 65 130 190 0° 0° C3-SCLCR/L-22040-12 12 C3 0.866 1.575 4.921 4.567 22 40 125 116 0° 0° C4-SCLCR/L-27050-12 12 C4 1.063 1.969 4.921 5.512 27 50 125 140 0° 0° CC 43. C5-SCLCR/L-35060-12 12 C5 1.378 2.362 4.921 6.496 35 60 125 165 0° 0° CC 1204 C6-SCLCR/L-45065-12 12 C6 1.772 2.559 4.921 7.480 45 65 125 190 0° 0° Measured with master insert CC 3(2.5)2 (09T308) / CC 432 (120408). Bodies and assembly parts are included in the scope of delivery. For information on the rake angle y (for indexable inserts without geometry) and on the inclination angle Xs, see page A 453. For information on Dmin and Dmin2, see page A 453. Assembly parts Type CC 3(2.5) CC 09T3 CC 43. CC 1204 FS2060 (Torx 15 IP) FS2065 (Torx 15IP) Oj 1 for insert Tightening torque 27 in-lb (3.0 Nm) 27 in-lb (3.0 Nm) Shim AP313-CC0908 r < 0.8 AP314-CC1212 r < 1.2 a Screw for shim FS2068 (SW 3.5) FS2069 (SW 4) c Torx key FS1465 (Torx 15IP/SW 3.5) FS1496 (Torx 15IP/SW 4) Cooling lubricant nozzle C3 FS1477 FS1477 syj Cooling lubricant nozzle C4 FS1477 FS1477 Cooling lubricant nozzle C5 FS1476 FS1476 Cooling lubricant nozzle C6 FS1476 FS1476 A 228
