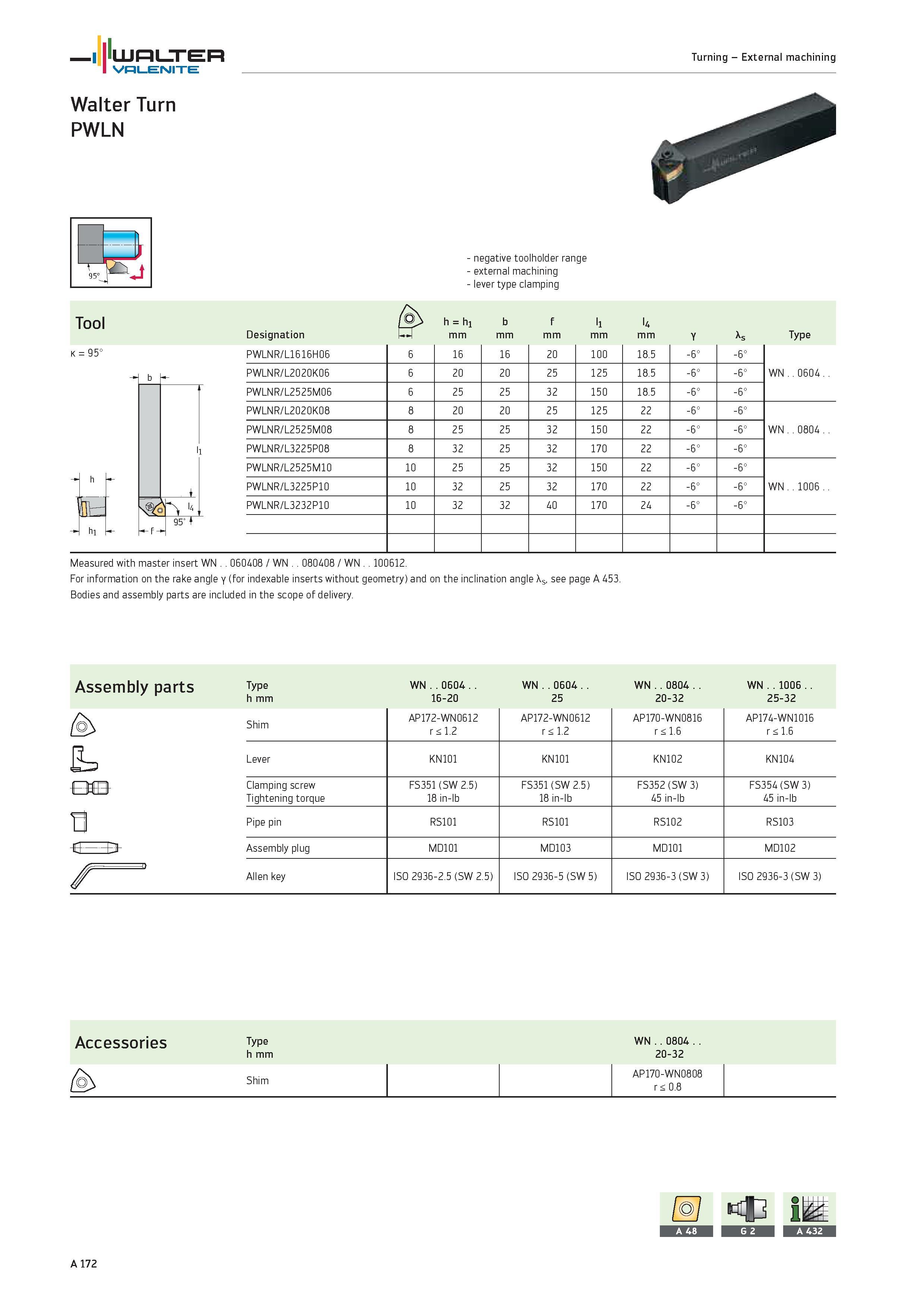

- negative toolholder range external machining lever type clamping Tool Designation h h1 mm b mm f mm l1 mm l4 mm Y As Type K 95° PWLNR/L1616H06 6 16 16 20 100 18.5 -6° -6° b PWLNR/L2020K06 6 20 20 25 125 18.5 -6° -6° WN 0604 PWLNR/L2525M06 6 25 25 32 150 18.5 -6° -6° PWLNR/L2020K08 8 20 20 25 125 22 -6° -6° PWLNR/L2525M08 8 25 25 32 150 22 -6° -6° WN 0804 PWLNR/L3225P08 8 32 25 32 170 22 -6° -6° PWLNR/L2525M10 10 25 25 32 150 22 -6° -6° H h PWLNR/L3225P10 10 32 25 32 170 22 -6° -6° WN 1006 PWLNR/L3232P10 10 32 32 40 170 24 -6° -6° -A hi Measured with master insert WN 060408 / WN 080408 / WN 100612. For information on the rake angle y (for indexable inserts without geometry) and on the inclination angle Xs, see page A 453. Bodies and assembly parts are included in the scope of delivery. Assembly parts Type h mm WN 0604 16-20 WN 0604 25 WN 0804 20-32 WN 1006 25-32 (s>> Shim AP172-WN0612 r < 1.2 AP172-WN0612 r < 1.2 AP170-WN0816 r < 1.6 AP174-WN1016 r < 1.6 Lever KN101 KN101 KN102 KN104 -EM3 Clamping screw FS351 (SW 2.5) FS351 (SW 2.5) FS352 (SW 3) FS354 (SW 3) Tightening torque 18 in-lb 18 in-lb 45 in-lb 45 in-lb n Pipe pin RS101 RS101 RS102 RS103 h> Assembly plug MD101 MD103 MD101 MD102 Allen key ISO 2936-2.5 (SW 2.5) ISO 2936-5 (SW 5) ISO 2936-3 (SW 3) ISO 2936-3 (SW 3) Accessories Type WN 0804 h mm 20-32 Shim AP170-WN0808 r < 0.8 A 172
