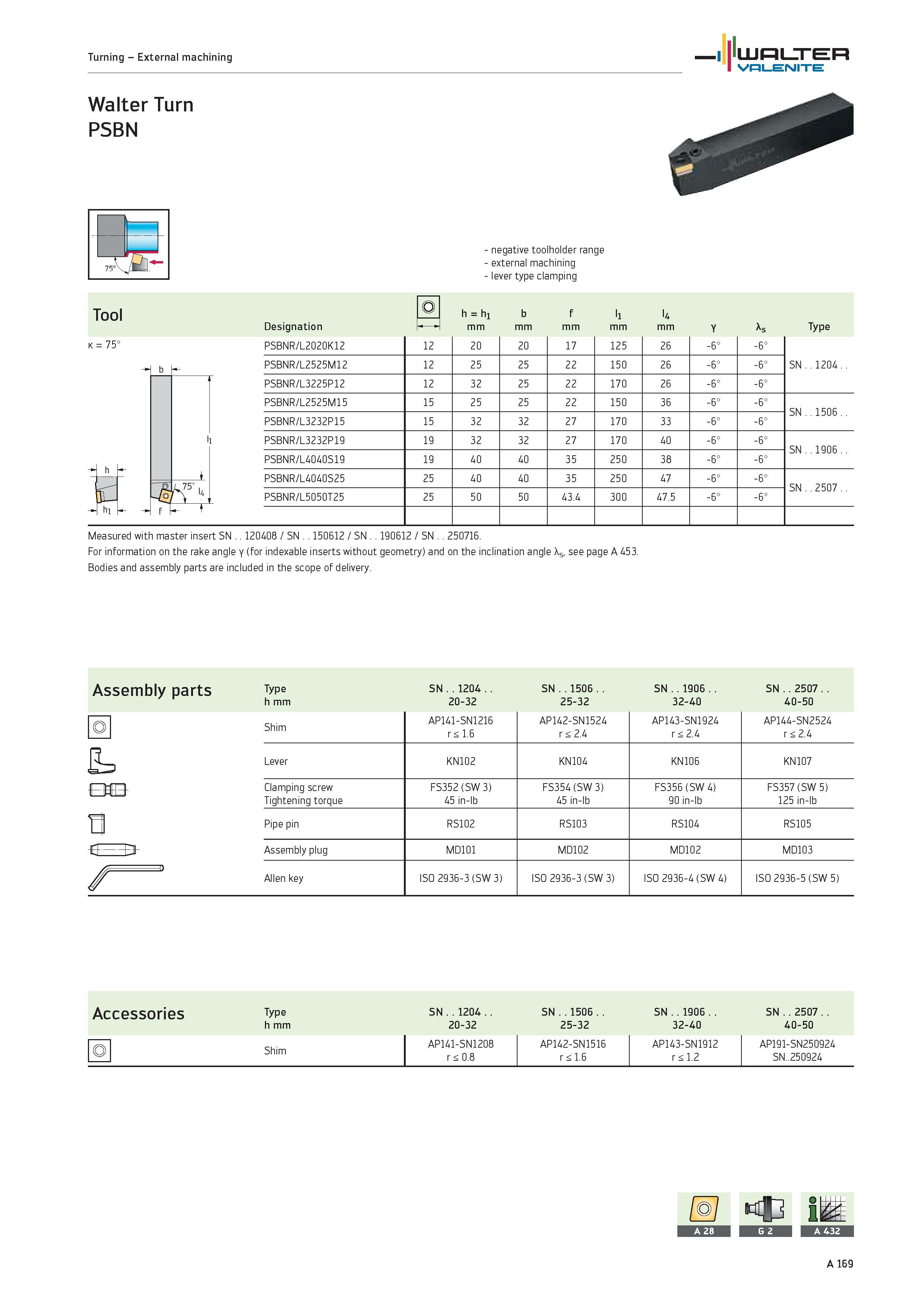

Turning External machining WALTER Valenite negative toolholder range external machining lever type clamping Tool Designation LJ h h1 mm b mm f mm l1 mm l4 mm Y As Type K 75° PSBNR/L2020K12 12 20 20 17 125 26 -6° -6° b PSBNR/L2525M12 12 25 25 22 150 26 -6° -6° SN .1204. PSBNR/L3225P12 12 32 25 22 170 26 -6° -6° PSBNR/L2525M15 15 25 25 22 150 36 -6° -6° SN .1506. PSBNR/L3232P15 15 32 32 27 170 33 -6° -6° PSBNR/L3232P19 19 32 32 27 170 40 -6° -6° SN .1906. h k PSBNR/L4040S19 19 40 40 35 250 38 -6° -6° PSBNR/L4040S25 25 40 40 35 250 47 X SN .2507. H PSBNR/L5050T25 25 50 50 43.4 300 47.5 -6° -6° rhi k f Measured with master insert SN 120408 / SN 150612 / SN 190612 / SN 250716. For information on the rake angle y (for indexable inserts without geometry) and on the inclination angle Xs, see page A 453. Bodies and assembly parts are included in the scope of delivery. SN 1204 SN 1506 SN 1906 SN 2507 20-32 25-32 32-40 40-50 Shim AP141-SN1216 r < 1.6 AP142-SN1524 r < 2.4 AP143-SN1924 r < 2.4 AP144-SN2524 r < 2.4 JL Lever KN102 KN104 KN106 KN107 Clamping screw Tightening torque FS352 (SW 3) 45 in-lb FS354 (SW 3) 45 in-lb FS356 (SW 4) 90 in-lb FS357 (SW 5) 125 in-lb a Pipe pin RS102 RS103 RS104 RS105 -C+- ES- Assembly plug MD101 MD102 MD102 MD103 / Allen key ISO 2936-3 (SW 3) ISO 2936-3 (SW 3) ISO 2936-4 (SW 4) ISO 2936-5 (SW 5) Assembly parts Type h mm Accessories Type SN 1204 SN 1506 SN 1906 SN 2507 h mm 20-32 25-32 32-40 40-50 Shim AP141-SN1208 r < 0.8 AP142-SN1516 r < 1.6 AP143-SN1912 r < 1.2 AP191-SN250924 SN..250924
