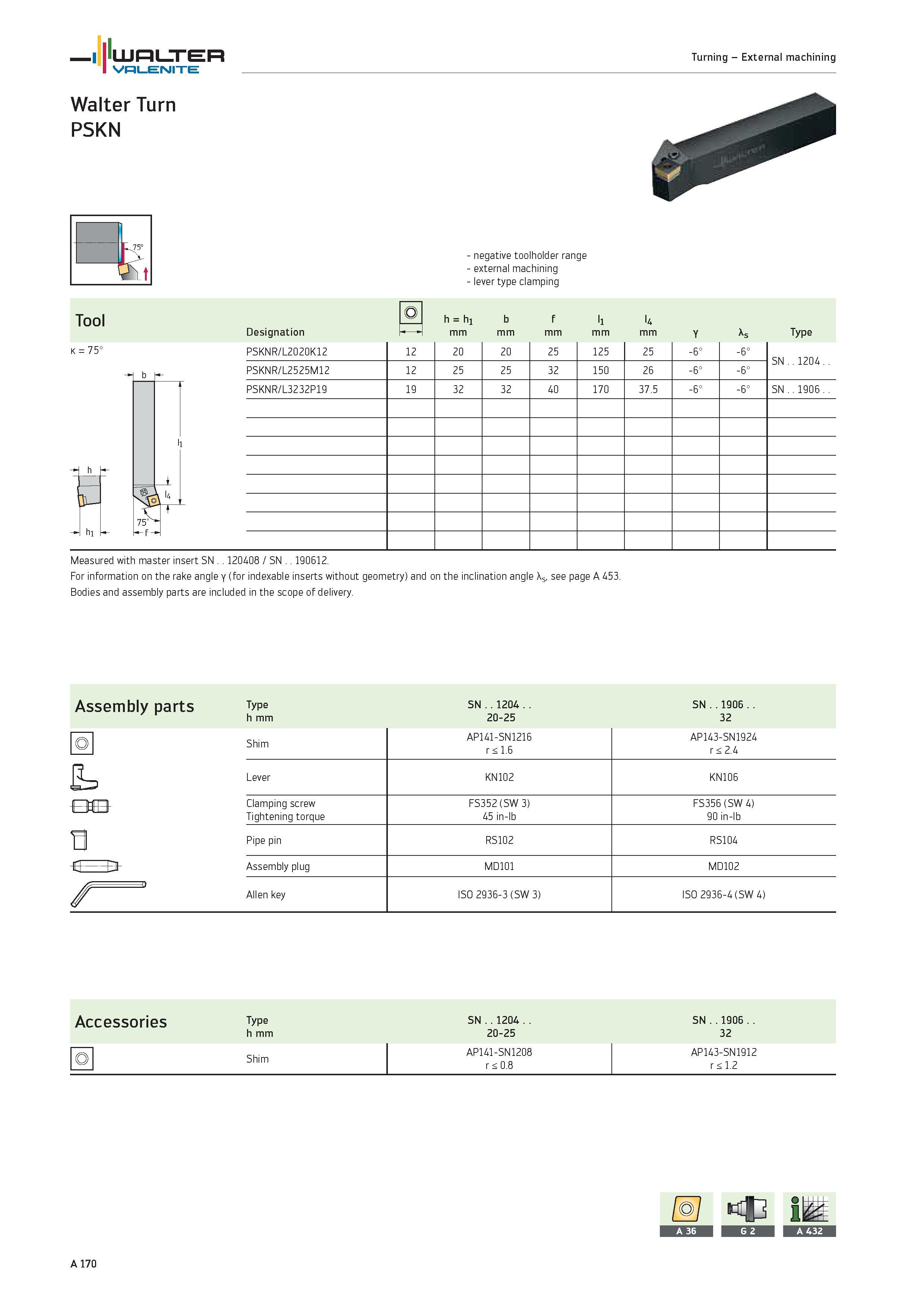

WALTER Valenite Turning External machining Walter Turn PSKN k 75° h 3M hi -f- negative toolholder range external machining lever type clamping Tool o h h1 b f l1 l4 Designation mm Y As Type PSKNR/L2020K12 12 20 20 25 125 25 -6° -6° SN .1204.. PSKNR/L2525M12 12 25 25 32 150 26 -6° -6° PSKNR/L3232P19 19 32 32 40 170 37.5 -6° -6° SN .1906.. Measured with master insert SN 120408 / SN 190612. For information on the rake angle y (for indexable inserts without geometry) and on the inclination angle Xs, see page A 453. Bodies and assembly parts are included in the scope of delivery. b Assembly parts Type h mm SN 1204 20-25 SN 1906 32 Shim AP141-SN1216 r < 1.6 AP143-SN1924 r < 2.4 JL Lever KN102 KN106 -RBFH- Clamping screw FS352 (SW 3) FS356 (SW 4) Tightening torque 45 in-lb 90 in-lb n Pipe pin RS102 RS104 -t+- ES- Assembly plug MD101 MD102 / Allen key ISO 2936-3 (SW 3) ISO 2936-4 (SW 4) Accessories Type SN 1204 SN 1906 h mm 20-25 32 AP141-SN1208 AP143-SN1912 Shim r < 0.8 r < 1.2 A 170
