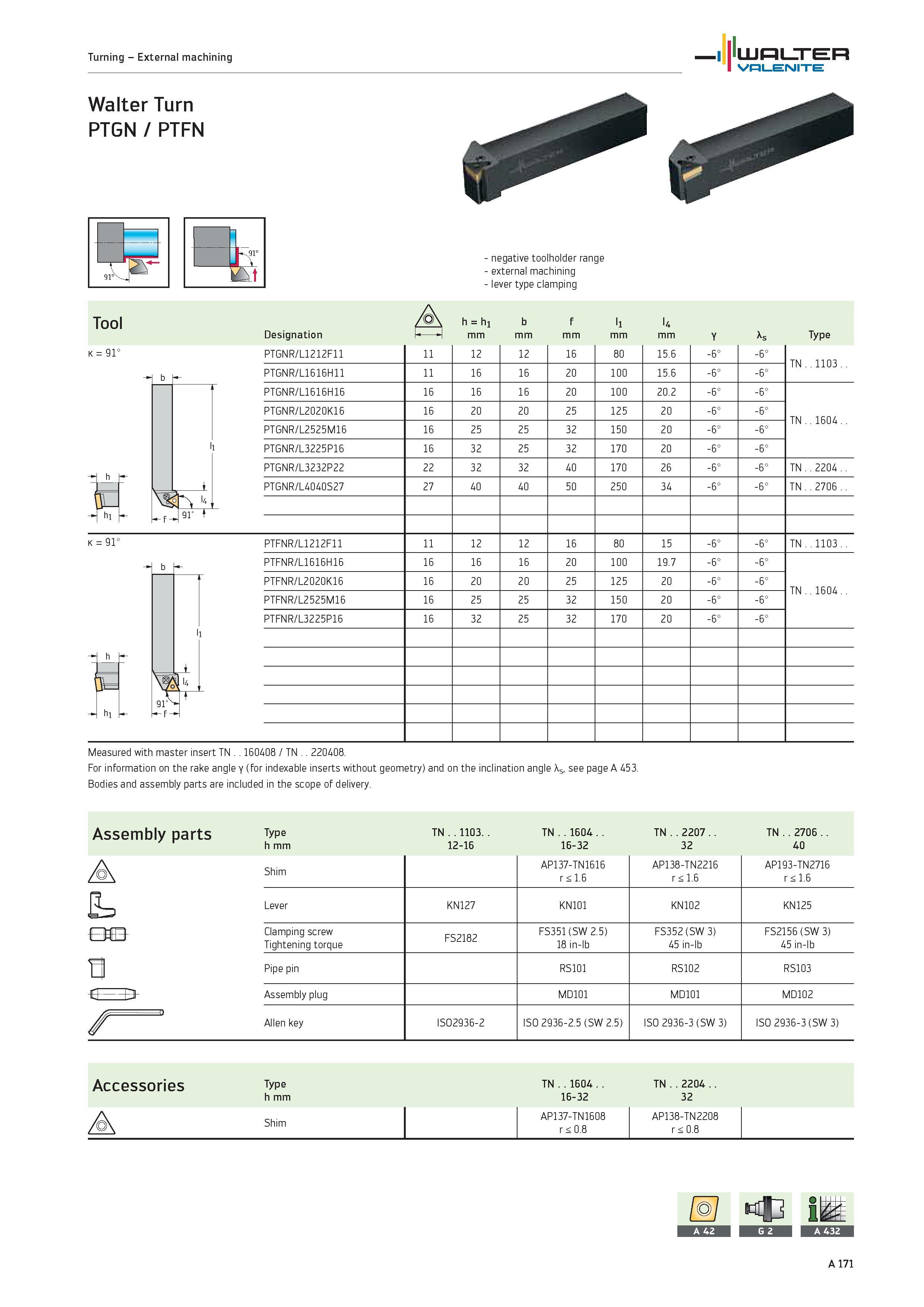

Turning External machining WALTER Valenite Walter Turn PTGN / PTFN y pr K 91° negative toolholder range external machining lever type clamping Tool A h=h1 b f l1 l4 Designation 1- mm Y As Type PTGNR/L1212F11 11 12 12 16 80 15.6 -6° -6° TN .1103.. PTGNR/L1616H11 11 16 16 20 100 15.6 -6° -6° PTGNR/L1616H16 16 16 16 20 100 20.2 -6° -6° TN .1604.. PTGNR/L2020K16 16 20 20 25 125 20 -6° -6° PTGNR/L2525M16 16 25 25 32 150 20 -6° -6° PTGNR/L3225P16 16 32 25 32 170 20 -6° -6° PTGNR/L3232P22 22 32 32 40 170 26 -6° -6° TN 2204 PTGNR/L4040S27 27 40 40 50 250 34 -6° -6° TN .2706. PTFNR/L1212F11 11 12 12 16 80 15 -6° -6° TN .1103.. PTFNR/L1616H16 16 16 16 20 100 19.7 -6° -6° TN .1604.. PTFNR/L2020K16 16 20 20 25 125 20 -6° -6° PTFNR/L2525M16 16 25 25 32 150 20 -6° -6° PTFNR/L3225P16 16 32 25 32 170 20 -6° -6° K 91° hi Measured with master insert TN 160408 / TN 220408. For information on the rake angle y (for indexable inserts without geometry) and on the inclination angle Xs, see page A 453. Bodies and assembly parts are included in the scope of delivery. Assembly parts Type h mm TN 1103. 12-16 TN 1604 16-32 TN 2207 32 TN 2706 40 A Shim AP137-TN1616 r < 1.6 AP138-TN2216 r < 1.6 AP193-TN2716 r < 1.6 JL Lever KN127 KN101 KN102 KN125 EttB Clamping screw Tightening torque FS2182 FS351 (SW 2.5) 18 in-lb FS352 (SW 3) 45 in-lb FS2156 (SW 3) 45 in-lb n Pipe pin RS101 RS102 RS103 h> Assembly plug MD101 MD101 MD102 ‘ Allen key ISO2936-2 ISO 2936-2.5 (SW 2.5) ISO 2936-3 (SW 3) ISO 2936-3 (SW 3) Accessories Type TN ..1604 TN 2204 h mm 16-32 32 Shim AP137-TN1608 AP138-TN2208 r < 0.8 r < 0.8 A 171
