96 Каталог TAEGUTEC 2013 Сменные режущие токарные пластины для металлообработки Стр.96

Каталог TAEGUTEC 2013 Indexable turning inserts Стр. 96 0096 ENG Lab2u

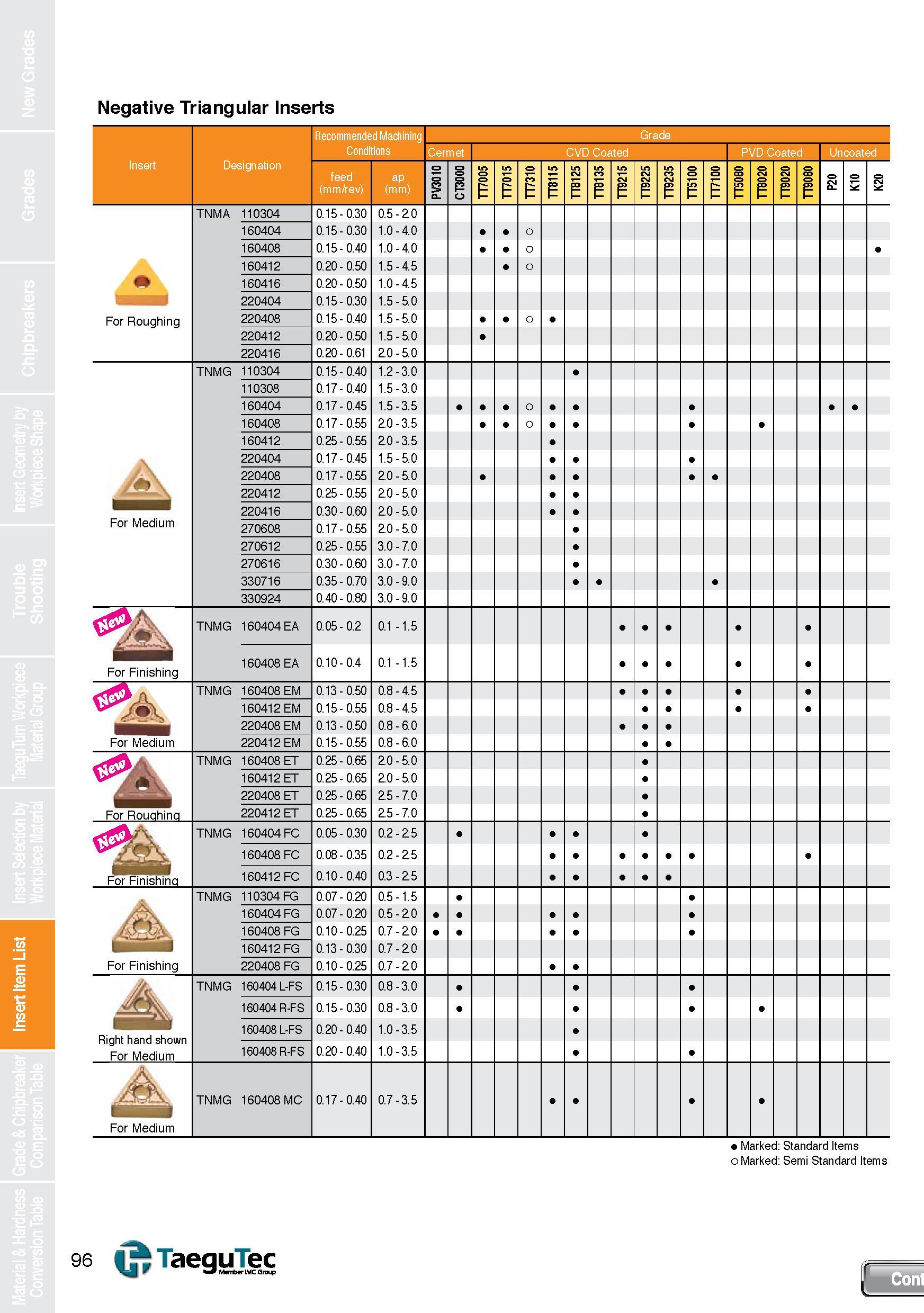

Insert Item List Negative Triangular Inserts Recommended Machining Grade I Conditions Cermet CVD Coated PVD Coated Un coated 1 Insert Designation feed (mm/rev) ap (mm) 1 1 P 2 i m TNMA 110304 0.15-0.30 0.5-2.0 160404 0.15-0.30 1.0-4.0 0 160408 0.15-0.40 1.0-4.0 o 160412 0.20-0.50 1.5-4.5 o 160416 0.20-0.50 1.0-4.5 220404 0.15-0.30 1.5-5.0 For Roughing 220408 0.15-0.40 1.5-5.0 o 220412 0.20-0.50 1.5-5.0 220416 0.20-0.61 2.0-5.0 TNMG 110304 0.15-0.40 1.2-3.0 110308 0.17-0.40 1.5-3.0 160404 0.17-0.45 1.5-3.5 0 160408 0.17-0.55 2.0-3.5 0 160412 0.25-0.55 2.0-3.5 220404 0.17-0.45 1.5-5.0 220408 0.17-0.55 2.0-5.0 220412 0.25-0.55 2.0-5.0 For Medium 220416 0.30-0.60 2.0-5.0 270608 0.17-0.55 2.0-5.0 270612 0.25-0.55 3.0-7.0 270616 0.30-0.60 3.0-7.0 330716 0.35-0.70 3.0-9.0 330924 040-0.80 3.0-9.0 TNMG 160404 EA 0.05-0.2 0.1-1.5 For Finishing 160408 EA 0.10-0.4 0.1-1.5 TNMG 160408 EM 0.13-0.50 0.8-4.5 160412 EM 0.15-0.55 0.8-4.5 For Medium 220408 EM 0.13-0.50 0.8-6.0 220412 EM 0.15-0.55 0.8-6.0 TNMG 160408 ET 0.25-0.65 2.0-5.0 160412 ET 0.25-0.65 2.0-5.0 220408 ET 0.25-0.65 2.5-7.0 For Rouahina 220412 ET 0.25-0.65 2.5-7.0 TNMG 160404 FC 0.05-0.30 0.2-2.5 160408 FC 0.08-0.35 0.2-2.5 mmmm For Finishina 160412 FC 0.10-0.40 0.3-2.5 A TNMG 110304 FG 0.07-0.20 0.5-1.5 160404 FG 0.07-0.20 0.5-2.0 160408 FG 0.10-0.25 0.7-2.0 fiM 160412 FG 0.13-0.30 0.7-2.0 For Finishing 220408 FG 0.10-0.25 0.7-2.0 A TNMG 160404 L-FS 0.15-0.30 0.8-3.0 160404 R-FS 0.15-0.30 0.8-3.0 M Right hand shown For Medium 160408 L-FS 0.20-0.40 1.0-3.5 160408 R-FS 0.20-0.40 1.0-3.5 For Medium TNMG 160408 MC 0.17-0.40 0.7-3.5 Marked: Standard Items o Marked: Semi Standard Items 96 (j TaeguTec V MMnrtxrlMCQroip
