97 Каталог TAEGUTEC 2013 Сменные режущие токарные пластины для металлообработки Стр.97

Каталог TAEGUTEC 2013 Indexable turning inserts Стр. 97 0097 ENG Lab2u

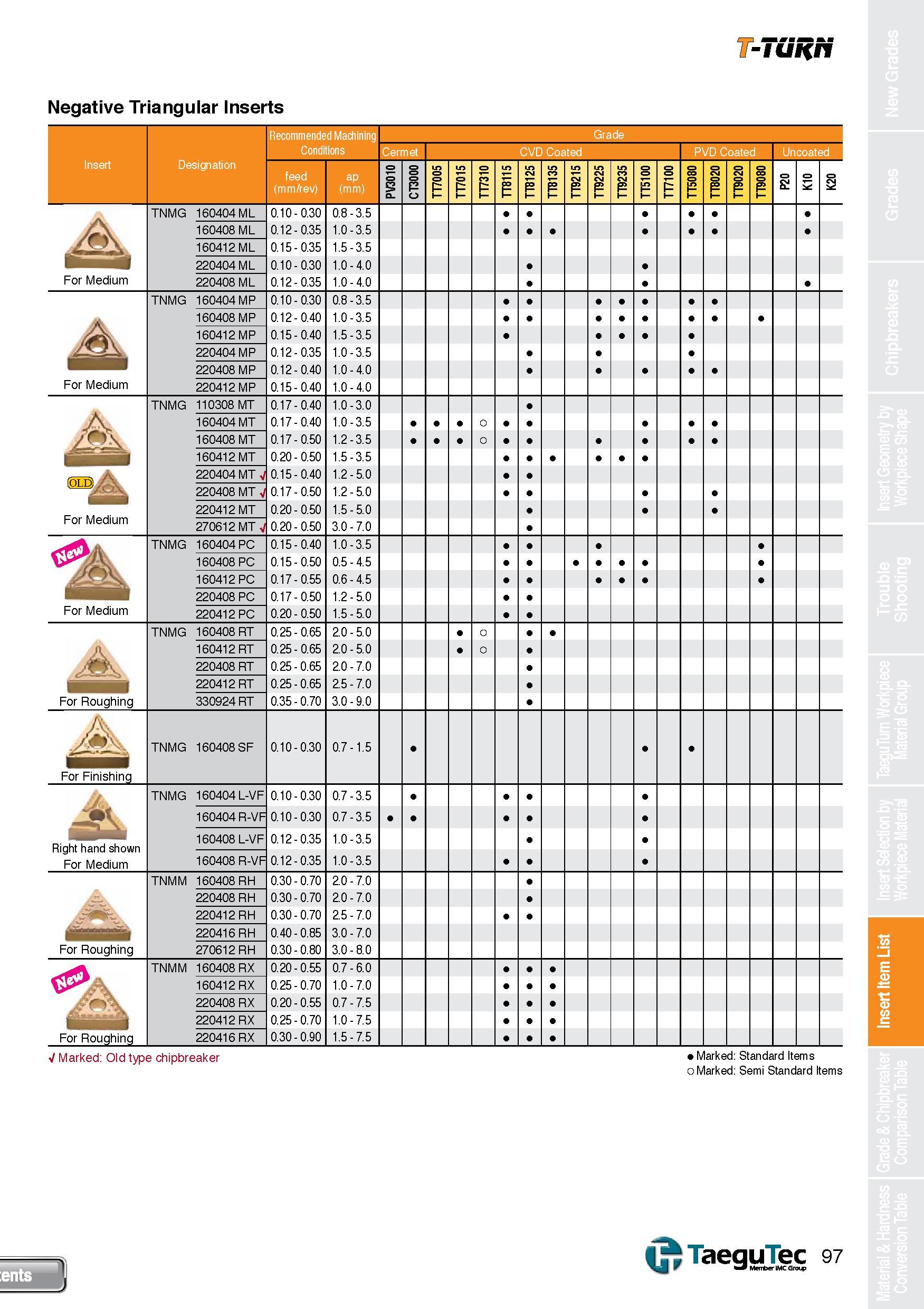

T-TURN Negative Triangular Inserts Recommended Machining Grade I Conditions Cermet CVD Coated PVD Coated Un coated 1 Insert Designation feed (mm/rev) ap (mm) 1 i 2 i A TNMG 160404 ML 0.10-0.30 0.8-3.5 160408 ML 0.12-0.35 1.0-3.5 160412 ML 0.15-0.35 1.5-3.5 220404 ML 0.10-0.30 1.0-4.0 For Medium 220408 ML 0.12-0.35 1.0-4.0 For Medium TNMG 160404 MP 0.10-0.30 0.8-3.5 160408 MP 0.12-0.40 1.0-3.5 160412 MP 0.15-0.40 1.5-3.5 220404 MP 0.12-0.35 1.0-3.5 220408 MP 0.12-0.40 1.0-4.0 220412 MP 0.15-0.40 1.0-4.0 TNMG 110308 MT 0.17-0.40 1.0-3.0 160404 MT 0.17-0.40 1.0-3.5 0 160408 MT 0.17-0.50 1.2-3.5 0 w 1 160412 MT 0.20-0.50 1.5-3.5 (OLD) . 220404 MT V 0.15-0.40 1.2-5.0 220408 MT V 0.17-0.50 1.2-5.0 For Medium 220412 MT 0.20-0.50 1.5-5.0 270612 MTV 0.20-0.50 3.0-7.0 TNMG 160404 PC 0.15-0.40 1.0-3.5 160408 PC 0.15-0.50 0.5-4.5 160412 PC 0.17-0.55 0.6-4.5 Hi 220408 PC 0.17-0.50 1.2-5.0 For Medium 220412 PC 0.20-0.50 1.5-5.0 y£k TNMG 160408 RT 0.25-0.65 2.0-5.0 0 160412 RT 0.25-0.65 2.0-5.0 0 220408 RT 0.25-0.65 2.0-7.0 220412 RT 0.25-0.65 2.5-7.0 For Roughing 330924 RT 0.35-0.70 3.0-9.0 For Finishing TNMG 160408 SF 0.10-0.30 0.7-1.5 Right hand shown For Medium TNMG 160404 L-VF 0.10-0.30 0.7-3.5 160404 R-VF 0.10-0.30 0.7-3.5 160408 L-VF 0.12-0.35 1.0-3.5 160408 R-VF 0.12-0.35 1.0-3.5 TNMM 160408 RH 0.30-0.70 2.0-7.0 220408 RH 0.30-0.70 2.0-7.0 220412 RH 0.30-0.70 2.5-7.0 lOSSiSil 220416 RH 0.40-0.85 3.0-7.0 For Roughing 270612 RH 0.30-0.80 3.0-8.0 TNMM 160408 RX 0.20-0.55 0.7-6.0 160412 RX 0.25-0.70 1.0-7.0 220408 RX 0.20-0.55 0.7-7.5 220412 RX 0.25-0.70 1.0-7.5 For Roughing 220416 RX 0.30-0.90 1.5-7.5 V Marked: Old type chipbreaker Marked: Standard Items o Marked: Semi Standard Items U" TaeguTec 97 W MeiTtjerlMCQroU) Insert Item List
