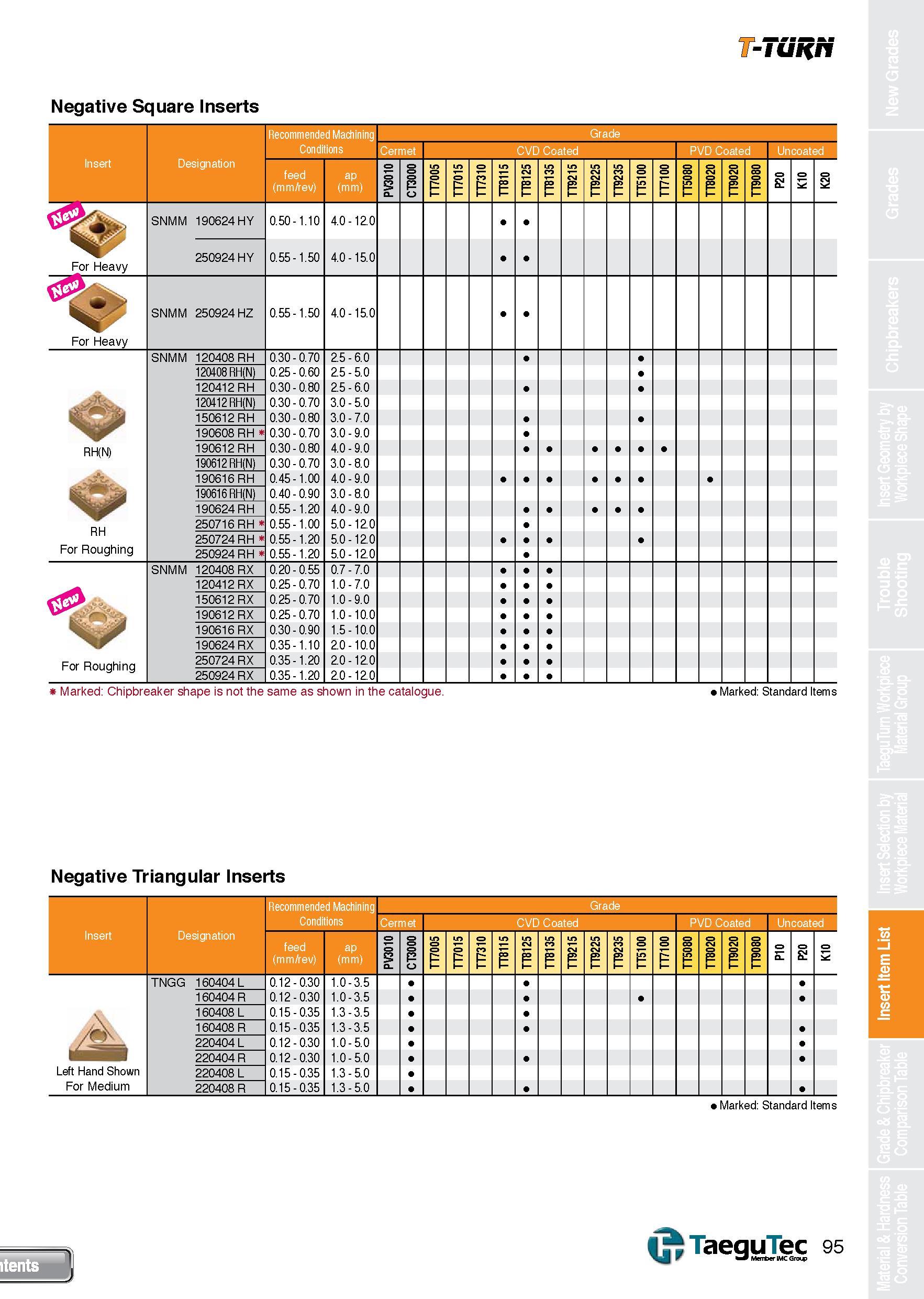

T-TURN Negative Square Inserts Recommended Machining Conditions Cermet Insert Designation feed (mm/rev) ap (mm) 1 P 0 F= 1 i F= 1 For Heavy SNMM 190624 HY 0.50-1.10 4.0-12.0 250924 HY 0.55-1.50 4.0-15.0 For Heavy SNMM 250924 HZ 0.55-1.50 4.0-15.0 RH(N) RH For Roughing SNMM 120408 RH 0.30-0.70 2.5-6.0 120408 RH(N) 0.25-0.60 2.5-5.0 120412 RH 0.30-0.80 2.5-6.0 120412 RH(N) 0.30-0.70 3.0-5.0 150612 RH 0.30-0.80 3.0-7.0 190608 RH 0.30-0.70 3.0-9.0 190612 RH 0.30-0.80 4.0-9.0 190612 RH(N) 0.30-0.70 3.0-8.0 190616 RH 0.45-1.00 4.0-9.0 190616 RH(N) 0.40-0.90 3.0-8.0 190624 RH 0.55-1.20 4.0-9.0 250716 RH 0.55-1.00 5.0-12.0 250724 RH 0.55-1.20 5.0-12.0 250924 RH 0.55-1.20 5.0-12.0 For Roughing SNMM 120408 RX 0.20-0.55 0.7-7.0 120412 RX 0.25-0.70 1.0-7.0 150612 RX 0.25-0.70 1.0-9.0 190612 RX 0.25-0.70 1.0-10.0 190616 RX 0.30-0.90 1.5-10.0 190624RX 0.35-1.10 2.0-10.0 250724 RX 0.35-1.20 2.0-12.0 250924 RX 0.35-1.20 2.0-12.0 Marked: Chipbreaker shape is not the same as shown in the catalogue. Marked: Standard Items Negative Triangular Inserts Recommended Machining Grade Conditions Cermet CVD Coated PVD Coated Un coated Insert Designation feed (mm/rev) ap (mm) 1 i P y qI 2 TNGG 160404 L 0.12-0.30 1.0-3.5 160404R 0.12-0.30 1.0-3.5 160408L 0.15-0.35 1.3-3.5 160408 R 0.15-0.35 1.3-3.5 220404 L 0.12-0.30 1.0-5.0 Ml 220404 R 0.12-0.30 1.0-5.0 Left Hand Shown For Medium 220408 L 0.15-0.35 1.3-5.0 220408 R 0.15-0.35 1.3-5.0 Marked: Standard Items U" TaeguTec 95 W MeiTtjerlMCQroU) Insert Item List
