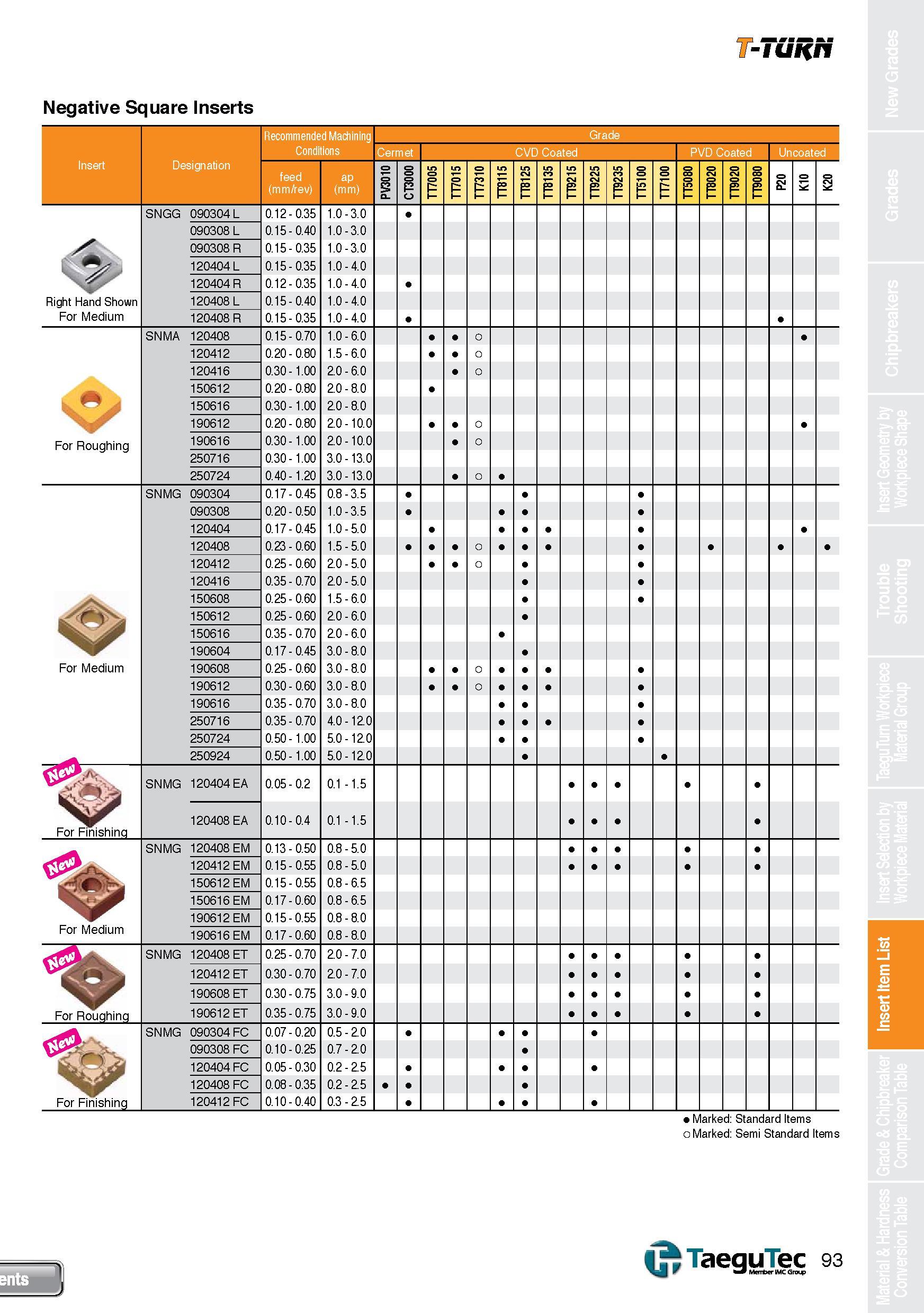

T-TURN Negative Square Inserts Recommended Machining Conditions ( Right Hand Shown For Medium Designation feed (mm/rev) ap (mm) 1 18 PI 1 E 1 PI 1 PI 1 PI 1 P" 1 PI 1 PI 1 PI 1 PI 1 a 1 i SNGG 090304 L 0.12 0.35 1.0 3.0 090308 L 0.15 0.40 1.0 3.0 090308 R 0.15 0.35 1.0 3.0 120404L 0.15 0.35 1.0 4.0 120404R 0.12 0.35 1.0 4.0 120408L 0.15 0.40 1.0 4.0 120408R 0.15 0.35 1.0 4.0 SNMA 120408 0.15 0.70 1.0 6.0 0 120412 0.20 0.80 1.5 6.0 0 120416 0.30 1.00 2.0 6.0 0 150612 0.20 0.80 2.0 8.0 150616 0.30 1.00 2.0 8.0 190612 0.20 0.80 2.0 10.0 0 190616 0.30 1.00 2.0 10.0 0 250716 0.30 1.00 3.0 13.0 250724 0.40 1.20 3.0 13.0 0 SNMG 090304 0.17 0.45 0.8 3.5 090308 0.20 0.50 1.0 3.5 120404 0.17 0.45 1.0 5.0 120408 0.23 0.60 1.5 5.0 0 120412 0.25 0.60 2.0 5.0 0 120416 0.35 0.70 2.0 5.0 150608 0.25 0.60 1.5 6.0 150612 0.25 0.60 2.0 6.0 150616 0.35 0.70 2.0 6.0 190604 0.17 0.45 3.0 8.0 190608 0.25 0.60 3.0 8.0 0 190612 0.30 0.60 3.0 8.0 0 190616 0.35 0.70 3.0 8.0 250716 0.35 0.70 4.0 12.0 250724 0.50 1.00 5.0 12.0 250924 0.50 1.00 5.0 12.0 SNMG 120404 EA 0.05 0.2 0.1 1.5 120408 EA 0.10 0.4 0.1 1.5 SNMG 120408 EM 0.13 0.50 0.8 5.0 120412 EM 0.15 0.55 0.8 5.0 150612 EM 0.15 0.55 0.8 6.5 150616 EM 0.17 0.60 0.8 6.5 190612 EM 0.15 0.55 0.8 8.0 190616 EM 0.17 0.60 0.8 8.0 SNMG 120408 ET 0.25 0.70 2.0 7.0 120412 ET 0.30 0.70 2.0 7.0 190608 ET 0.30 0.75 3.0 9.0 190612 ET 0.35 0.75 3.0 9.0 SNMG 090304 FC 0.07 0.20 0.5 2.0 090308 FC 0.10 0.25 0.7 2.0 120404 FC 0.05 0.30 0.2 2.5 120408 FC 0.08 0.35 0.2 2.5 120412 FC 0.10 0.40 0.3 2.5 For Roughing For Finishing For Roughing For Finishing Marked: Standard Items o Marked: Semi Standard Items ents U" TaeguTec 93 W MeiTtjerlMCQroU) Insert Item List
