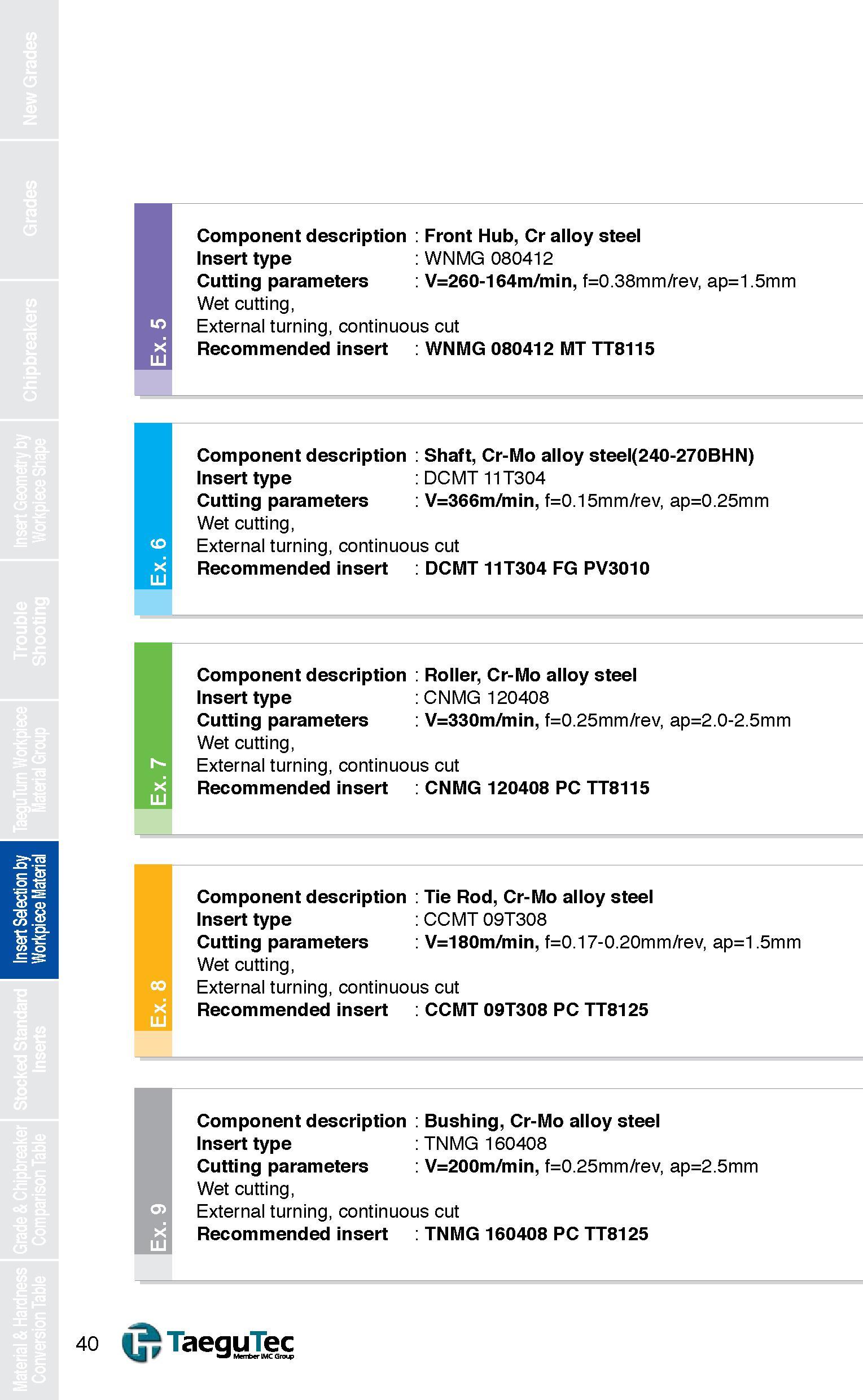

Component description Front Hub, Cr alloy steel Insert type WNMG 080412 Cutting parameters V=260-164m/min, f=0.38mm/rev, ap=1.5mm Wet cutting, External turning, continuous cut X LU Recommended insert WNMG 080412 MT TT8115 Component description Shaft, Cr-Mo alloy steel(240-270BHN) Insert type DCMT 11T304 Cutting parameters V=366m/min, f=0.15mm/rev, ap=0.25mm Wet cutting, <0 External turning, continuous cut X LU Recommended insert DCMT 11T304 FG PV3010 Component description Roller, Cr-Mo alloy steel Insert type CNMG 120408 Cutting parameters V=330m/min, f=0.25mm/rev, ap=2.0-2.5mm Wet cutting, External turning, continuous cut Bjl Recommended insert CNMG 120408 PC TT8115 I Component description Tie Rod, Cr-Mo alloy steel Insert type CCMT 09T308 Cutting parameters V=180m/min, f=0.17-0.20mm/rev, ap=1 5mm Wet cutting, External turning, continuous cut Recommended insert CCMT 09T308 PC TT8125 Component description Bushing, Cr-Mo alloy steel Insert type TNMG 160408 Cutting parameters V=200m/min, f=0.25mm/rev, ap=2.5mm Wet cutting, o> External turning, continuous cut & Recommended insert TNMG 160408 PC TT8125 TaeguTec W fc Men erlMCGrot4>
