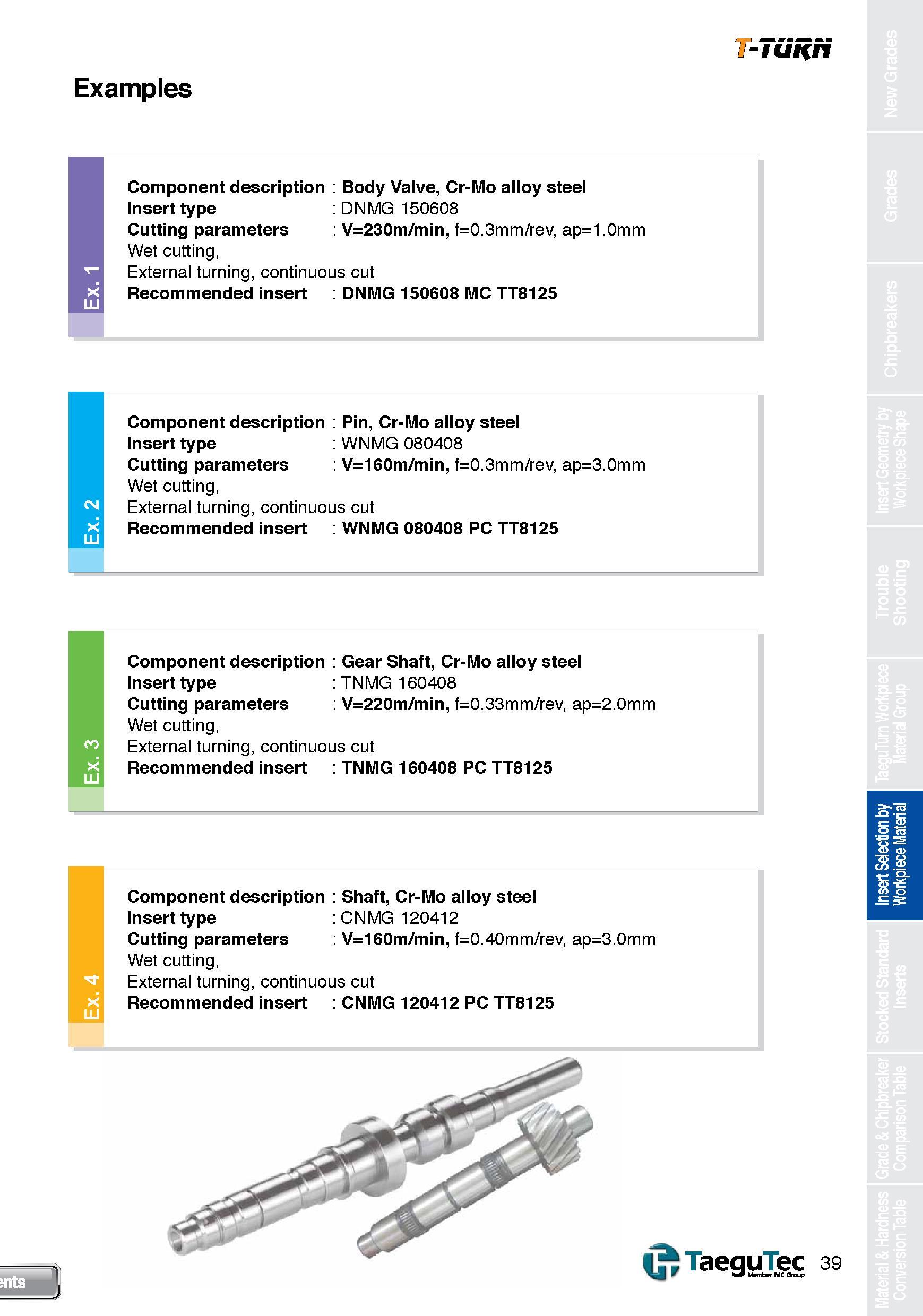

T-TURN Examples Component description Body Valve, Cr-Mo alloy steel Insert type DNMG 150608 Cutting parameters V=230m/min, f=0.3mm/rev, ap=1.0mm Wet cutting, External turning, continuous cut Recommended insert DNMG 150608 MC TT8125 Component description Pin, Cr-Mo alloy steel Insert type WNMG 080408 Cutting parameters V=160m/min, f=0.3mm/rev, ap=3.0mm Wet cutting, External turning, continuous cut Recommended insert WNMG 080408 PC TT8125 Component description Gear Shaft, Cr-Mo alloy steel Insert type TNMG 160408 Cutting parameters V=220m/min, f=0.33mm/rev, ap=2.0mm Wet cutting, External turning, continuous cut Recommended insert TNMG 160408 PC TT8125 Component description Shaft, Cr-Mo alloy steel Insert type CNMG 120412 Cutting parameters V=160m/min, f=0.40mm/rev, ap=3.0mm Wet cutting, External turning, continuous cut Recommended insert CNMG 120412 PC TT8125 U TaeguTec 39 V Mcntxr IMC Grot Insert Selection by Workpiece Material
