37 Каталог TAEGUTEC 2013 Сменные режущие токарные пластины для металлообработки Стр.37

Каталог TAEGUTEC 2013 Indexable turning inserts Стр. 37 0037 ENG Lab2u

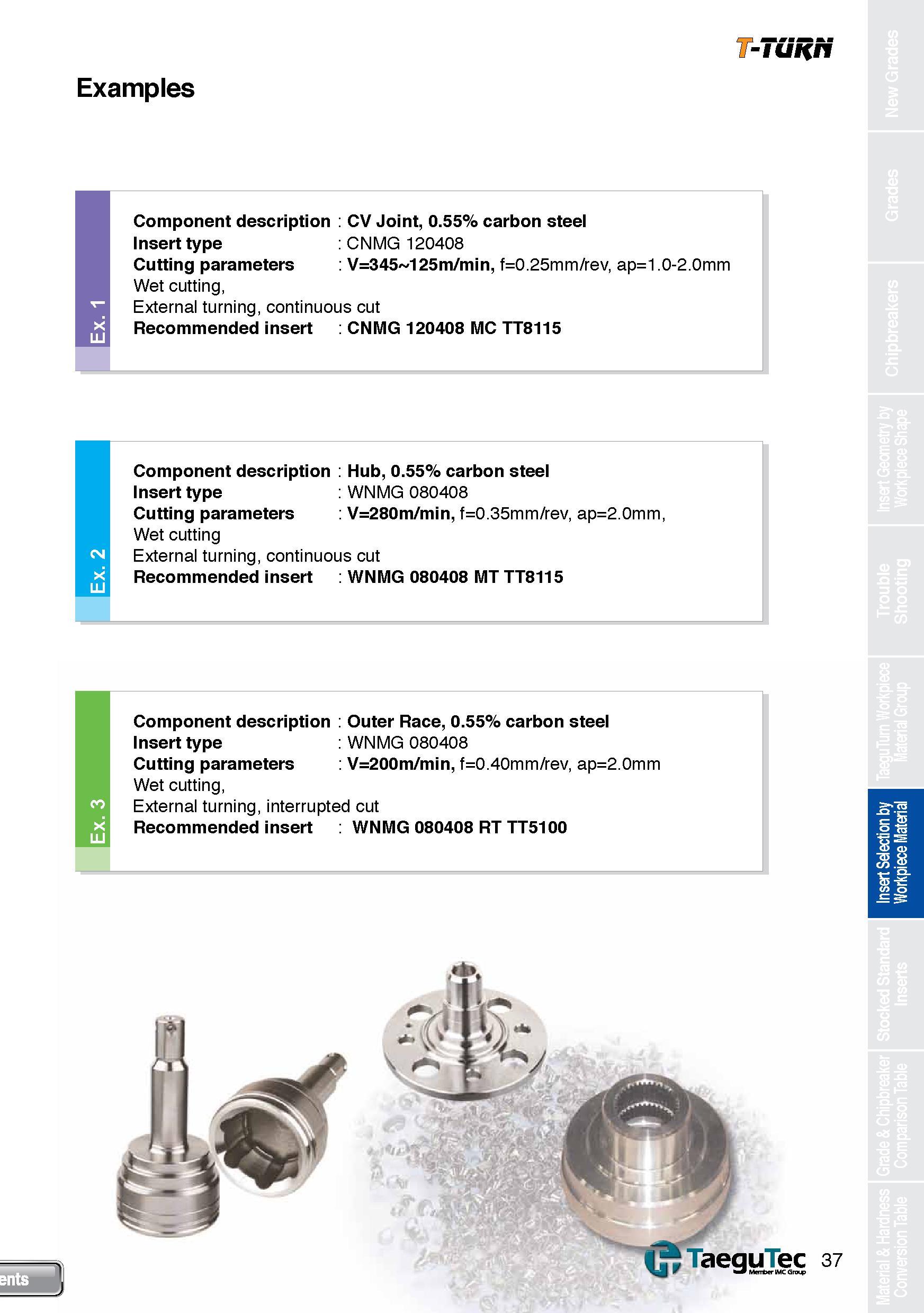

Examples T-TURN Component description CV Joint, 0.55% carbon steel I nsert type C N MG 120408 Cutting parameters V=345 125m/min, f=0.25mm/rev, ap=1.0-2.0mm Wet cutting, External turning, continuous cut Recommended insert CNMG 120408 MC TT8115 Component description Hub, 0.55% carbon steel Insert type WNMG 080408 Cutting parameters V=280m/min, f=0.35mm/rev, ap=2.0mm, Wet cutting CM External turning, continuous cut X Recommended insert WNMG 080408 MT TT8115 LD Component description Outer Race, 0.55% carbon steel Insert type WNMG 080408 Cutting parameters V=200m/min, f=0.40mm/rev, ap=2.0mm Wet cutting, External turning, interrupted cut Recommended insert WNMG 080408 RT TT5100 TaeguTec Mentxr 1MC Grot 37 Insert Selection by Workpiece Material
