35 Каталог TAEGUTEC 2013 Сменные режущие токарные пластины для металлообработки Стр.35

Каталог TAEGUTEC 2013 Indexable turning inserts Стр. 35 0035 ENG Lab2u

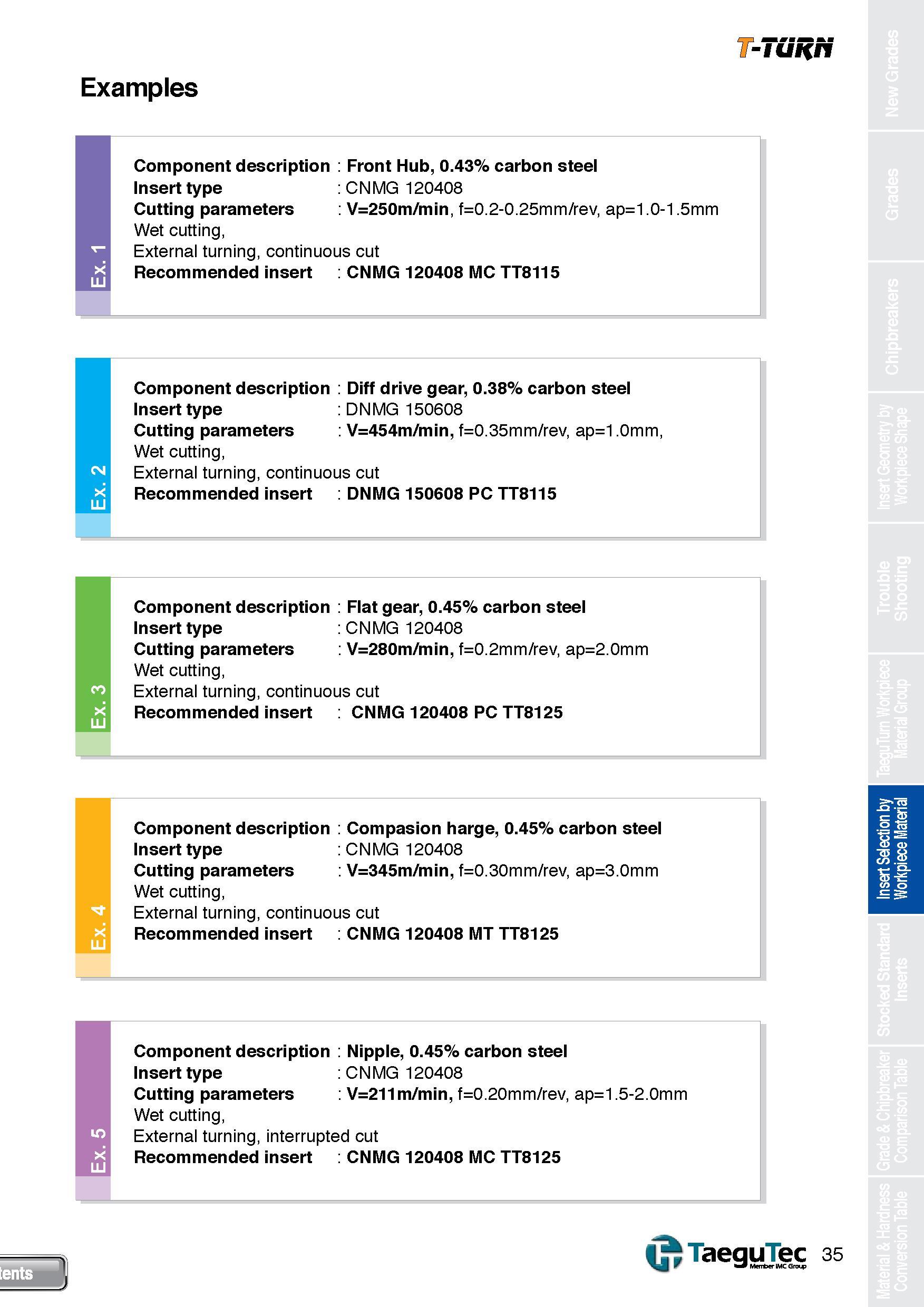

T-TURN Examples Component description Front Hub, 0.43% carbon steel Insert type CNMG 120408 Cutting parameters V=250m/min, f=0.2-0.25mm/rev, ap=1.0-1,5mm Wet cutting, External turning, continuous cut Recommended insert CNMG 120408 MC TT8115 Component description Diff drive gear, 0.38% carbon steel Insert type DNMG 150608 Cutting parameters V=454m/min, f=0.35mm/rev, ap=1 0mm, Wet cutting, External turning, continuous cut Recommended insert DNMG 150608 PC TT8115 Component description Flat gear, 0.45% carbon steel Insert type CNMG 120408 Cutting parameters V=280m/min, f=0.2mm/rev, ap=2.0mm Wet cutting, External turning, continuous cut Recommended insert CNMG 120408 PC TT8125 Component description Compasion harge, 0.45% carbon steel Insert type CNMG 120408 Cutting parameters V=345m/min, f=0.30mm/rev, ap=3.0mm Wet cutting, External turning, continuous cut Recommended insert CNMG 120408 MT TT8125 Component description Nipple, 0.45% carbon steel Insert type CNMG 120408 Cutting parameters V=211m/min, f=0.20mm/rev, ap=1.5-2.0mm Wet cutting, External turning, interrupted cut Recommended insert CNMG 120408 MC TT8125 tents U" TaeguTec 35 W MeiTtjerlMCQroU) Insert Selection by Workpiece Material
