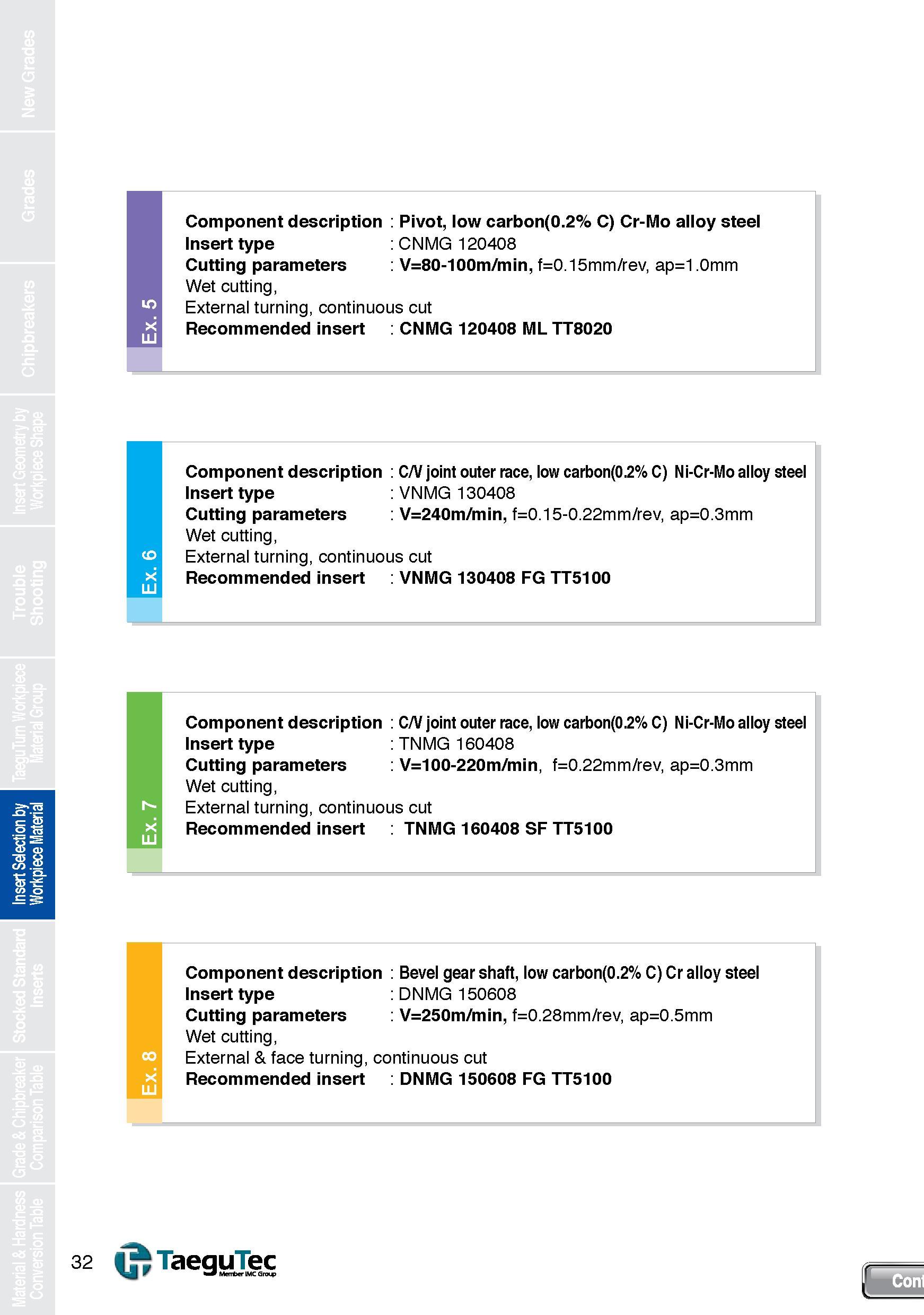

Component description Pivot, low carbon(0.2% C) Cr-Mo alloy steel Insert type CNMG 120408 Cutting parameters V=80-100m/min, f=0.15mm/rev, ap=1.0mm w Wet cutting, External turning, continuous cut >< LU Recommended insert CNMG 120408 ML TT8020 Component description CN joint outer race, low carbon(0.2% C) Ni-Cr-Mo alloy steel Insert type VNMG 130408 Cutting parameters V=240m/min, f=0.15-0.22mm/rev, ap=0.3mm Wet cutting, External turning, continuous cut VNMG 130408 FG TT5100 Component description Insert type Cutting parameters Wet cutting, External turning, continuous cut Recommended insert TNMG 160408 SF TT5100 CN joint outer race, low carbon(0.2% C) Ni-Cr-Mo alloy steel TNMG 160408 V=100-220m/min, f=0.22mm/rev, ap=0.3mm Component description Insert type Cutting parameters Wet cutting, External & face turning, continuous cut Recommended insert DNMG 150608 FG TT5100 Bevel gear shaft, low carbon(0.2% C) Cr alloy steel DNMG 150608 V=250m/min, f=0.28mm/rev, ap=0.5mm TaeguTec W fc Men rlMCGron>
