29 Каталог TAEGUTEC 2013 Сменные режущие токарные пластины для металлообработки Стр.29

Каталог TAEGUTEC 2013 Indexable turning inserts Стр. 29 0029 ENG Lab2u

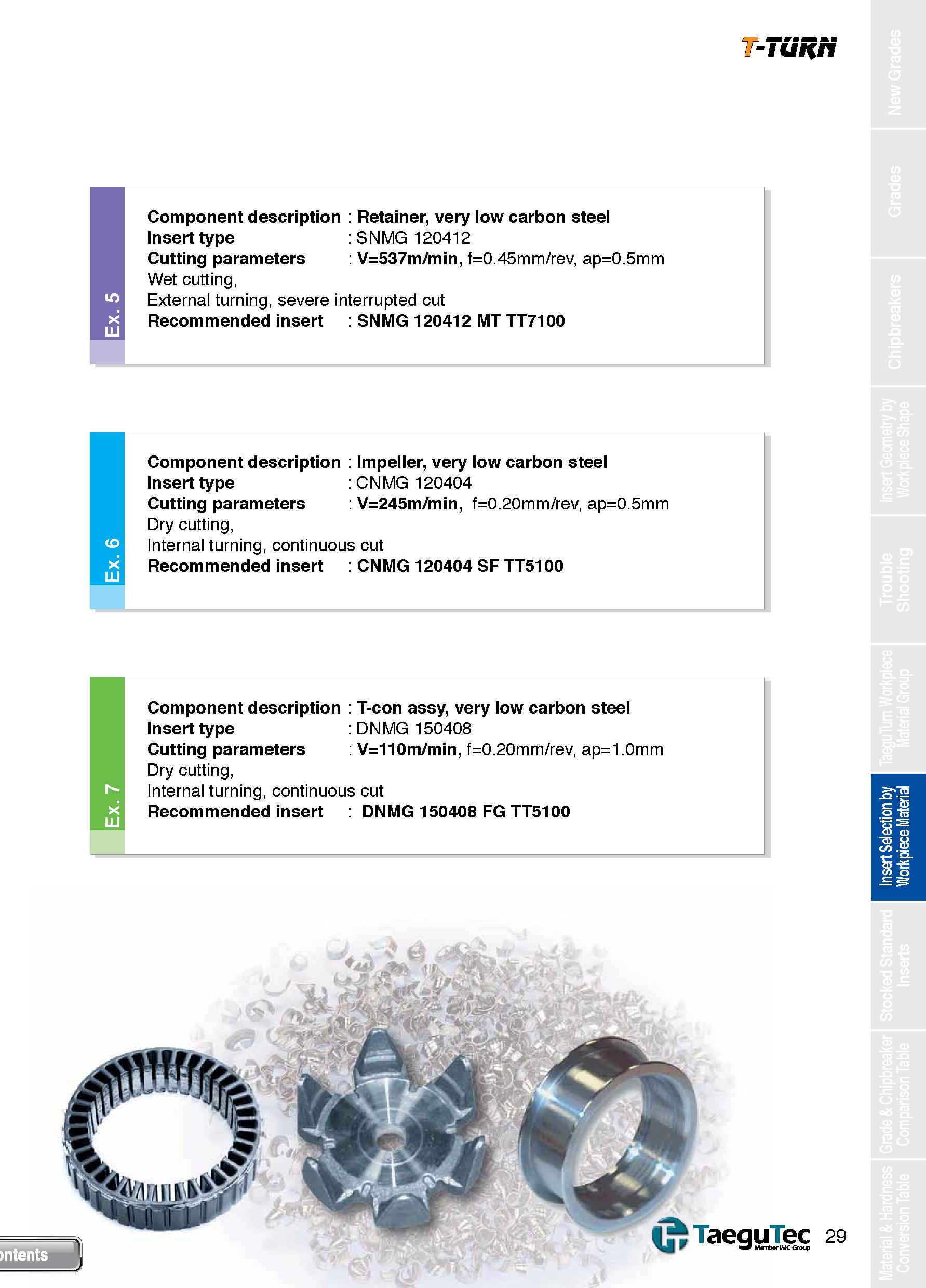

T-TURN Component description Retainer, very low carbon steel Insert type SNMG 120412 Cutting parameters V=537m/min, f=0.45mm/rev, ap=0.5mm Wet cutting, External turning, severe interrupted cut Recommended insert SNMG 120412 MT TT7100 Component description Impeller, very low carbon steel Insert type CNMG 120404 Cutting parameters V=245m/min, f=0.20mm/rev, ap=0.5mm Dry cutting, CD Internal turning, continuous cut >< LD Recommended insert CNMG 120404 SF TT5100 Component description T-con assy, very low carbon steel Insert type DNMG 150408 Cutting parameters V=110m/min, f=0.20mm/rev, ap=1 0mm Dry cutting, Internal turning, continuous cut Recommended insert DNMG 150408 FG TT5100 29 TaeguTec Mentxr IMC Grot Insert Selection by Workpiece Material
