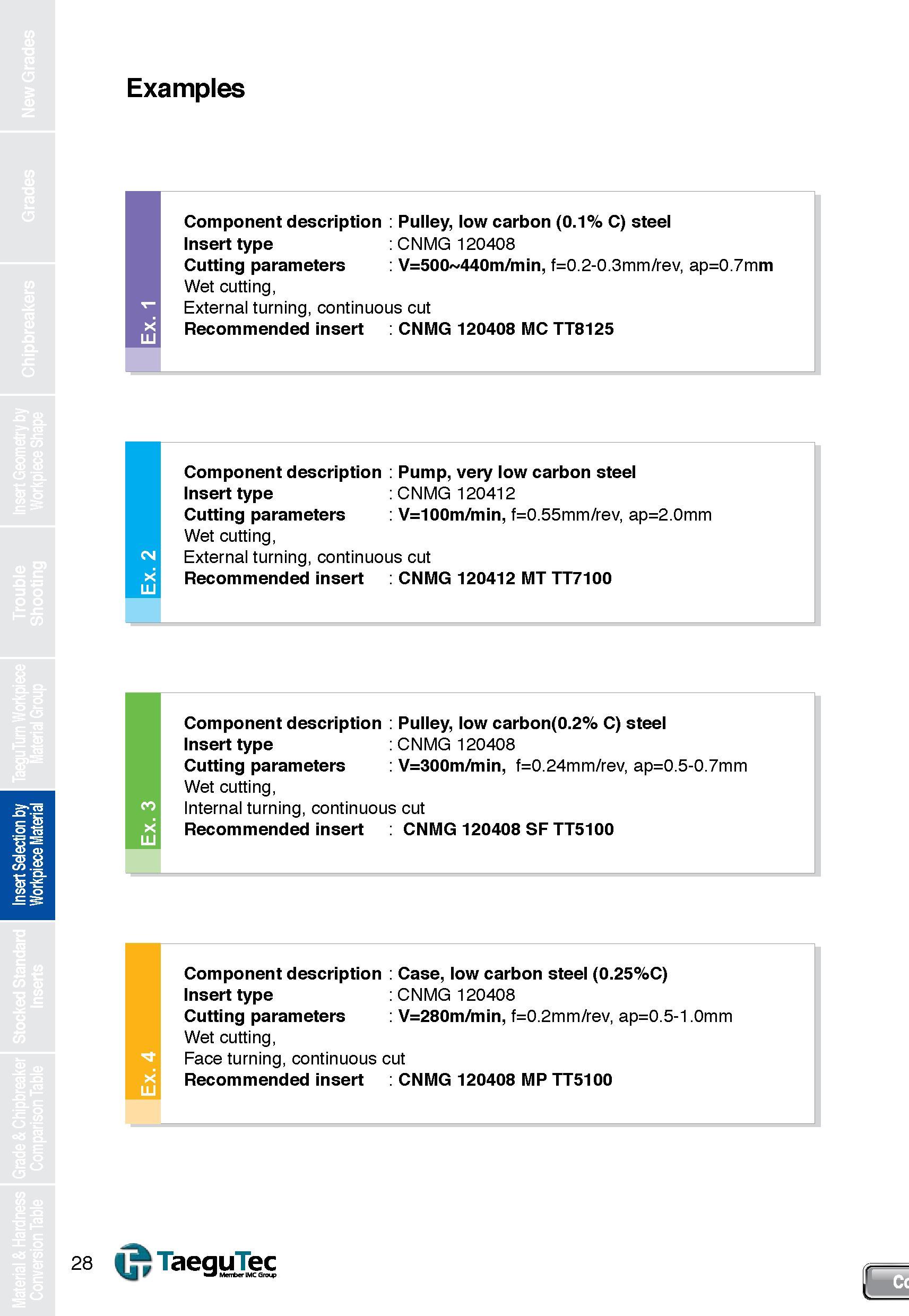

Examples I Component description Pulley, low carbon (0.1% C) steel Insert type CNMG 120408 Cutting parameters V=500 440m/min, f=0.2-0.3mm/rev, ap=0.7mm Wet cutting, External turning, continuous cut Recommended insert CNMG 120408 MC TT8125 Component description Pump, very low carbon steel Insert type CNMG 120412 Cutting parameters V=100m/min, f=0.55mm/rev, ap=2.0mm Wet cutting, External turning, continuous cut CNMG 120412 MT TT7100 Pulley, low carbon(0.2% C) steel CNMG 120408 V=300m/min, f=0.24mm/rev, ap=0.5-0.7mm Component description Insert type Cutting parameters Wet cutting, Internal turning, continuous cut Recommended insert CNMG 120408 SF TT5100 Component description Case, low carbon steel (0.25%C) Insert type CNMG 120408 Cutting parameters V=280m/min, f=0.2mm/rev, ap=0.5-1.0mm Wet cutting, Face turning, continuous cut Recommended insert CNMG 120408 MP TT5100 TaeguTec W fc Men erlMCGrot4>
