33 Каталог TAEGUTEC 2013 Сменные режущие токарные пластины для металлообработки Стр.33

Каталог TAEGUTEC 2013 Indexable turning inserts Стр. 33 0033 ENG Lab2u

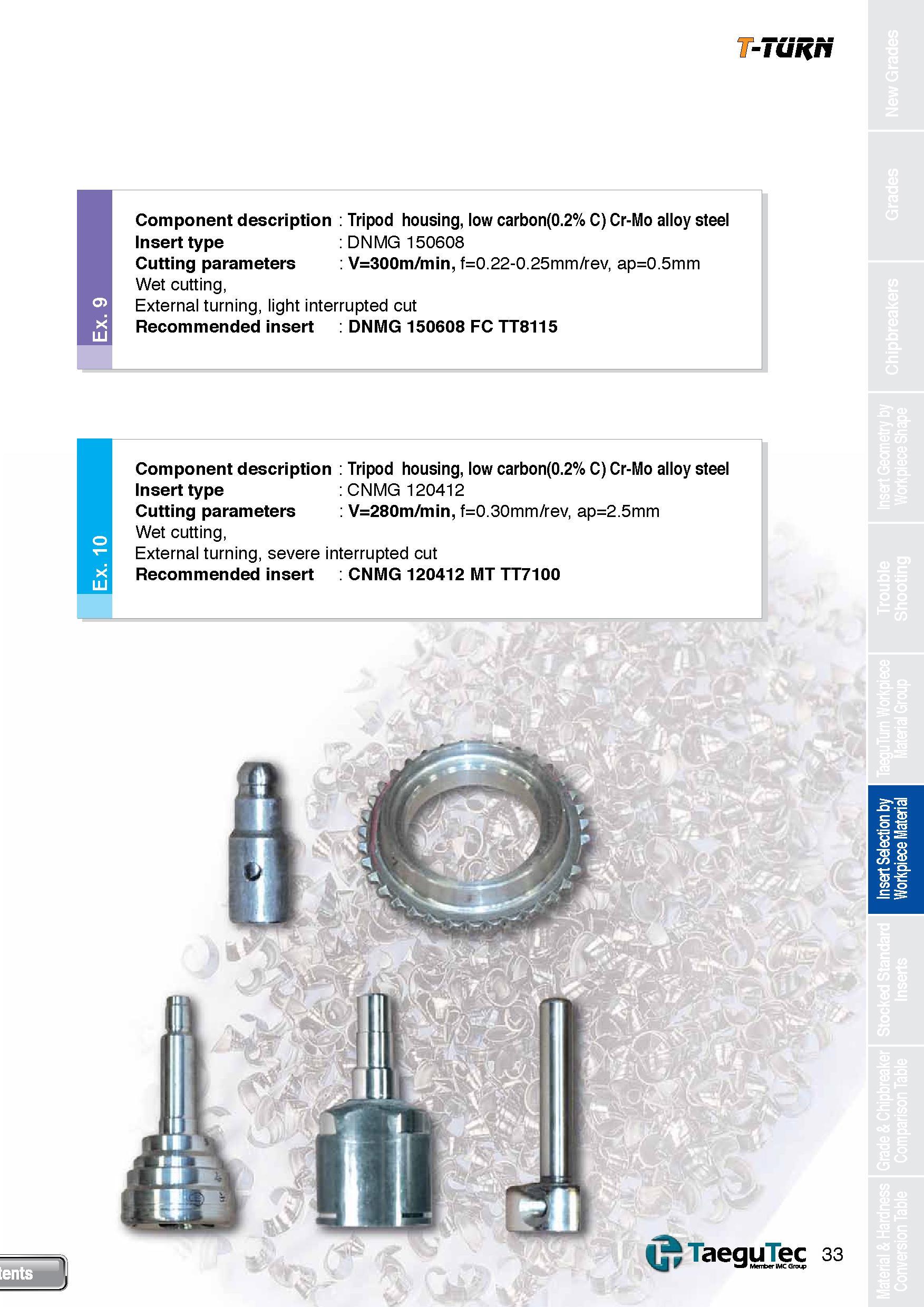

T-TURN Tripod housing, low carbon(0.2% C) Cr-Mo alloy steel DNMG 150608 V=300m/min, f=0.22-0.25mm/rev, ap=0.5mm Component description Insert type Cutting parameters Wet cutting, External turning, light interrupted cut Recommended insert DNMG 150608 FC TT8115 o T >< LD IB Component description Tripod housing, low carbon(0.2% C) Cr-Mo alloy steel Inserttype CNMG 120412 Cutting parameters V=280m/min, f=0.30mm/rev, ap=2.5mm Wet cutting, External turning, severe interrupted cut Recommended insert CNMG 120412 MT TT7100 Insert Selection by Workpiece Material
