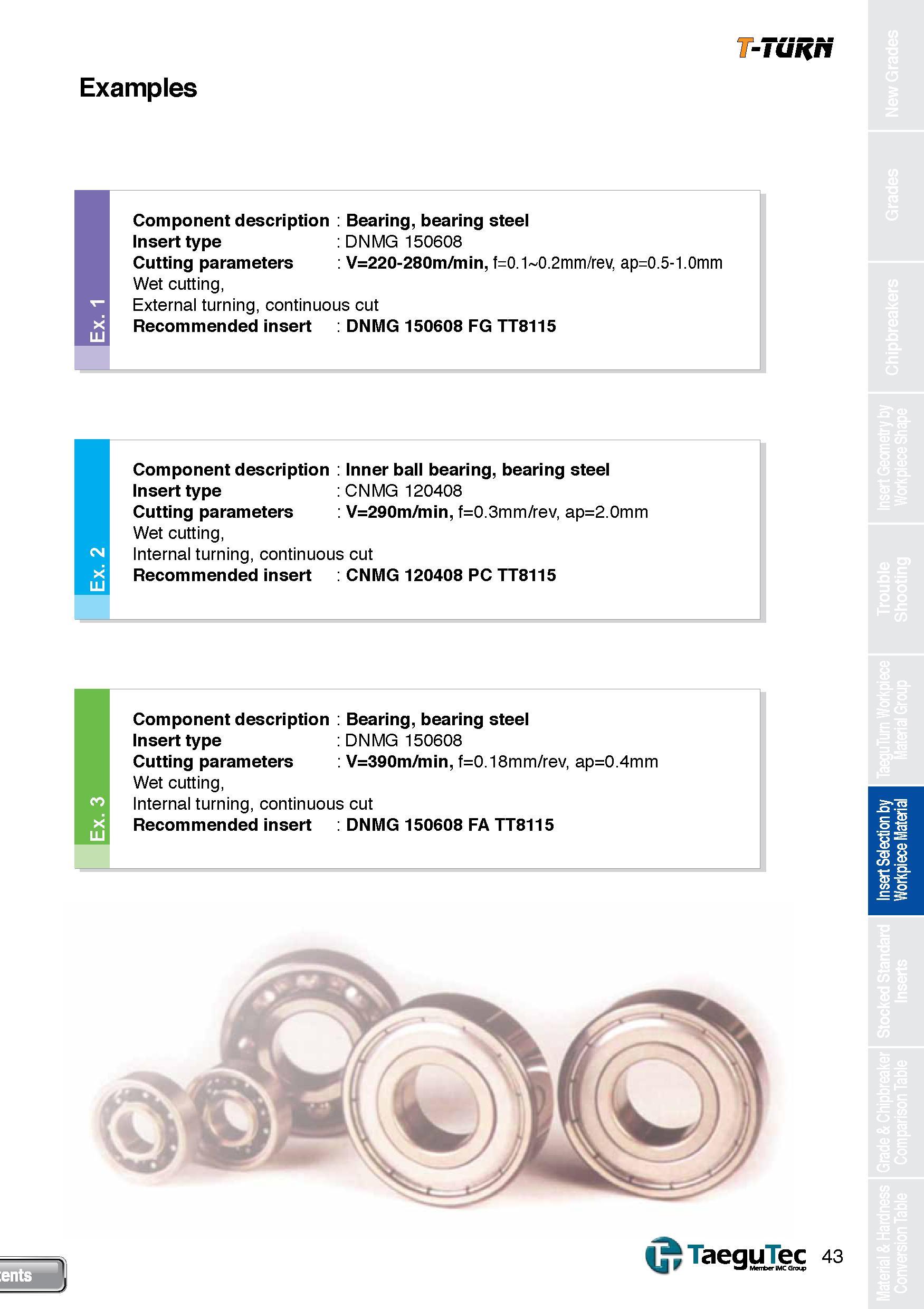

Examples T-TURN I Component description Bearing, bearing steel Insert type DNMG 150608 Cutting parameters V=220-280m/min, f=0.1 0.2mm/rev, ap=0.5-1.0mm Wet cutting, External turning, continuous cut Recommended insert DNMG 150608 FG TT8115 Component description Inner ball bearing, bearing steel Insert type CNMG 120408 Cutting parameters V=290m/min, f=0.3mm/rev, ap=2.0mm Wet cutting, U Internal turning, continuous cut E CNMG 120408 PC TT8115 Component description Bearing, bearing steel Insert type DNMG 150608 Cutting parameters V=390m/min, f=0.18mm/rev, ap=0.4mm Wet cutting, Internal turning, continuous cut Recommended insert DNMG 150608 FA TT8115 U TaequTec 43 W MentjerlMCQron) Insert Selection by Workpiece Material
