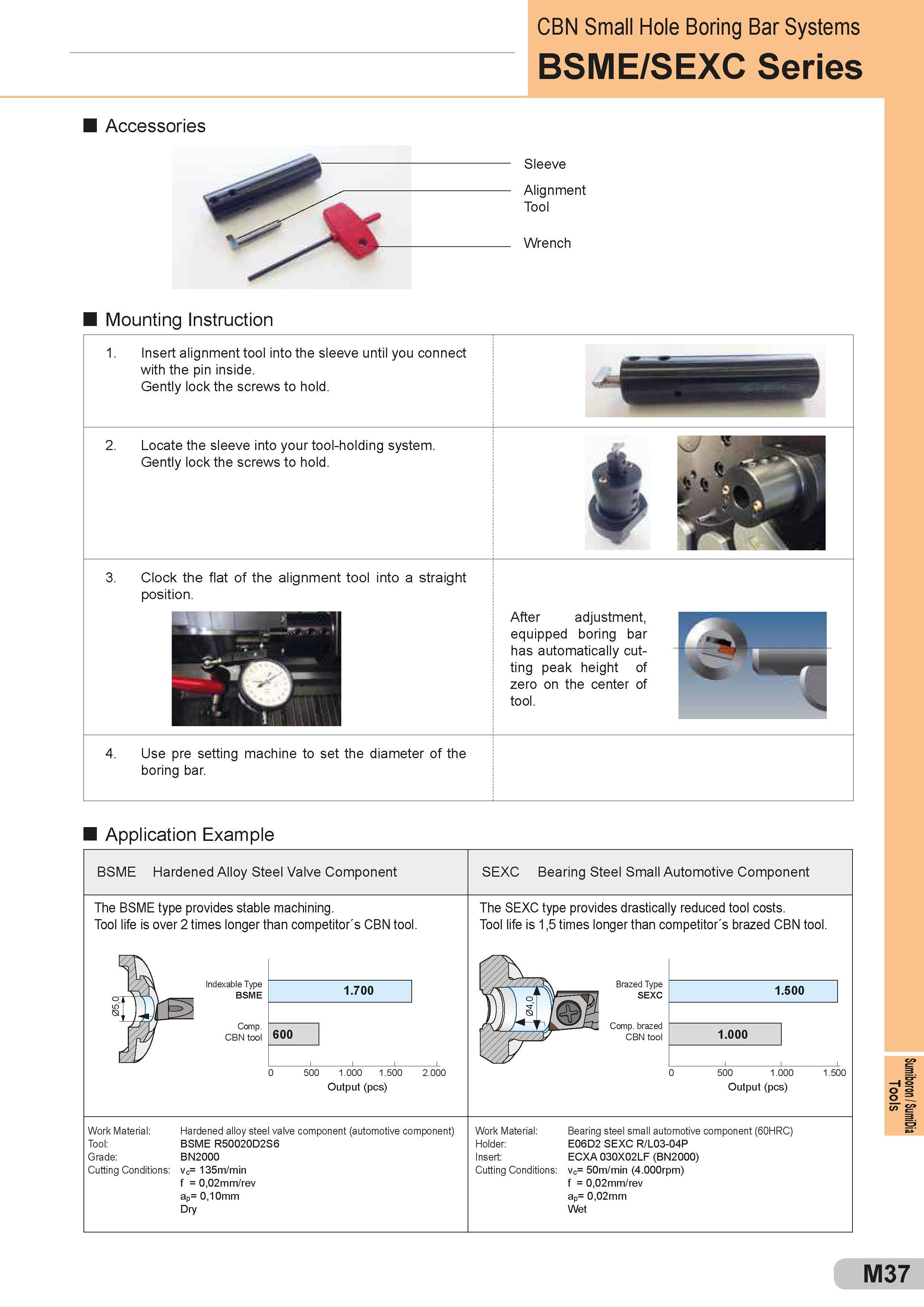

CBN Small Hole Boring Bar Systems BSME/SEXC Series Accessories Sleeve Alignment Tool Wrench Mounting Instruction Insert alignment tool into the sleeve until you connect with the pin inside. Gently lock the screws to hold. Locate the sleeve into your tool-holding system. Gently lock the screws to hold. Clock the flat of the alignment tool into a straight position. £ T . After adjustment, equipped boring bar has automatically cutting peak height of zero on the center of tool. I Use pre setting machine to set the diameter of the boring bar. Application Example BSME Hardened Alloy Steel Valve Component SEXC Bearing Steel Small Automotive Component The BSME type provides stable machining. Tool life is over 2 times longer than competitor's CBN tool. The SEXC type provides drastically reduced tool costs. Tool life is 1,5 times longer than competitor's brazed CBN tool. Output (pcs) Output (pcs) Work Material: Tool: Grade: Cutting Conditions: Hardened alloy steel valve component (automotive component) BSME R50020D2S6 BN2000 vc= 135m/min f = 0,02mm/rev ap= 0,10mm Dry Work Material: Bearing steel small automotive component (60HRC) Holder: E06D2 SEXC R/L03-04P Insert: ECXA 030X02LF (BN2000) Cutting Conditions: vc= 50m/min (4.000rpm) f = 0,02mm/rev ap= 0,02mm Wet M37 Tools
