534 Каталог SUMITOMO 2018 Инструмент металлорежущий Пластины Резцы Фрезы Сверла Стр.M34

Каталог SUMITOMO 2018 Инструмент металлорежущий Стр. M34 0534 Lab2u

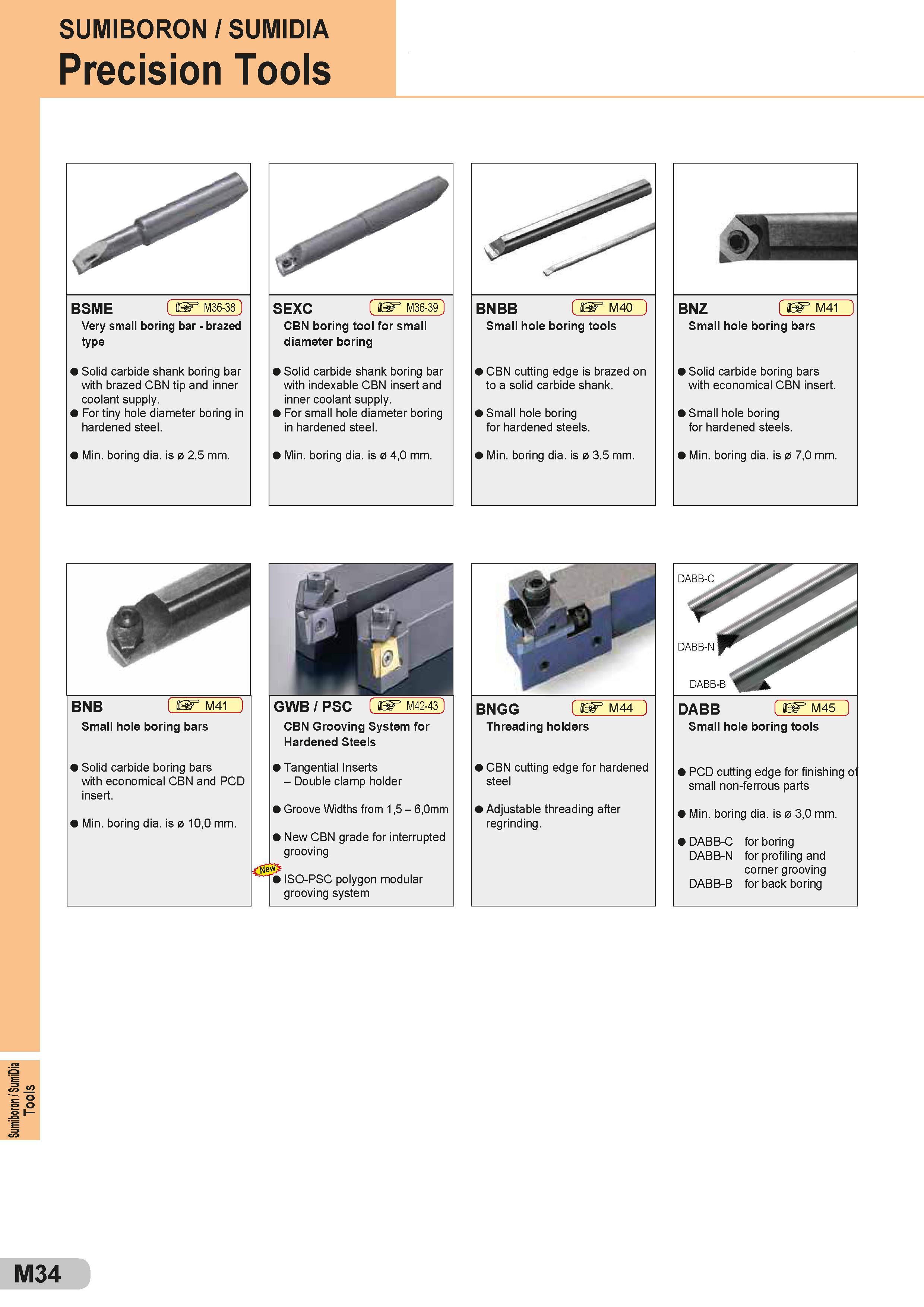

Tools SUMIBORON / SUMIDIA Precision Tools BSME M36-38 Very small boring bar - brazed type Solid carbide shank boring bar with brazed CBN tip and inner coolant supply. For tiny hole diameter boring in hardened steel. Min. boring dia. is 0 2,5 mm. SEXC M36-39 CBN boring tool for small diameter boring Solid carbide shank boring bar with indexable CBN insert and inner coolant supply. For small hole diameter boring in hardened steel. Min. boring dia. is 0 4,0 mm. Small hole boring tools CBN cutting edge is brazed on to a solid carbide shank. Small hole boring for hardened steels. Min. boring dia. is 0 3,5 mm. Small hole boring bars Solid carbide boring bars with economical CBN insert. Small hole boring for hardened steels. Min. boring dia. is 0 7,0 mm. BNB M41 Small hole boring bars Solid carbide boring bars with economical CBN and PCD insert. Min. boring dia. is 0 10,0 mm. GWB / PSC M42-43 CBN Grooving System for Hardened Steels Tangential Inserts - Double clamp holder Groove Widths from 1,5 - 6,0mm New CBN grade for interrupted grooving ISO-PSC polygon modular grooving system Threading holders CBN cutting edge for hardened steel Adjustable threading after regrinding. DABB-B £ DABB M45 Small hole boring tools PCD cutting edge for finishing o small non-ferrous parts Min. boring dia. is 0 3,0 mm. DABB-C for boring DABB-N for profiling and corner grooving DABB-B for back boring M34
