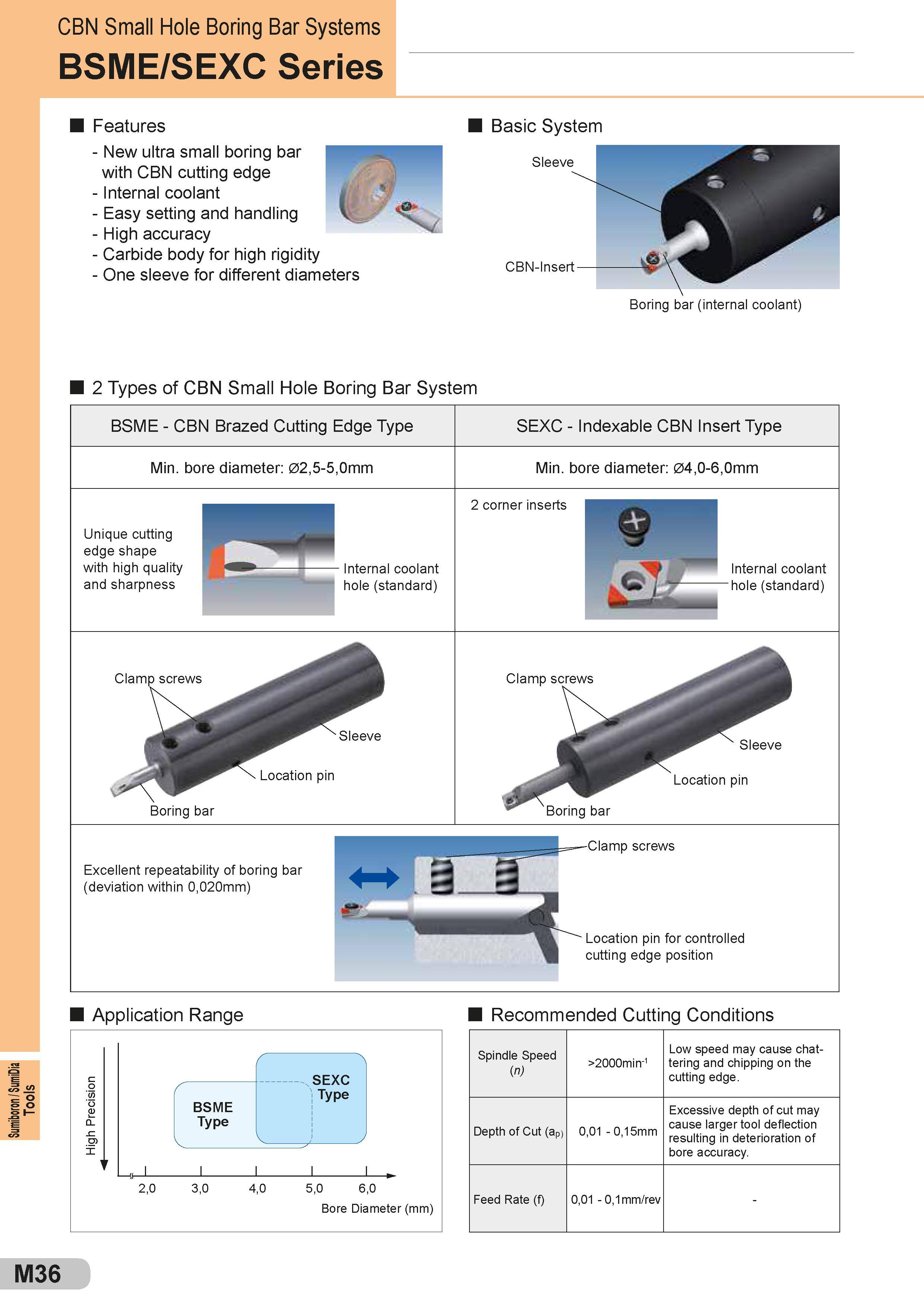

Tools CBN Small Hole Boring Bar Systems BSME/SEXC Series Features - New ultra small boring bar with CBN cutting edge - Internal coolant - Easy setting and handling - High accuracy - Carbide body for high rigidity - One sleeve for different diameters Basic System Boring bar (internal coolant) 2 Types of CBN Small Hole Boring Bar System BSME - CBN Brazed Cutting Edge Type SEXC - Indexable CBN Insert Type Min. bore diameter: 02,5-5,0mm Min. bore diameter: 04,0-6,0mm Unique cutting edge shape with high quality and sharpness 2 corner inserts Internal coolant hole (standard) Internal coolant hole (standard) Clamp screws Clamp screws Location pin Boring bar Sleeve Location pin Boring bar Excellent repeatability of boring bar (deviation within 0,020mm) Clamp screws Location pin for controlled cutting edge position Application Range Recommended Cutting Conditions Spindle Speed (n) >2000min-1 Low speed may cause chattering and chipping on the cutting edge. Depth of Cut (ap) 0,01 - 0,15mm Excessive depth of cut may cause larger tool deflection resulting in deterioration of bore accuracy. Feed Rate (f) 0,01 - 0,1mm/rev - M36
