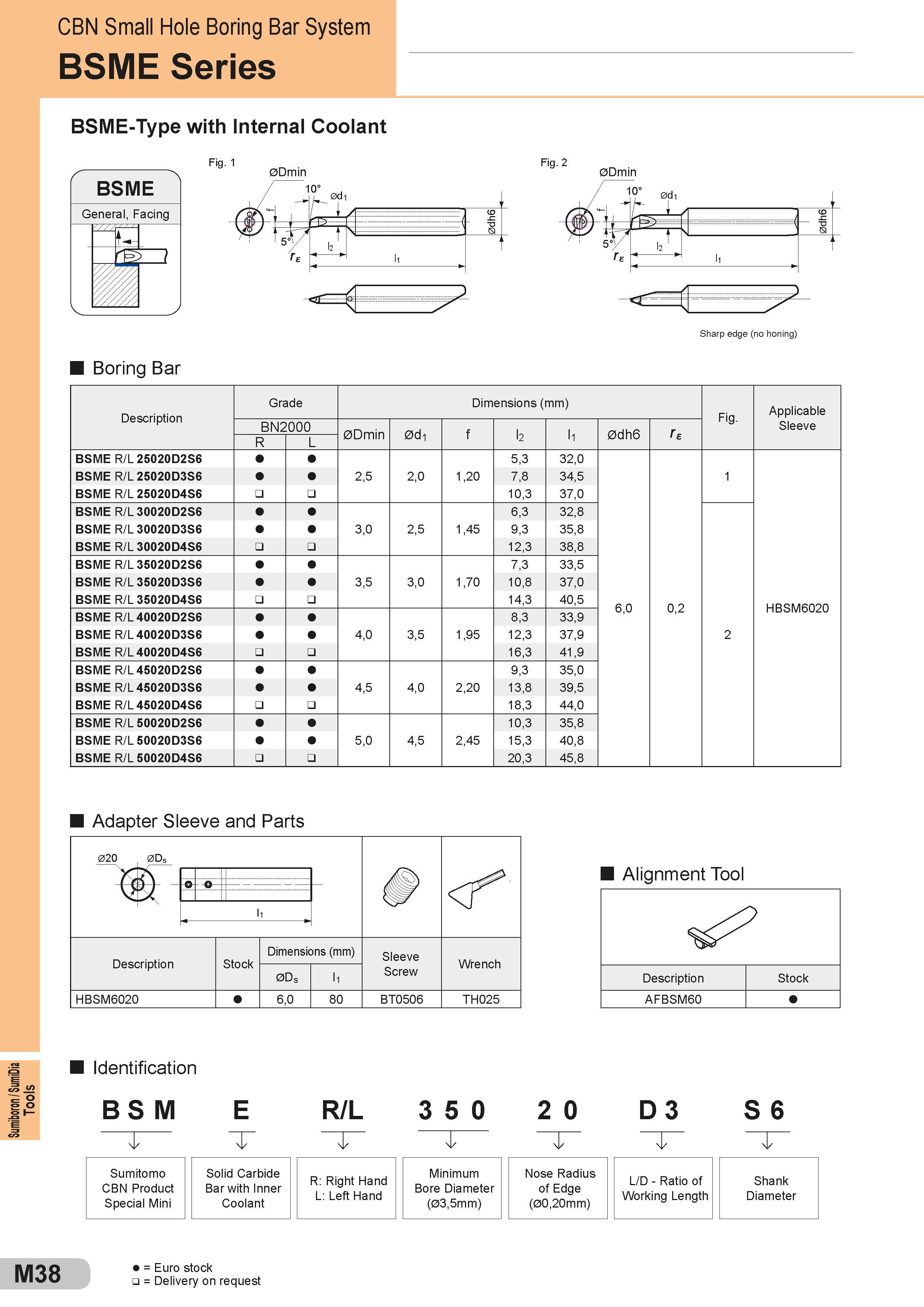

Tools CBN Small Hole Boring Bar System BSME Series BSME-Type with Internal Coolant Fig. 1 0Dmin Fig. 2 0Dmin 10° .10. 0di 2 Sharp edge (no honing) Boring Bar Description Grade Dimensions (mm) Размеры указаны в мм Fig. Applicable BN2000 0Dmin 0di f l2 ll 0dh6 r£ Sleeve R L BSME R/L 25020D2S6 5,3 32,0 BSME R/L 25020D3S6 2,5 2,0 1,20 7,8 34,5 1 BSME R/L 25020D4S6 10,3 37,0 BSME R/L 30020D2S6 6,3 32,8 BSME R/L 30020D3S6 3,0 2,5 1,45 9,3 35,8 BSME R/L 30020D4S6 12,3 38,8 BSME R/L 35020D2S6 7,3 33,5 BSME R/L 35020D3S6 3,5 3,0 1,70 10,8 37,0 BSME R/L 35020D4S6 14,3 40,5 6,0 0,2 HBSM6020 BSME R/L 40020D2S6 8,3 33,9 BSME R/L 40020D3S6 4,0 3,5 1,95 12,3 37,9 2 BSME R/L 40020D4S6 16,3 41,9 BSME R/L 45020D2S6 9,3 35,0 BSME R/L 45020D3S6 4,5 4,0 2,20 13,8 39,5 BSME R/L 45020D4S6 18,3 44,0 BSME R/L 50020D2S6 10,3 35,8 BSME R/L 50020D3S6 5,0 4,5 2,45 15,3 40,8 BSME R/L 50020D4S6 20,3 45,8 Adapter Sleeve and Parts Alignment Tool Identification BS M Sumitomo CBN Product Special Mini E Solid Carbide Bar with Inner Coolant R/L r R: Right Hand L: Left Hand 3 5 0 2 0 T" Minimum Bore Diameter (03,5mm) T Nose Radius of Edge (00,20mm) D 3 L/D - Ratio of Working Length Shank Diameter M38 = Euro stock = Delivery on request
