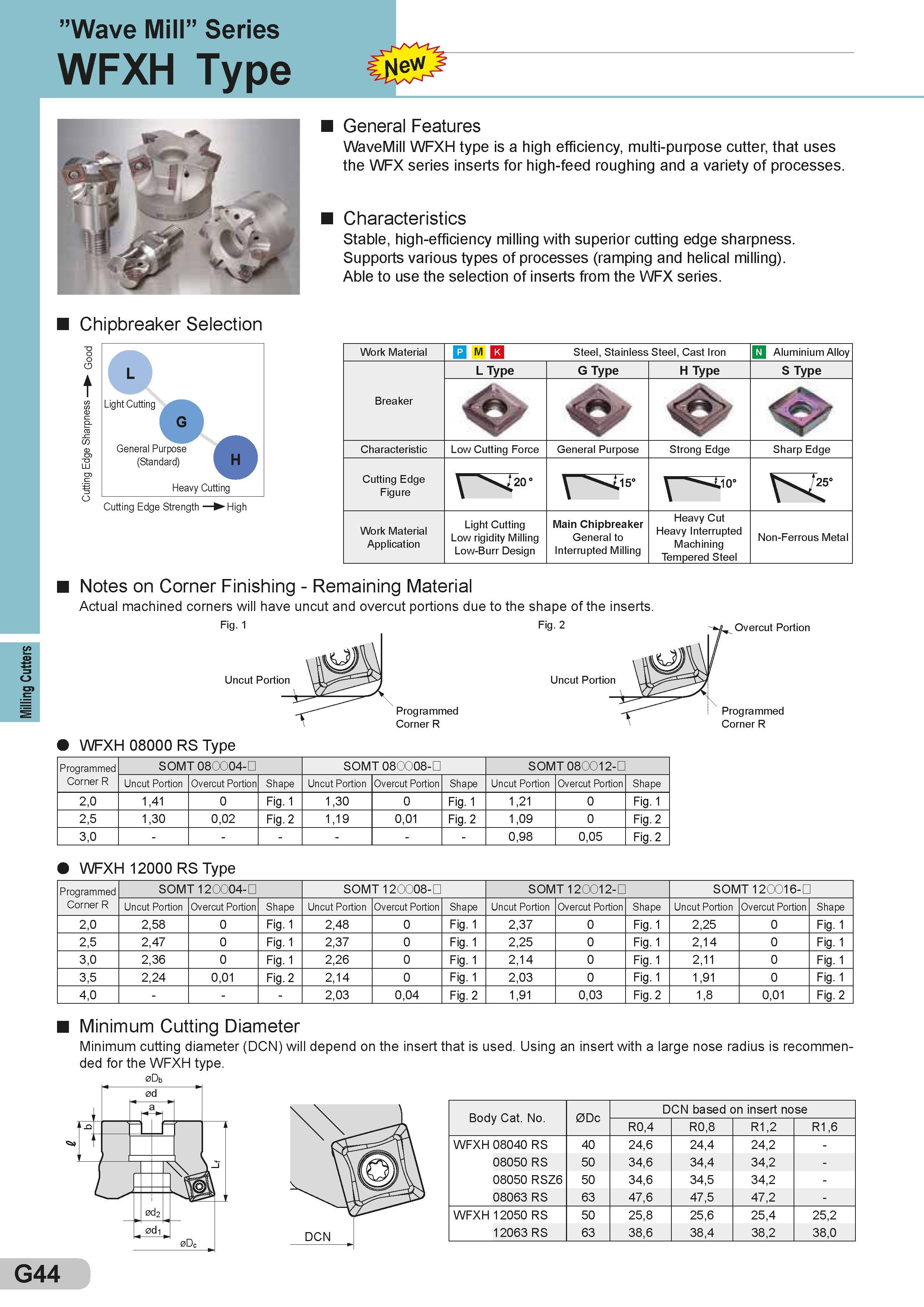

Milling Cutters ”Wave Mill” Series WFXH Type General Features WaveMill WFXH type is a high efficiency, multi-purpose cutter, that uses the WFX series inserts for high-feed roughing and a variety of processes. Characteristics Stable, high-efficiency milling with superior cutting edge sharpness. Supports various types of processes (ramping and helical milling). Able to use the selection of inserts from the WFX series. Chipbreaker Selection Work Material p M K Steel, Stainless Steel, Cast Iron N Aluminium Alloy Breaker L Type G Type H Type S Type Characteristic Low Cutting Force General Purpose Strong Edge Sharp Edge Cutting Edge Figure \ 20" "<15" Work Material Application Light Cutting Low rigidity Milling Low-Burr Design Main Chipbreaker General to Interrupted Milling Heavy Cut Heavy Interrupted Machining Tempered Steel Non-Ferrous Metal Notes on Corner Finishing - Remaining Material Actual machined corners will have uncut and overcut portions due to the shape of the inserts Fig. 1 WFXH 08000 RS Type Programmed Corner R SOMT 08 OO 04- SOMT 08 OO 08- SOMT 080012-D Uncut Portion Overcut Portion Shape Uncut Portion Overcut Portion Shape Uncut Portion Overcut Portion Shape 2,0 1,41 0 Fig. 1 1,30 0 Fig. 1 1,21 0 Fig. 1 2,5 1,30 0,02 Fig. 2 1,19 0,01 Fig. 2 1,09 0 Fig. 2 3,0 - - - - - - 0,98 0,05 Fig. 2 WFXH 12000 RS Type Programmed Corner R SOMT 120004- SOMT 120008- SOMT 120012-D SOMT 120016- Uncut Portion Overcut Portion Shape Uncut Portion Overcut Portion Shape Uncut Portion Overcut Portion Shape Uncut Portion Overcut Portion Shape 2,0 2,58 0 Fig. 1 2,48 0 Fig. 1 2,37 0 Fig. 1 2,25 0 Fig. 1 2,5 2,47 0 Fig. 1 2,37 0 Fig. 1 2,25 0 Fig. 1 2,14 0 Fig. 1 3,0 2,36 0 Fig. 1 2,26 0 Fig. 1 2,14 0 Fig. 1 2,11 0 Fig. 1 3,5 2,24 0,01 Fig. 2 2,14 0 Fig. 1 2,03 0 Fig. 1 1,91 0 Fig. 1 4,0 - - - 2,03 0,04 Fig. 2 1,91 0,03 Fig. 2 1,8 0,01 Fig. 2 Minimum Cutting Diameter Minimum cutting diameter (DCN) will depend on the insert that is used. Using an insert with a large nose radius is recommended for the WFXH type. 0Db Body Cat. No. 0Dc DCN based on insert nose R0,4 R0,8 R1,2 R1,6 WFXH 08040 RS 40 24,6 24,4 24,2 - 08050 RS 50 34,6 34,4 34,2 - 08050 RSZ6 50 34,6 34,5 34,2 - 08063 RS 63 47,6 47,5 47,2 - WFXH 12050 RS 50 25,8 25,6 25,4 25,2 12063 RS 63 38,6 38,4 38,2 38,0 G44
