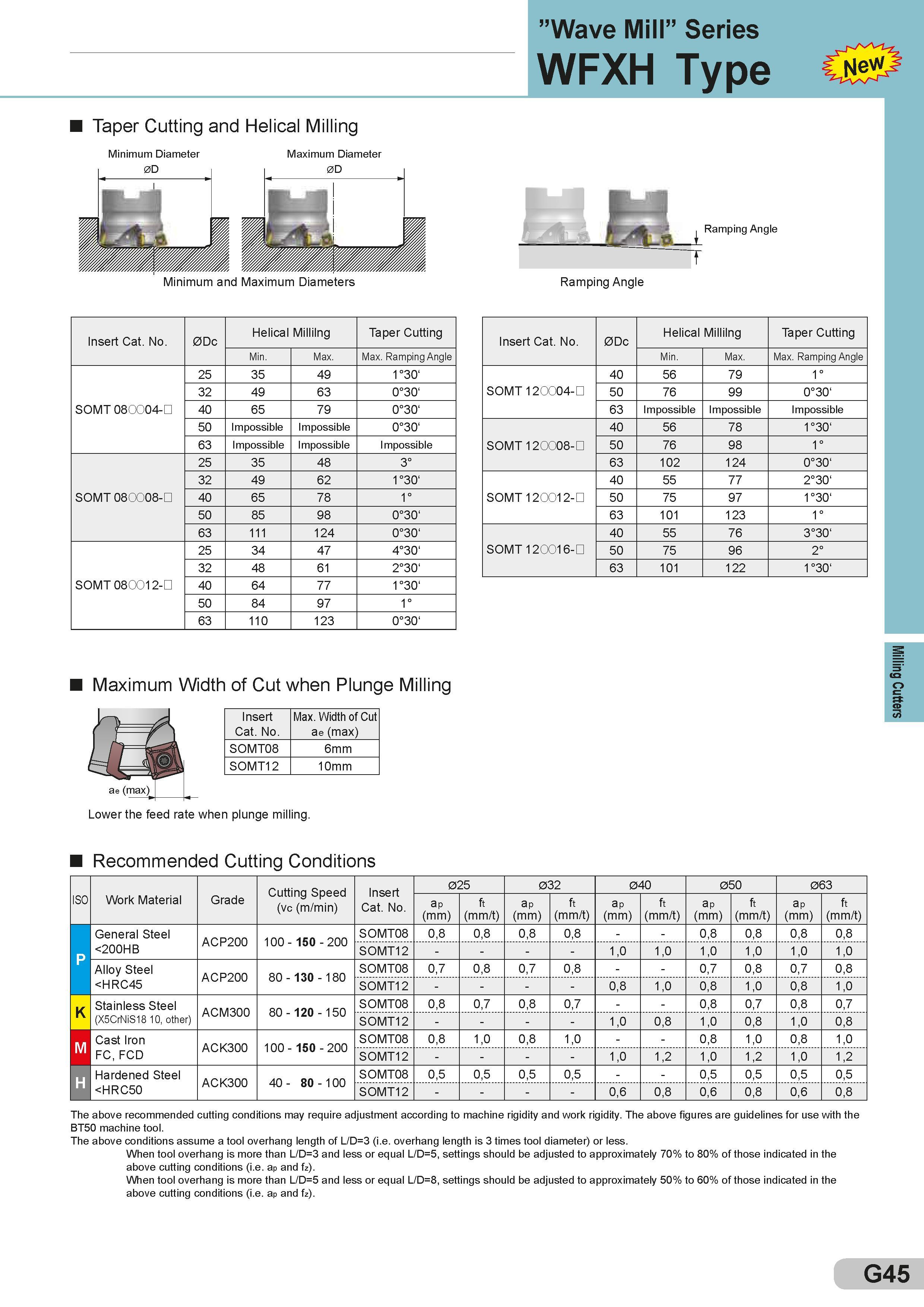

”Wave Mill” Series WFXH Type Taper Cutting and Helical Milling Minimum Diameter 0D Maximum Diameter Ramping Angle Minimum and Maximum Diameters Ramping Angle Insert Cat. No. 0Dc Helical Millilng Taper Cutting Min. Max. Max. Ramping Angle SOMT 08 OO 04-0 25 35 49 1°30‘ 32 49 63 0°30‘ 40 65 79 0°30‘ 50 Impossible Impossible 0°30‘ 63 Impossible Impossible Impossible SOMT 08 OO 08-0 25 35 48 3° 32 49 62 1°30‘ 40 65 78 1° 50 85 98 0°30‘ 63 111 124 0°30‘ SOMT 080012-D 25 34 47 4°30‘ 32 48 61 2°30‘ 40 64 77 1°30‘ 50 84 97 1° 63 110 123 0°30‘ Insert Cat. No. 0Dc Helical Millilng Taper Cutting Min. Max. Max. Ramping Angle SOMT 120004-D 40 56 79 1° 50 76 99 0°30‘ 63 Impossible Impossible Impossible SOMT 120008-D 40 56 78 1°30‘ 50 76 98 1° 63 102 124 0°30‘ SOMT 120012-D 40 55 77 2°30‘ 50 75 97 1°30‘ 63 101 123 1° SOMT 120016-D 40 55 76 3°30‘ 50 75 96 2° 63 101 122 1°30‘ Maximum Width of Cut when Plunge Milling Insert Cat. No. Max. Width of Cut ae (max) SOMT08 6mm SOMT12 10mm Lower the feed rate when plunge milling. Recommended Cutting Conditions ISO Work Material Обрабатываемый материал Grade Cutting Speed (vc (m/min) Insert Cat. No. 025 032 040 050 063 ap (mm) ft (mm/t) ap (mm) ft (mm/t) ap (mm) ft (mm/t) ap (mm) ft (mm/t) ap (mm) ft (mm/t) General Steel <200HB ACP200 100 - 150 - 200 SOMT08 0,8 0,8 0,8 0,8 - - 0,8 0,8 0,8 0,8 SOMT12 - - - - 1,0 1,0 1,0 1,0 1,0 1,0 p P Alloy Steel
