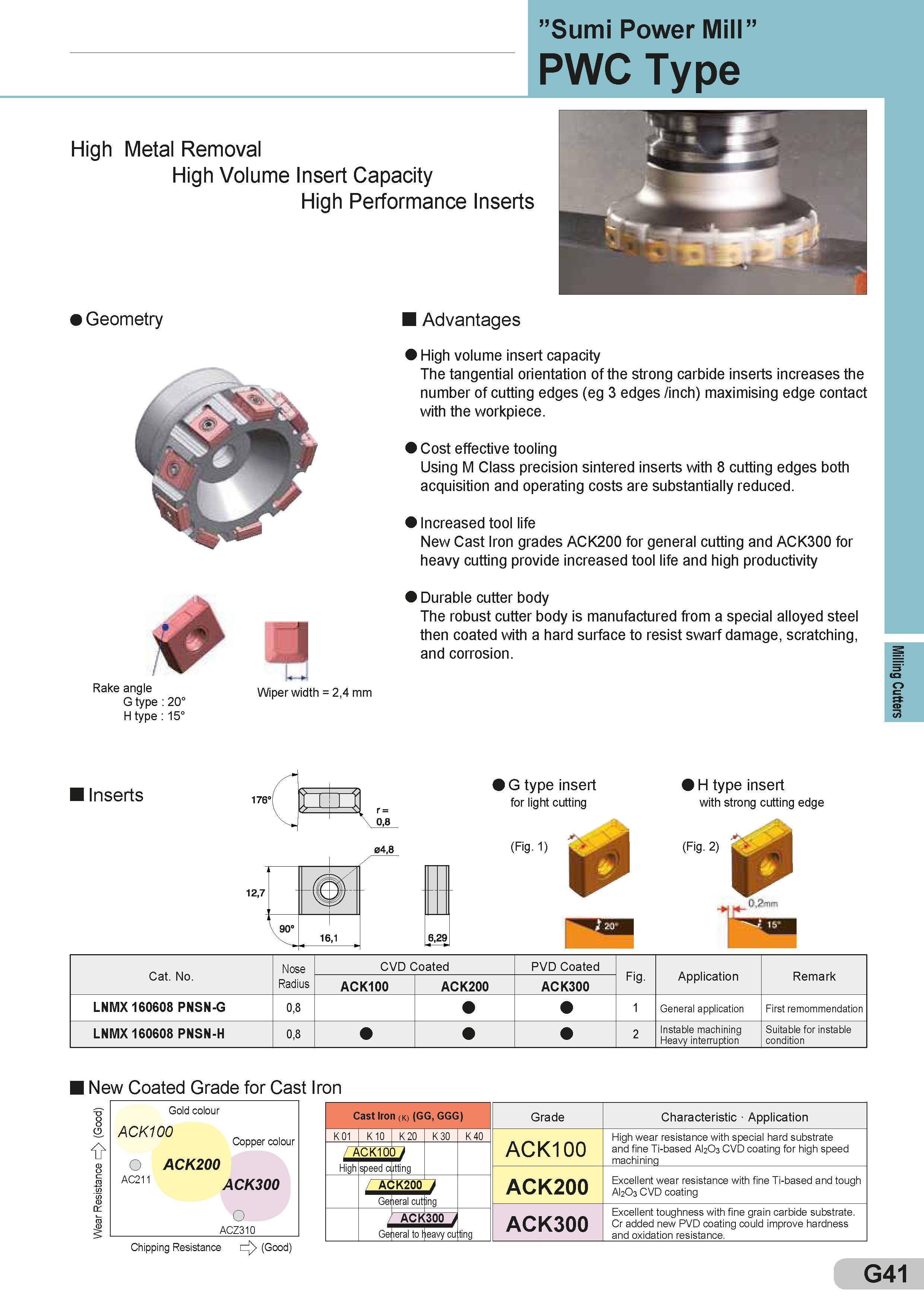

”Sumi Power Mill PWC Type High Metal Removal High Volume Insert Capacity High Performance Inserts Geometry & Rake angle G type : 20° H type : 15° u Wiper width = 2,4 mm Advantages High volume insert capacity The tangential orientation of the strong carbide inserts increases the number of cutting edges (eg 3 edges /inch) maximising edge contact with the workpiece. Cost effective tooling Using M Class precision sintered inserts with 8 cutting edges both acquisition and operating costs are substantially reduced. Increased tool life New Cast Iron grades ACK200 for general cutting and ACK300 for heavy cutting provide increased tool life and high productivity Durable cutter body The robust cutter body is manufactured from a special alloyed steel then coated with a hard surface to resist swarf damage, scratching, and corrosion. Inserts 1 i r r = 0,8 04,8 12,7 90° 16,1 G type insert for light cutting (Fig. 1) H type insert with strong cutting edge 6,29 (Fig. 2) Cat. No. Nose Radius CVD Coated PVD Coated Fig. Application Remark ACK100 ACK200 ACK300 LNMX 160608 PNSN-G 0,8 1 General application First remommendation LNMX 160608 PNSN-H 0,8 2 Instable machining Heavy interruption Suitable for instable condition New Coated Grade for Cast Iron Chipping Resistance (Good) Cast Iron (K) (GG, GGG) Grade Characteristic Application K 01 K 10 K 20 K 30 K 40 ACK100 High wear resistance with special hard substrate and fine Ti-based AI2O3 CVD coating for high speed machininq LA CK10 V High speed cutting ACK200 Excellent wear resistance with fine Ti-based and tough Al2O3 CVD coating /AC Ge :k200 neral cut J ing i Ge er h K 300 / eavy cu ting ACK300 Excellent toughness with fine grain carbide substrate. Cr added new PVD coating could improve hardness and oxidation resistance. G41 Milling Cutters
