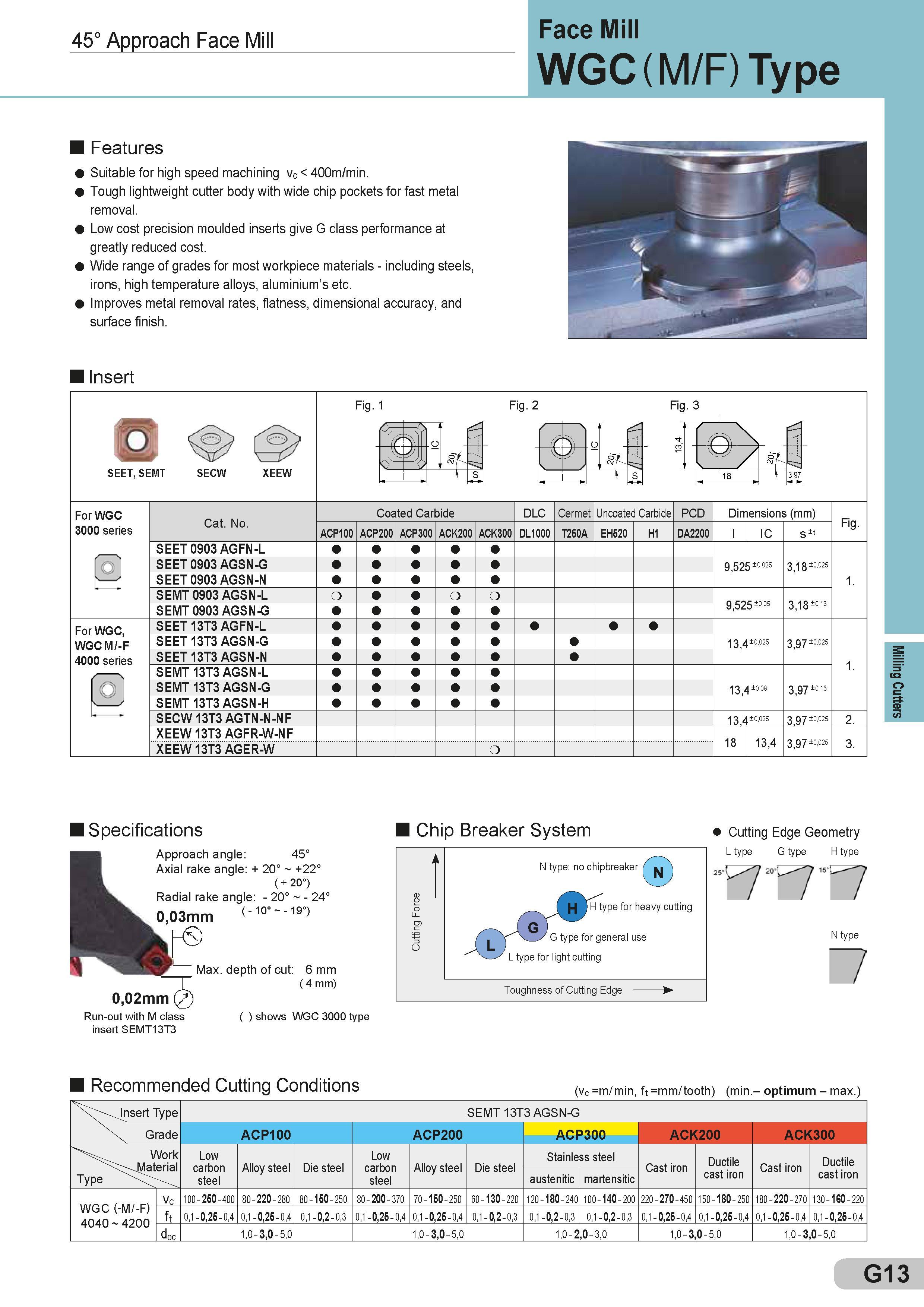

45° Approach Face Mill Face Mill WGC (M/F) Type Features Suitable for high speed machining vc < 400m/min. Tough lightweight cutter body with wide chip pockets for fast metal removal. Low cost precision moulded inserts give G class performance at greatly reduced cost. Wide range of grades for most workpiece materials - including steels, irons, high temperature alloys, aluminium's etc. Improves metal removal rates, flatness, dimensional accuracy, and surface finish. Insert SEET, SEMT SECW XEEW Fig. 1 Fig. 2 Fig. 3 7 \(C \ > J> J l £ s f \ O 8 l S a / f k\ \ 18 3,97 Cat. No. Coated Carbide DLC Cermet Uncoated Carbide PCD Dimensions (mm) Размеры указаны в мм Fig. ACP100 ACP200 ACP300 ACK200 ACK300 DL1000 T250A EH520 H1 DA2200 l IC s ±' SEET 0903 AGFN-L SEET 0903 AGSN-G SEET 0903 AGSN-N 9,525 ±0,025 3,18 ±0,025 1. SEMT 0903 AGSN-L SEMT 0903 AGSN-G 9,525 ±°,°5 3,18 ±0,13 SEET 13T3 AGFN-L SEET 13T3 AGSN-G 13,4 ±0,025 3,97 ±0,025 SEET 13T3 AGSN-N 1. SEMT 13T3 AGSN-L SEMT 13T3 AGSN-G SEMT 13T3 AGSN-H 13,4 ±0,08 3,97 ±0,13 SECW 13T3 AGTN-N-NF 13 4 ±0,025 3 97 ±0,025 2. XEEW 13T3 AGFR-W-NF 18 13,4 3,97 ±0,025 3. XEEW 13T3 AGER-W O For WGC 3000 series For WGC, WGCM/-F 4000 series S Specifications 0,02mm (/) Run-out with M class insert SEMT13T3 Approach angle: 45° Axial rake angle: + 20° +22° ( + 20°) Radial rake angle: - 20° - 24° ( - 10° - 19°) Max. depth of cut: 6 mm ( 4 mm) ( ) shows WGC 3000 type Chip Breaker System Cutting Edge Geometry L type G type H type N type Recommended Cutting Conditions (vc =m/min, ft =mm/tooth) (min.- optimum - max.) \\ Insert Type SEMT 13T3 AGSN-G Grade ACP100 ACP200 ACP300 ACK200 ACK300 Work \\Material Type Low carbon steel Alloy steel Die steel Low carbon steel Alloy steel Die steel Stainless steel Cast iron Ductile cast iron Cast iron Ductile cast iron austenitic martensitic WGC (-M/-F) 4040 4200 vc 100 - 250 - 400 80 - 220 - 280 80 - 150 - 250 80 - 200 - 370 70 - 150 - 250 60 - 130 - 220 120 - 180 - 240 100 - 140 - 200 220 - 270 -450 150 - 180 - 250 180 - 220 - 270 130 - 160 - 220 ft 0,1 - 0,25 - 0,4 0,1- 0,25 - 0,4 0,1- 0,2 - 0,3 0,1 - 0,25 - 0,4 0,1 - 0,25 - 0,4 0,1 - 0,2 - 0,3 0,1 - 0,2 - 0,3 0,1 - 0,2 - 0,3 0,1 - 0,25 - 0,4 0,1 - 0,25 - 0,4 0,1 - 0,25 - 0,4 0,1 - 0,25 - 0,4 doc 1,0 - 3,0 - 5,0 1,0 - 3,0 - 5,0 1,0 - 2,0 - 3,0 1,0 - 3,0 - 5,0 1,0 - 3,0 - 5,0 G13 Milling Cutters
