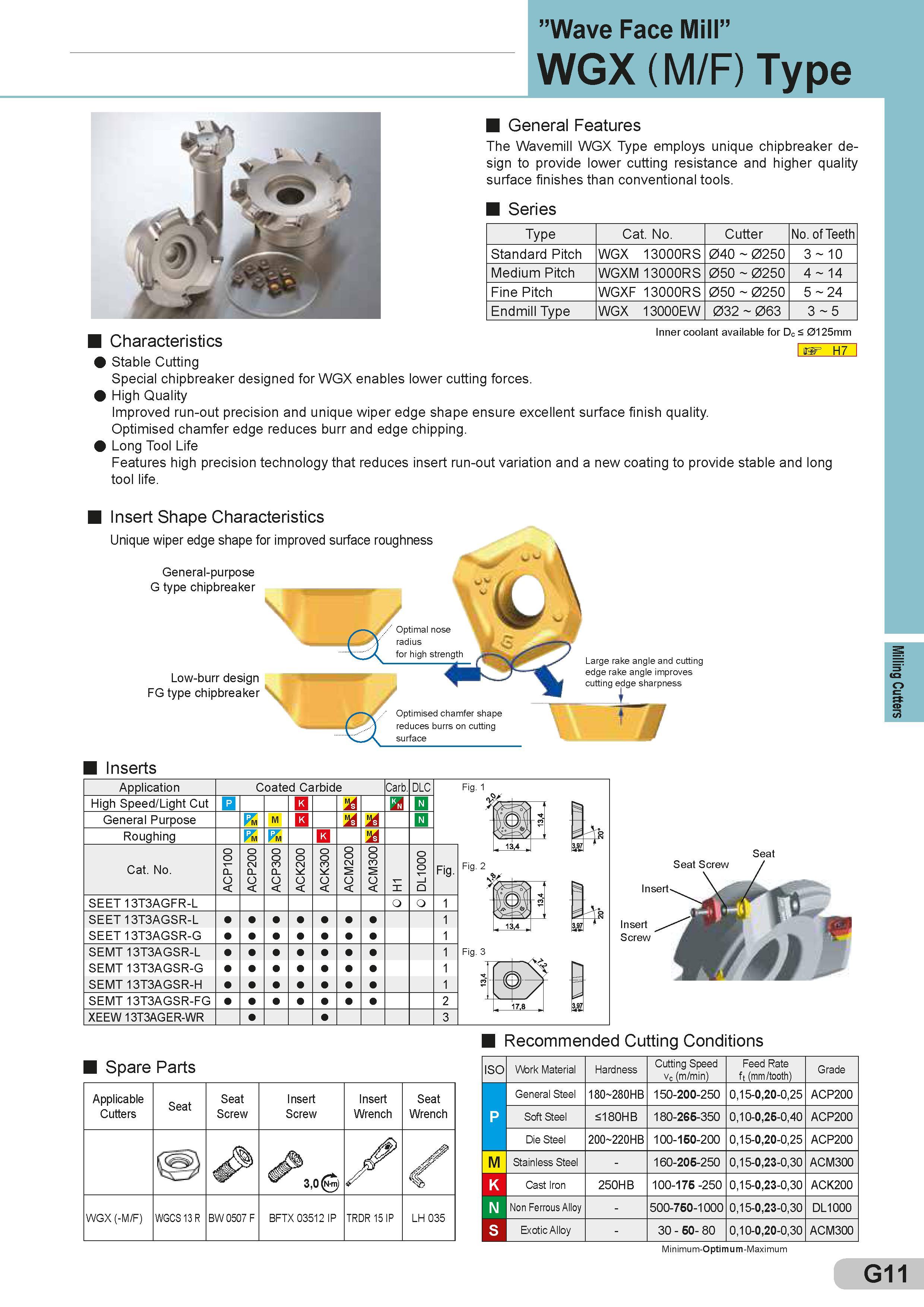

”Wave Face Mill” WGX (M/F) Type General Features The Wavemill WGX Type employs unique chipbreaker design to provide lower cutting resistance and higher quality surface finishes than conventional tools. Series Type Cat. No. Cutter No. of Teeth Количество режущих зубьев Standard Pitch WGX 13000RS 040 0250 3 10 Medium Pitch WGXM 13000RS 050 0250 4 14 Fine Pitch WGXF 13000RS 050 0250 5 24 Endmill Type WGX 13000EW 032 063 3 5 H7 . , . Inner coolant available for Dc £ 0125mm Characteristics Stable Cutting Special chipbreaker designed for WGX enables lower cutting forces. High Quality Improved run-out precision and unique wiper edge shape ensure excellent surface finish quality. Optimised chamfer edge reduces burr and edge chipping. Long Tool Life Features high precision technology that reduces insert run-out variation and a new coating to provide stable and long tool life. Insert Shape Characteristics Unique wiper edge shape for improved surface roughness General-purpose G type chipbreaker Low-burr design FG type chipbreaker . Large rake angle and cutting edge rake angle improves cutting edge sharpness Optimised chamfer shape reduces burrs on cutting surface Inserts Application Coated Carbide Carb. DLC Fig. 1 i High Speed/Light Cut IP M ms II n 0 't ; W rb p, po General Purpose Pm M k MS1 MS n Roughing Pm Pm 0 m3 1 Cat. No. ACP100 ACP200 ACP300 ACK200 ACK300 ACM200 ACM300 i DL1000 Fig. Fig. 2 > i; 1,4 „ ; SEET 13T3AGFR-L 1 n 5 SEET 13T3AGSR-L 1 s“ t A 3.97 PP SEET 13T3AGSR-G 1 SEMT 13T3AGSR-L 1 Fig. 3 SEMT 13T3AGSR-G 1 CN w SEMT 13T3AGSR-H 1 " ZA SEMT 13T3AGSR-FG 2 XEEW 13T3AGER-WR 3 U J Spare Parts Запасные части Sumitomo и комплектующие Applicable Cutters Seat Seat Screw Insert Screw Insert Wrench Seat Wrench 3,0 (N-m) X J WGX (-M/F) WGCS 13 R BW 0507 F BFTX03512 IP TRDR 15 IP LH 035 Recommended Cutting Conditions NSO Work Material Hardness Cutting Speed vc (m/min) Feed Rate ft (mm/tooth) Grade General Steel 180 280HB 150-200-250 0,15-0,20-0,25 ACP200 P Soft Steel £180HB 180-265-350 0,10-0,25-0,40 ACP200 Die Steel 200 220HB 100-150-200 0,15-0,20-0,25 ACP200 m Stainless Steel - 160-205-250 0,15-0,23-0,30 ACM300 K Cast Iron Чугун 250HB 100-175 -250 0,15-0,23-0,30 ACK200 N Non Ferrous Alloy - 500-750-1000 0,15-0,23-0,30 DL1000 S Exotic Alloy - 30 - 50- 80 0,10-0,20-0,30 ACM300 Minimum-Optimum-Maximum G11 Milling Cutters
